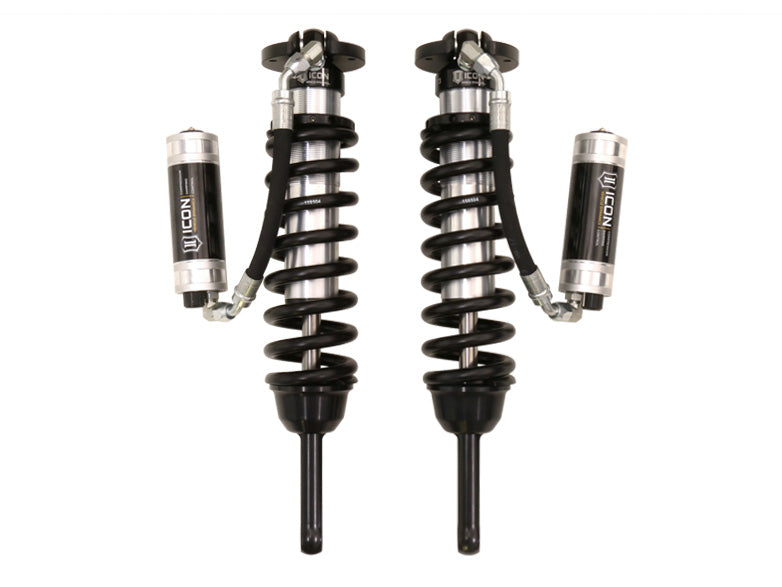

07-09 FJ Cruiser 03-09 4Runner 03-09 GX Ext Travel CDCV Coilover Kit Icon Vehicle Dynamics

07-09 FJ Cruiser 03-09 4Runner 03-09 GX Ext Travel CDCV Coilover Kit Icon Vehicle Dynamics

Awaiting stock, shipping soon
$2,215.15
$2,215.15 $2,325.91
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5 Inch of lift height adjustability for use of larger, more aggressive wheel and tire combinations.

ICON's larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.

The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers.

Features and Benefits:
  • When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Toyota or Lexus SUV.
  • Adjustable coilovers yield 0-3.5 Inch of front lift height
  • Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
  • Extended Travel length requires installation of aftermarket front upper control arms
  • Superior low speed control reduces body roll and increases on-road stability
  • External reservoir to attain cooler operating temperatures during extended off-road use
  • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • High quality ICON-engineered coil springs guaranteed for life against sagging or breaking
  • Corrosion resistant CAD plated shock body with 7/8 Inch shaft
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
  • Bolt-in design makes for an easy install into OEM shock location
Details
  • Material: Steel, Aluminum
  • Active Or Passive Suspension: Passive
  • Adjustable Compression: Yes
  • Adjustable Damping: Yes
  • Adjustable Rebound: No
  • Adjustable Ride Height: Yes
  • Assembled: Yes
  • Body Diameter: 2.5 Inch
  • Coil Over Springs Included: Yes
  • Compressed Length: 17.42
  • Cylinder Color: Silver
  • Cylinder Finish: Cadmium Plated
  • Cylinder Material: Steel
  • Damping Adjustment Type: Manual
  • Damping Type: Oil
  • Dust Shield Included: No
  • Extended Length: 22.57
  • Front Spring Rate: 650 Inch
  • Gas Charged: Yes
  • Grade Type: Performance
  • Includes Bump Stop: No
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Eyelet
  • Maximum Lift: 3.5 Inch
  • Maximum Ride Height Raising Distance: 3.5
  • Minimum Lift: 0.0 Inch
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
  • Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset
  • Remote Reservoir: Yes
  • Reservoir Style: Remote
  • Self Leveling: No
  • Service Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench, 611067 - Tacoma/FJ Cruiser 4RNR Lower Co Brg/Spcr Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 611019 - Coilover Hardware Kit Pair, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 252003 - Seal Install Tool 2.5/3.0
  • Shaft Diameter: 0.875
  • Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Center Of Eylet
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate: 650.0
  • Spring Rate Type: Linear
  • Travel Length: 5.16
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
  • Add On Part: 252012 - -4 To -10 Hose Shield Kit, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25)
