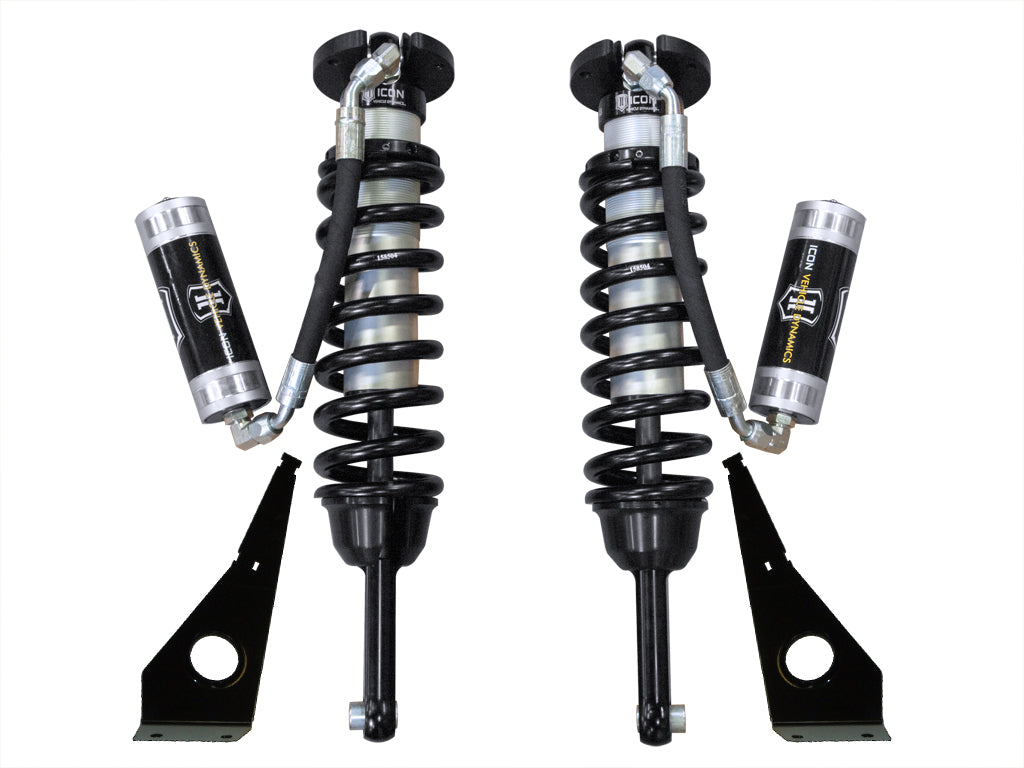

07-09 FJ Cruiser 03-09 4Runner 2.5 VS RR Coilover Kit Icon Vehicle Dynamics

07-09 FJ Cruiser 03-09 4Runner 2.5 VS RR Coilover Kit Icon Vehicle Dynamics

Awaiting stock, shipping soon
$1,871.95
$1,871.95 $1,965.55
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease.

They increase suspension travel and dramatically increase the capabilities of your FJ Cruiser or 4Runner's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock.

Features and Benefits:
  • Adjustable ride height from 0 inch - 3 Inch
  • Race shock piston with flutter stack compression valving
  • Kit Includes Sway bar relocation brackets
  • Kit also Includes Reservoir Mounting Brackets
  • Cad-plated threaded body / Extreme Weather Plating Option Available
  • Billet aluminum upper mount
  • 5/8 Inch PTFE-lined spherical bearing
  • Completely re-buildable
  • Hose Length Optimized for Increased Fluid Transfer
  • Mounting Bracket Orients Reservoir for Optimum Tire Clearance
  • External Reservoir Ensures Maximum Cooling
  • Chrome-silicon spring
  • 250 PSI nitrogen-charged internal reservoir
Details
  • Material: Aluminum, Steel
  • Active Or Passive Suspension: Passive
  • Adjustable Compression: No
  • Adjustable Damping: No
  • Adjustable Rebound: No
  • Adjustable Ride Height: Yes
  • Assembled: Yes
  • Body Diameter: 2.5 Inch
  • Coil Over Springs Included: Yes
  • Compressed Length: 17.42
  • Cylinder Color: Silver
  • Cylinder Finish: Cadmium Plated
  • Damping Type: Oil
  • Dust Shield Included: No
  • Extended Length: 22.17
  • Front Spring Rate: 650 Inch
  • Gas Charged: Yes
  • Grade Type: Performance
  • Includes Bump Stop: No
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Eyelet
  • Maximum Lift: 3.5 Inch
  • Maximum Ride Height Raising Distance: 3.5
  • Minimum Lift: 0.0 Inch
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
  • Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
  • Remote Reservoir: Yes
  • Reservoir Style: Remote
  • Self Leveling: No
  • Service Parts: 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 611019 - Coilover Hardware Kit Pair, 254100G - 1 Gallon Icon Performance Shock Oil, 252001 - 2.5 Fixed Spanner Wrench, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252003 - Seal Install Tool 2.5/3.0, 611067 - Tacoma/FJ Cruiser 4RNR Lower Co Brg/Spcr Kit
  • Shaft Diameter: 0.875
  • Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Center Of Eylet
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate Type: Linear
  • Travel Length: 4.76
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
  • Add On Part: 252012 - -4 To -10 Hose Shield Kit, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25)
