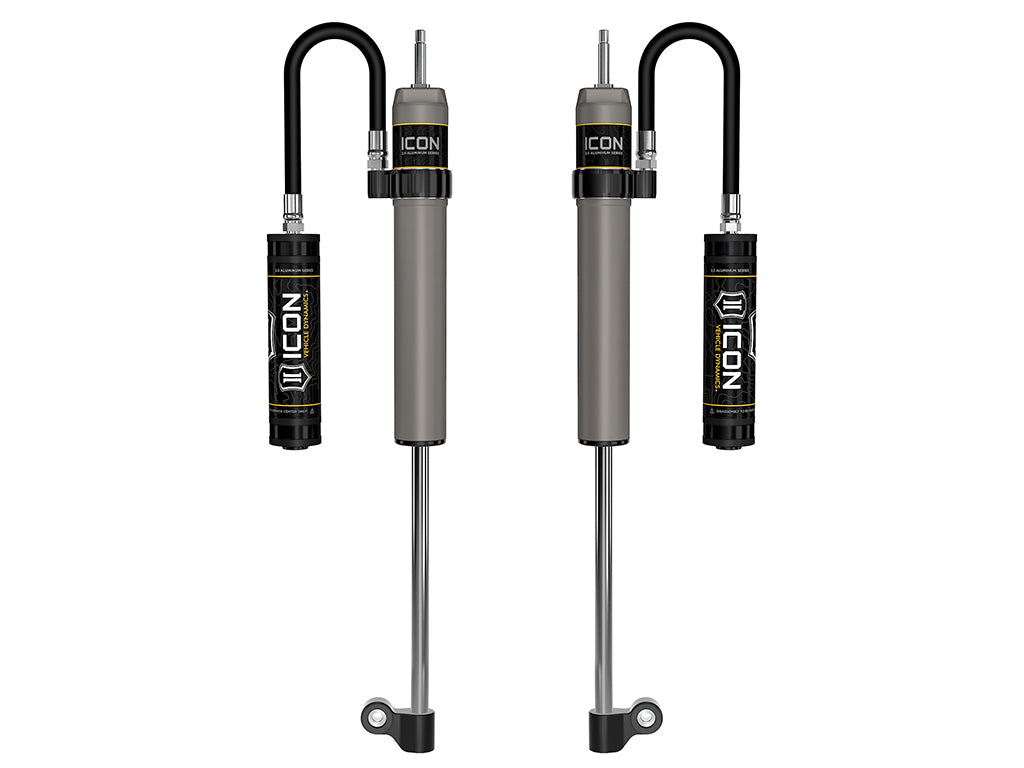

07-21 Tundra RXT Rear 2.5 VS RR Pair Icon Vehicle Dynamics

ICON's 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Featuring one-piece impact extruded aluminum cylinders, these 2.5 Aluminum Series shocks offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable.

For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.

If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or Omega Series bypass shocks.

• ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• Double-sealed Schrader caps reduce risk of damage
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8 Inch diameter induction hardened, chrome plated shock shaftS
• 100 Percent Rebuildable
• 100 Percent Revalveable

• Adjustable: No
• Boot Included: No
• Bore Diameter: 2.25
• Cylinder Material: Aluminum
• External Reservoir: Yes
• Gas Charged: Yes
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Service Parts: 611008 - 9/16 RXT Heavy Duty Stem Bushing Kit, 191015 - 10 Inch Finned Resi Upgrade Kit, 252003 - Seal Install Tool 2.5/3.0, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench, 254100G - 1 Gallon Icon Performance Shock Oil, 257342 - 7/8 Shaft 16.85 Oal, 12.00 Travel, 252002 - Universal Spanner Wrench (2.0/2.5/3.0)
• Shock Absorber Body End Measuring Point: Center Of Eylet
• Shock Absorber Rod End Measuring Point: Center Of Eylet
• Tube Outside Diameter: 2.5
• Upper Mount Type: Stem
• Add On Part: 252012 - -4 To -10 Hose Shield Kit
