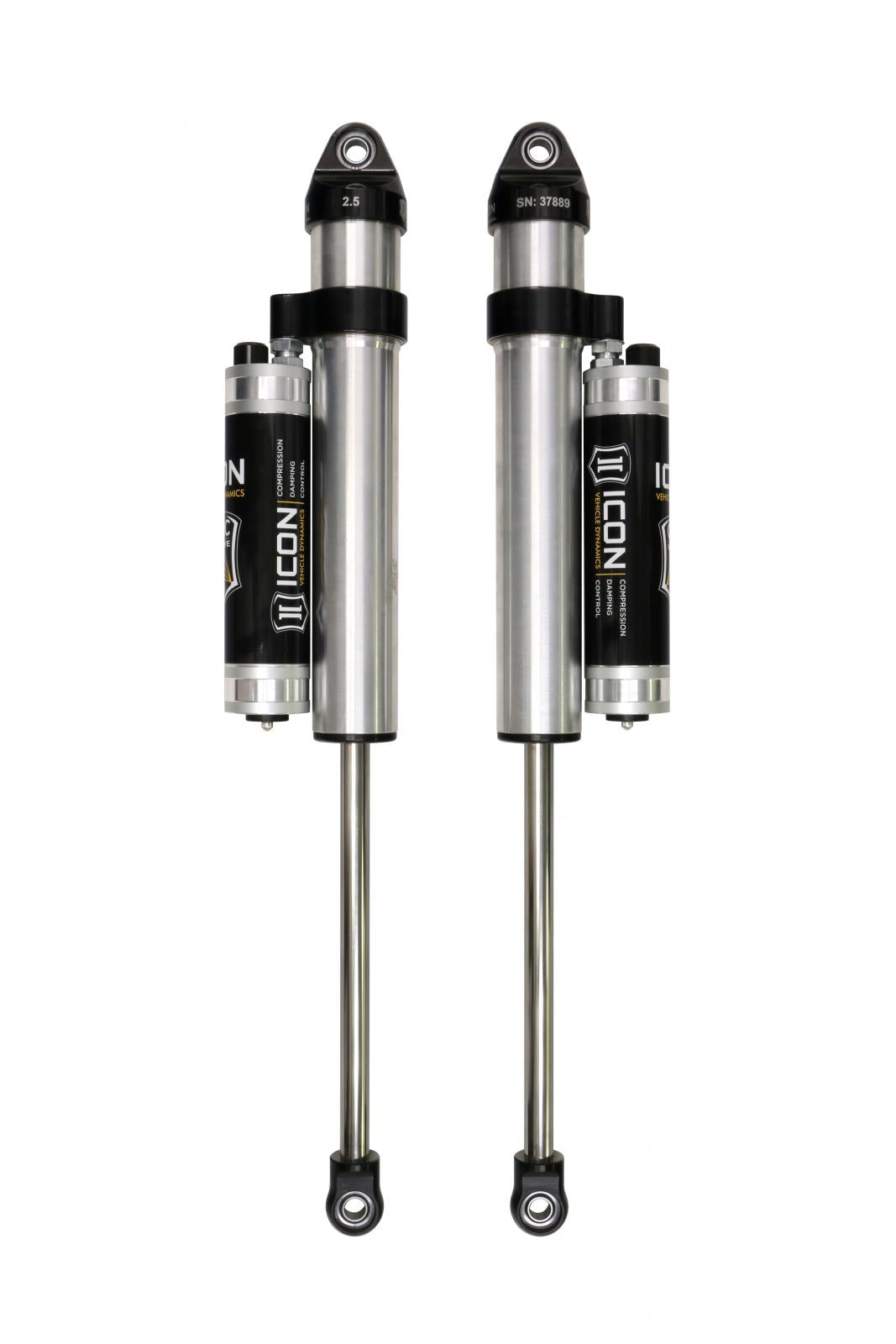

08-16 FSD 4WD 4.5-9 Inch Front Secondary 2.5 Vs Pb CDCV Pair Icon Vehicle Dynamics

08-16 FSD 4WD 4.5-9 Inch Front Secondary 2.5 Vs Pb CDCV Pair Icon Vehicle Dynamics

Awaiting stock, shipping soon
$1,482.35
$1,482.35 $1,556.46
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.

This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.

Features and Benefits:
  • ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
  • ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with piggyback reservoir
  • 7/8 Inch diameter induction hardened, chrome plated shock shaft
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
  • 100 Percent Rebuildable
  • 100 Percent Revalveable
Details
  • Adjustable: Yes
  • Boot Included: No
  • Bore Diameter: 2.25
  • Cylinder Color: Silver
  • Cylinder Material: Steel
  • Damping Type: Oil
  • External Reservoir: Yes
  • Gas Charged: Yes
  • Grade Type: Performance
  • Lower Mount Type: Eyelet
  • Mounting Hardware Included: Yes
  • Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 257342 - 7/8 Shaft 16.85 Oal, 12.00 Travel, 252003 - Seal Install Tool 2.5/3.0, 191015 - 10 Inch Finned Resi Upgrade Kit, 252001 - 2.5 Fixed Spanner Wrench, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit
  • Shaft Diameter: 0.875
  • Shaft Material: Chrome
  • Shock Absorber Body End Measuring Point: Center Of Eylet
  • Shock Absorber Rod End Measuring Point: Center Of Eylet
  • Tube Outside Diameter: 2.5
  • Upper Mount Type: Eyelet
