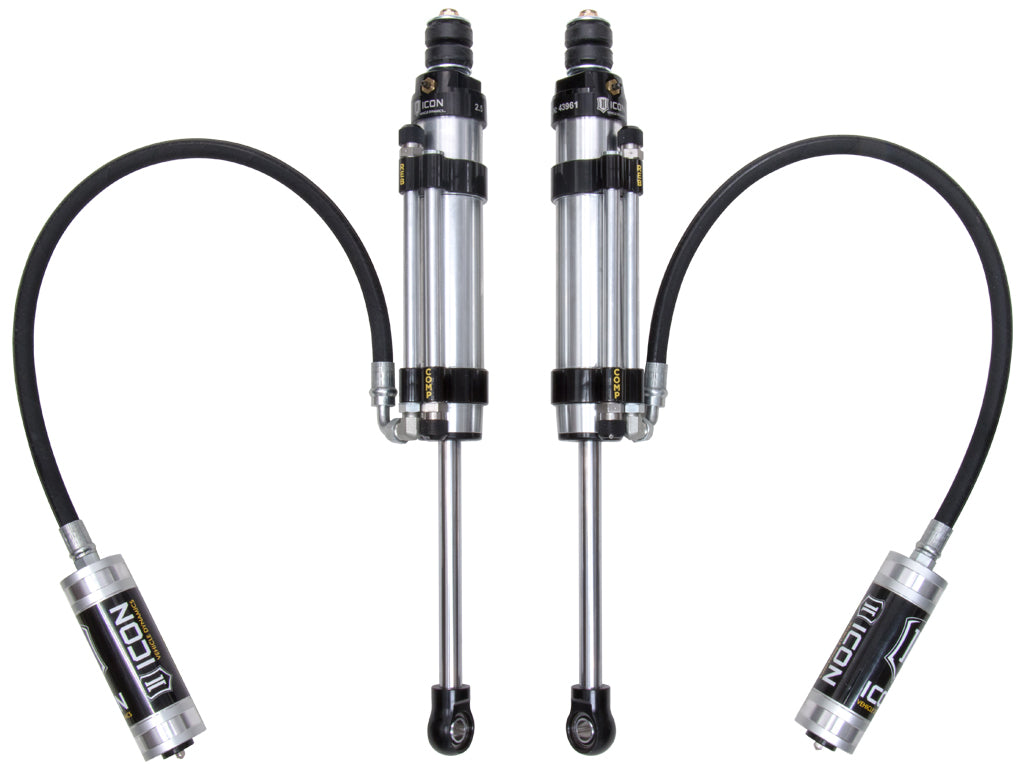

08-Up LC 200 0-2 Inch Rear 2.5 Vs Omega Pair Icon Vehicle Dynamics

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves.

Like all ICON shock absorbers, Omega Series shocks are 100 Percent rebuildable and 100 Percent revalveable. ICON's use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal InchBump Zone Inch that when used, creates a significant increase in damping force.

This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required.

• ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range
• Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
• Bypass tubes are replaceable in the event of damage
• Internal InchBump Zone Inch increases damping force to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8 Inch diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100 Percent Rebuildable
• 100 Percent Revalveable

• Adjustable: Yes
• Boot Included: No
• Bore Diameter: 2.25
• Cylinder Material: Aluminum
• External Reservoir: Yes
• Gas Charged: Yes
• Lower Mount Type: Eyelet
• Mounting Hardware Included: Yes
• Service Parts: 257340 - 7/8 Shaft 14.25 Oal, 10.00 Travel, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 611006 - 9/16 HD Stem Bushing Kit, 191016 - 7.5 Inch Finned Resi Upgrade Kit, 252001 - 2.5 Fixed Spanner Wrench, 254100G - 1 Gallon Icon Performance Shock Oil, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252003 - Seal Install Tool 2.5/3.0
• Shock Absorber Body End Measuring Point: Shoulder Of Stem
• Shock Absorber Rod End Measuring Point: Center Of Eyelet
• Tube Outside Diameter: 2.5
• Upper Mount Type: Stem
• Add On Part: 252012 - -4 To -10 Hose Shield Kit
