09-13 Ford F150 4WD 0-2.63 Inch Suspension System Icon Vehicle Dynamics

09-13 Ford F150 4WD 0-2.63 Inch Suspension System Icon Vehicle Dynamics

Awaiting stock, shipping soon
Title
$2,051.61
$2,051.61 $2,154.18
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

ICON Vehicle Dynamics 2009-2013 Ford F150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

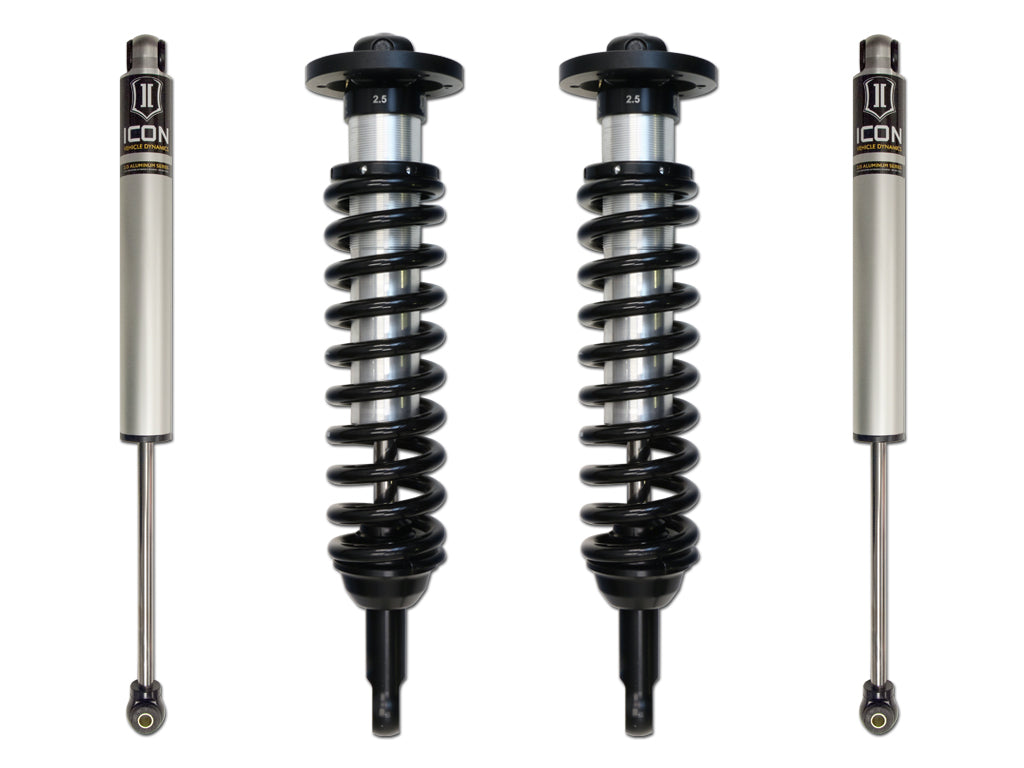

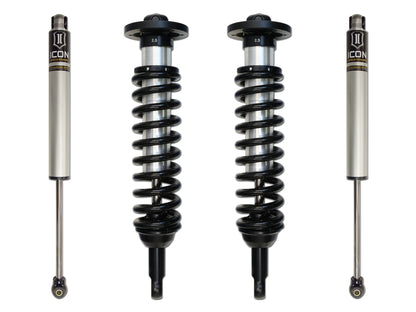

The Stage 1 system includes vehicle-specific tuned 2.5 Inch coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are also height adjustable from 0-2.63 Inch allowing the use of larger, more aggressive wheel and tire combinations.

ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2013 F150 4WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features and Benefits:
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Unique valving developed for the 2009-2013 F150
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • Adjustable coilovers provide 0-2.63 Inch of lift height
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
  • High strength alloy CNC machined lower bar pin
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 aluminum body IFP rear shock with 5/8 Inch polished shaft
  • 100 Percent bolt-on system - no drilling, cutting, or welding necessary for install
Details
  • Bushings Included: No
  • Grade Type: Performance
  • Maximum Lift: 2.63 Inch
  • Mounting Hardware Included: Yes
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
  • Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Material: Steel
  • Add On Part: 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5)
