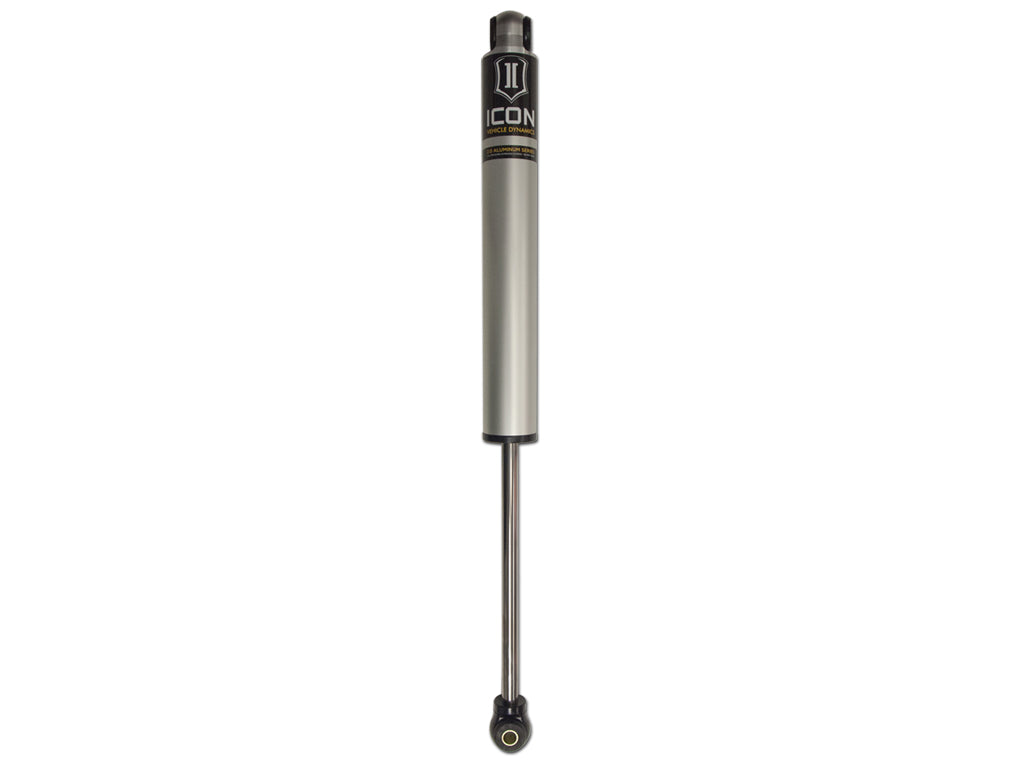

09-18 RAM 1500 1-3 Inch Rear 2.0 VS IR Icon Vehicle Dynamics

09-18 RAM 1500 1-3 Inch Rear 2.0 VS IR Icon Vehicle Dynamics

Awaiting stock, shipping soon
$200.80
$200.80 $210.84
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.

Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Features and Benefits:
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with internal reservoir
  • One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 5/8 Inch chrome plated hardened steel shaft resists corrosion and pits
  • 6061 aluminum rod end, top cap, and internals ensure strength and durability
  • Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
  • 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
  • Nitrile rubber top out bumper for noise free operation
  • 100 Percent rebuildable
  • 100 Percent revalveable
Details
  • Color: Gray, Black, Silver
  • Material: Steel, Aluminum
  • Finish: Anodized
  • Active Or Passive Suspension: Passive
  • Adjustable Compression: No
  • Adjustable Damping: No
  • Adjustable Rebound: No
  • Adjustable Ride Height: No
  • Attributed Description: Icon Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center Of Eyelet; Shock Absorber Rod End Measuring Point: Center Of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 In; Compressed Length: 16.600 In; Fully Open Length: 27.05 In; Shock Stroke: 10.45 In; Travel Length: 10.45 In
  • Body Color: Gray
  • Body Diameter: 2 Inch
  • Body Material: Aluminum
  • Boot Included: No
  • Bore Diameter: 1.75
  • Bushing Color: Black
  • Bushing Included: Yes
  • Bushing Material: Polyurethane
  • Coil Over Springs Included: No
  • Coil Spring InsulatorS Included: No
  • Configuration: Performance
  • Cylinder Color: Gray
  • Cylinder Finish: Anodized
  • Cylinder Material: Aluminum
  • Cylinder Outside Diameter: 2.0
  • Damping Type: Oil
  • Dust Boot Included: No
  • Dust Shield: No
  • Dust Shield Included: No
  • External Reservoir: No
  • Gas Charged: Yes
  • Grade Type: Performance
  • Hydraulic Lockout: No
  • Includes Bump Stop: No
  • Internal Construction Type: Single Tube
  • Internal Rebound Bumper: Yes
  • Internal Rebound Spring: No
  • Lower Mount Type: Eyelet
  • Maximum Ride Height Raising Distance: 3.0
  • Mounting Hardware Included: No
  • Quantity: 1 Inch
  • Remote Reservoir: No
  • Rod Diameter: 0.625
  • Self Leveling: No
  • Service Parts: 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252004 - Economy Needle Charging Tool, 254101G - 1/2 Gallon Icon Performance Shock Oil
  • Shaft Diameter: 0.625
  • Shaft Material: Chrome
  • Shock Absorber Body End Measuring Point: Center Of Eyelet
  • Shock Absorber Bore Size: 1.75
  • Shock Absorber Rod End Measuring Point: Center Of Eyelet
  • Suspension Type: Spring
  • Upper Mount Type: Eyelet
  • Valving Type: Digressive, Linear
  • Add On Part: 614700 - 2.0 Shock Boot Kit (Each)
