ICON Vehicle Dynamics is known for its extensive research and development put into every product, the revolutionary outcome of this research is what sets ICON apart from the off-road industry standard. The Ford SVT Raptor was the first production truck, designed and built, to bridge the gap between a standard street pickup truck and an off-road pre-runner.

ICON Vehicle Dynamics new 3.0 Performance Coil-Over Shocks for the SVT Raptor were rigorously tested both on- and off-road for several months to enhance the overall performance and ride quality.

Features and Benefits:

  • The engineers at ICON Vehicle Dynamics took a different approach to position sensitive performance in our 3.0 front coil over shock. Instead of bypassing a small internal piston at the cost of poor control, road holding, and cornering like a traditional internal position sensitive shock, our shock starts with a true 3 Inch main piston that has robust features such as digressive rebound and flutter stack compression. This combination produces outstanding control, great response, and unparalleled ride performance. To achieve even more control for extreme off-road use, we added an additional internal hydraulic system (much like an external mounted hydraulic bumpstop) that produces the extreme forces required during the last 40 Percent of travel to achieve maximum bottom out control. These multiple stages of compression and rebound have been tuned independently to maximize overall performance of the Ford SVT Raptor front suspension. For owners who wish to optimize the ride specific to his or her liking, the front coil-over shocks are equipped with an external, Easy to Adjust Compression Damping Control Valve, that is effective for the entire stroke of the shock. This compression adjustment valve offers you 10 high resolution settings, each bringing a true feel difference from soft to firm.

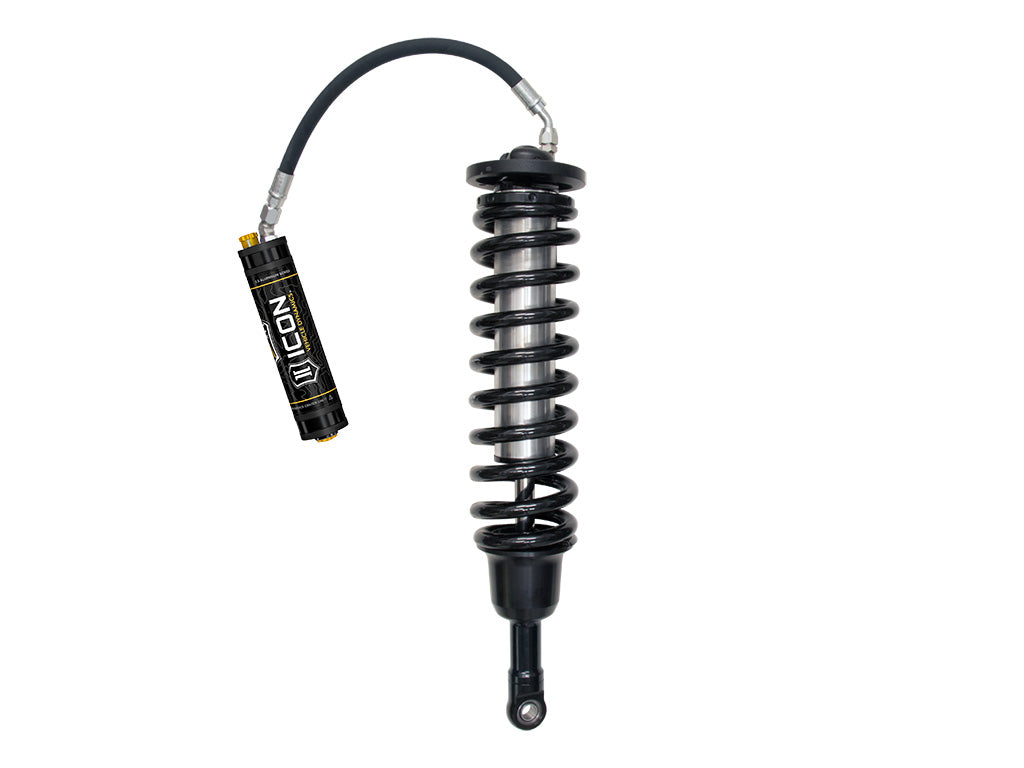

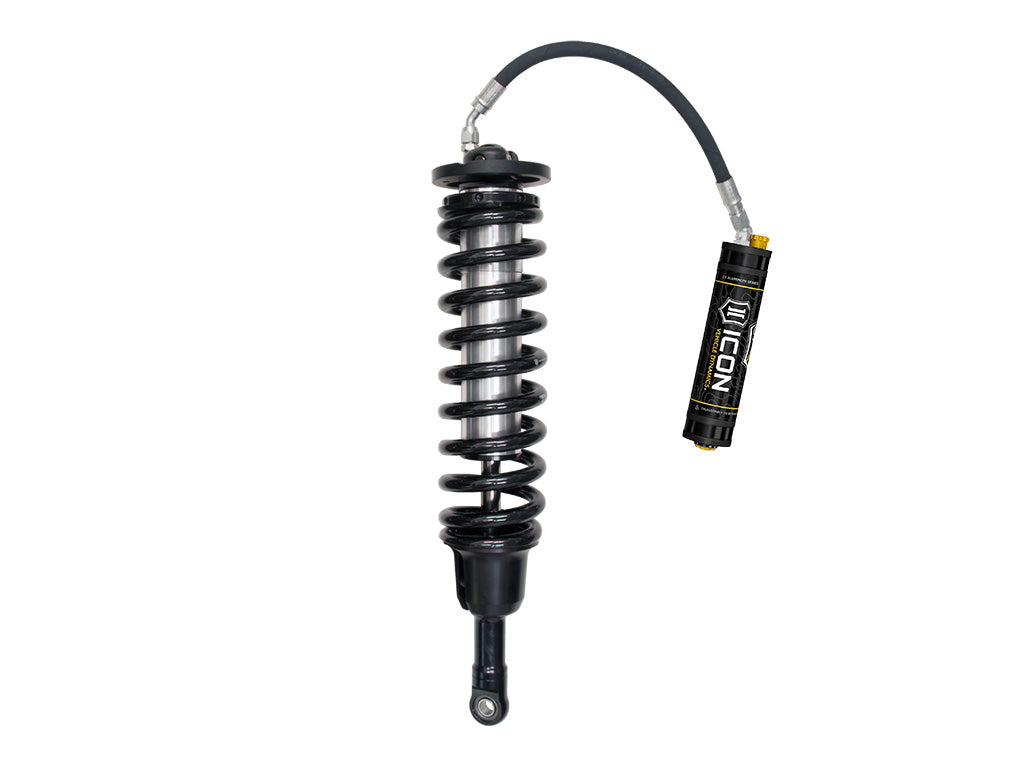

  • 3.0 OEM Replacement Remote Reservoir Compression Adjustable Front Coil Over Shock
  • Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40 Percent of Travel
  • Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
  • Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
  • Nitrogen Charged 6063-T832 Aluminum 10 Inch Remote Reservoirs that are Precision CNC Honed & Hard Anodized
  • Adjustable Ride Height from 1 Inch 3.5 Inch of Lift
  • ICON Engineered Eibach 3 5/8 Inch ID High Quality Chrome Silicon Steel Springs that offer increased travel and performance
  • Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
  • Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
  • Oversized 1 Inch Heavy Duty CNC Machined Shock Shafts
  • Extended Droop Travel and Increased Overall Performance on and off road

Details

  • Material: Aluminum, Steel
  • Active Or Passive Suspension: Passive
  • Adjustable Compression: Yes
  • Adjustable Damping: Yes
  • Adjustable Rebound: No
  • Adjustable Ride Height: Yes
  • Assembled: Yes
  • Body Diameter: 3 Inch
  • Coil Over Springs Included: Yes
  • Coil Spring Included: Yes
  • Coil Spring InsulatorS Included: No
  • Compressed Length: 20.24
  • Cylinder Color: Gray
  • Cylinder Finish: Ceramic Coated
  • Cylinder Material: Steel
  • Cylinder Outside Diameter: 3.0
  • Damping Adjustment Type: Manual
  • Damping Type: Oil
  • Dust Shield Included: No
  • Extended Length: 27.45
  • Gas Charged: Yes
  • Grade Type: Performance
  • Includes Bump Stop: Yes
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Eyelet
  • Maximum Lift: 3.5 Inch
  • Maximum Ride Height Raising Distance: 3.5
  • Minimum Lift: 1.0 Inch
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
  • Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset
  • Remote Reservoir: Yes
  • Reservoir Style: Remote
  • Self Leveling: No
  • Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 252003 - Seal Install Tool 2.5/3.0, 302005 - 3.0 Icon Rebuild Kit (All), 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 611019 - Coilover Hardware Kit Pair
  • Shaft Diameter: 1.0
  • Shaft Material: Chrome
  • Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Center Of Eylet
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate: 600.0
  • Spring Rate Type: Linear
  • Travel Length: 7.21
  • Upper Mount Type: Mounting Plate
  • Valving Type: Compression: Linear, Rebound: Digressive
  • Add On Part: 198001 - Billet Spanner Wrench Kit, 191010 - Icon Raptor 3.0 Coil Wrap W/Logo Pair, 198000 - 2 Pin Coilover Spanner Wrench Kit, 252012 - -4 To -10 Hose Shield Kit
