15-22 Colorado/Canyon 5.5 Inch Suspension Zone Offroad

15-22 Colorado/Canyon 5.5 Inch Suspension Zone Offroad

Title
$1,593.13
$1,593.13
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

To properly lift the Colorado/Canyon suspension 5.5 Inch, we started with ductile cast iron steering knuckles that reposition critical steering and control arm mounting locations, and work in harmony with the heavy-duty, fabricated crossmembers.

Differential drop brackets lower and reposition the front differential for correct CV shaft angles and still allow for use of the factory front driveshaft with the help of a spacer that helps retain optimum CV joint positioning.

A full-width differential skid plate protects the relocated differential from the underside and ties the front and rear crossmembers together.

Factory struts are retained and relocated with top spacers to gain a full 5.5 Inch of lift without requiring any strut disassembly and that position the struts to eliminate binding through wheel travel.

In the rear, a new block and U-bolt kit provided 4 Inch of lift to level out the rear with the front. Extended sway bar links, bump stop extensions, and brake line relocation are also included.
Quick Specs:

  • Front Lift Method: Strut Spacer
  • Front Lift Height: 5.5 inch
  • Rear Lift Method: Block
  • Rear Lift Height: 4 inch
  • Shocks Included: Yes

Shocks:

  • FOX 2.0 Adventure Series
    • 2-inch diameter steel body
    • Internal floating piston (IFP) monotube design
    • Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
    • Race-developed high-flow piston design
    • Application-specific valving to maximize performance
    • Long-lasting silver coated finish

Features:

  • Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
  • Heavy-duty differential skid slate improves offroad protection.
  • High-strength, 1/4 Inch steel construction crossmembers correct lower control arm geometry.
  • High-strength, replacement steering knuckles improve strength while correcting steering angles to maintain ESC system compliance.
  • Multi-point differential relocation brackets secure front differential for improved CV operating angles.
  • Rear lift block and longer u-bolts for easy installation and level stance

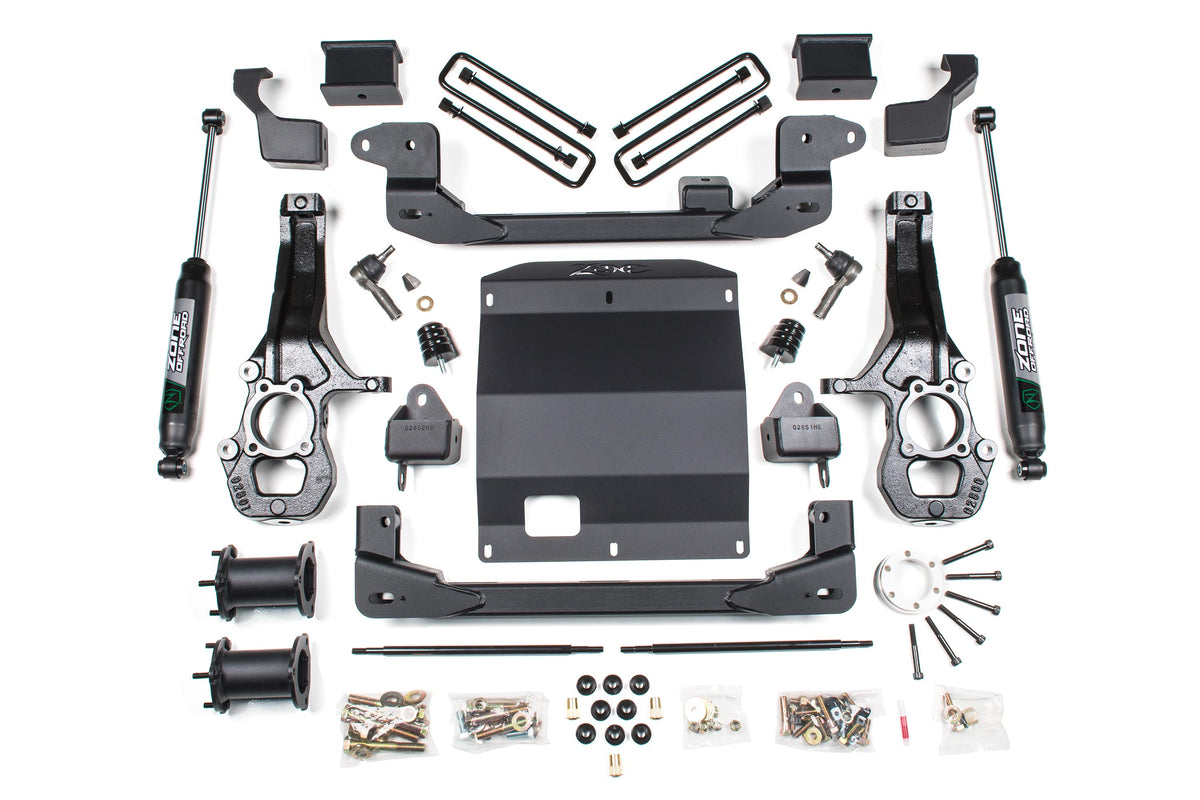

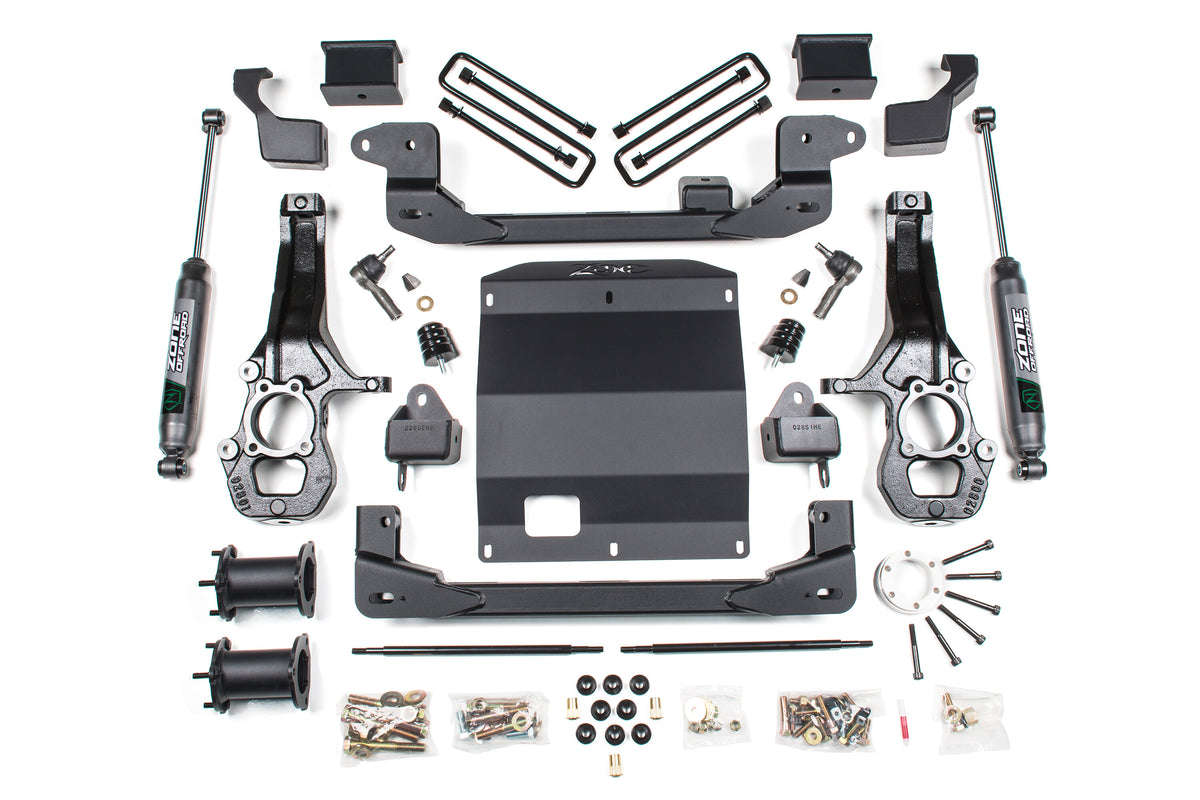

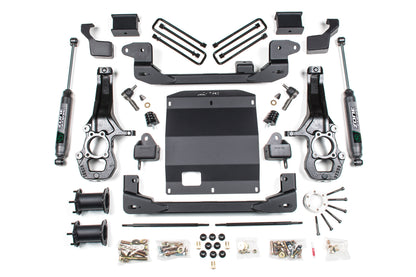

Kit Components:

  • FOX98450750 (x2)
  • ZONC2409
  • ZONC2550
  • ZONC2551
  • ZONC2552
  • ZONC2553
  • ZONC2554
