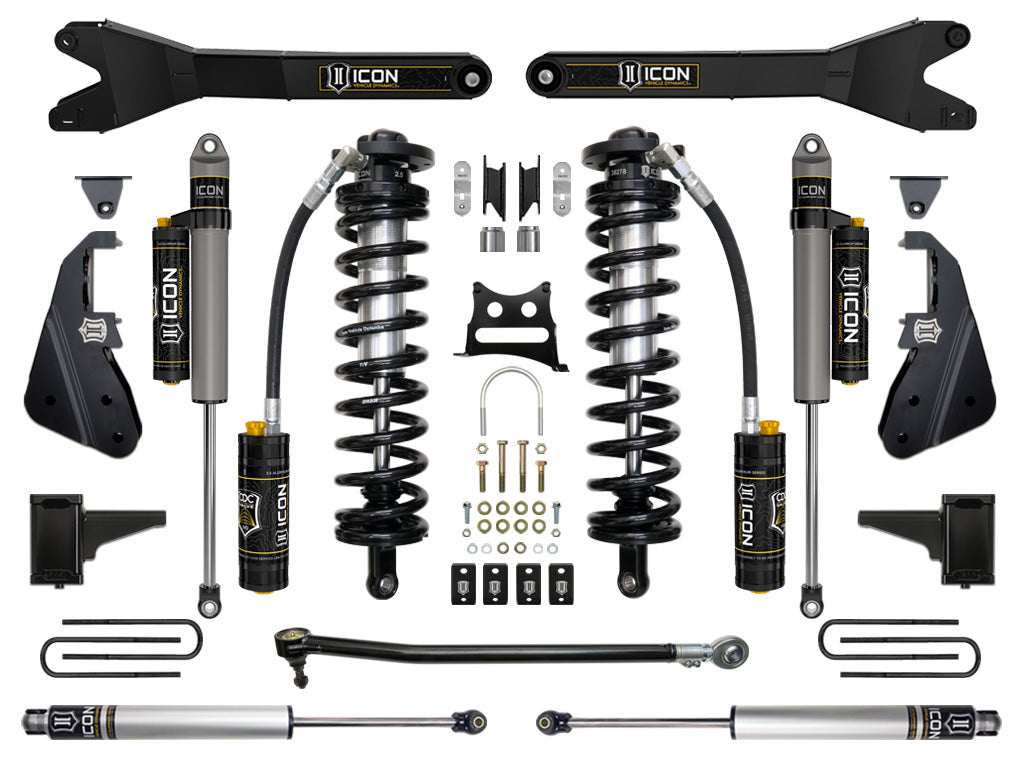

17-22 Ford F250/F350 4-5.5 Inch Lift Suspension System W/Radius Arm Icon Vehicle Dynamics

17-22 Ford F250/F350 4-5.5 Inch Lift Suspension System W/Radius Arm Icon Vehicle Dynamics

Title
$8,660.04
$8,660.04 $9,093.04
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 21% off

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5 Inch Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.

Features and Benefits:

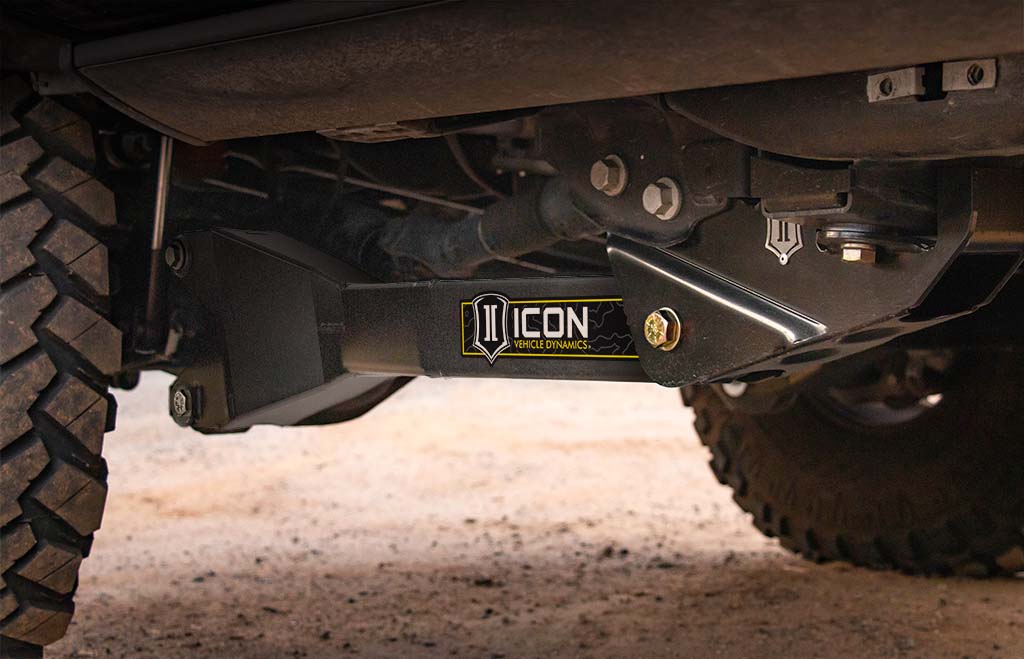

  • This Stage 5 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37 Inch tall tire clear without coming in contact with the radius arm.
  • Bolt-in system fits in OE coil bucket location
  • Shocks are fully rebuildable and revalveable
  • Coilover conversion allows for addition of secondary shock
  • Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
  • Eibach coil springs guaranteed for life against sagging or breakage
  • Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • FK Rod End bearings for extended longevity and minimal deflection
  • Ride height adjustable coilovers provide 4-5.5 Inch or 4.75-6.25 Inch of lift, depending on year model of truck
  • Increased wheel travel and ride quality over stock
  • Decreased body roll and improved on and off-road ride dynamics
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • ICON CDC Valve allows quick and easy end user compression adjustability
  • Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
Details
  • Bushings Included: No
  • Coils Quantity Front: 2.0
  • Grade Type: Performance
  • Maximum Lift: 6.25 Inch
  • Mounting Hardware Included: Yes
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
  • Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Material: Steel
  • Add On Part: 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit, 198001 - Billet Spanner Wrench Kit, 191014 - .25 Inch Collar Spanner Pin Wrench, 198000 - 2 Pin Coilover Spanner Wrench Kit, 61110 - 17-25 FSD Front 4.5 & 7 Inch Extended Ss Brake Line Kit
