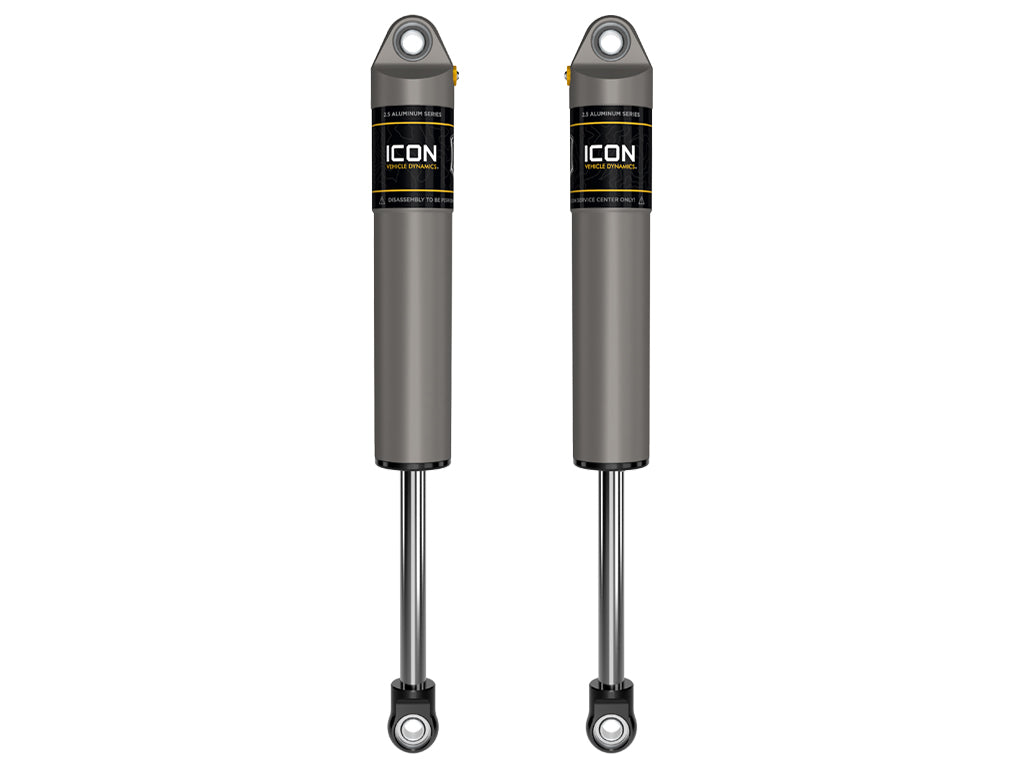

1999-2025 Ford F-250/F-350/F-450 Super Duty 0-3 Inch Lift Rear V.S. 2.5 Aluminum Series Shocks Internal Reservoir Pair Icon Vehicle Dynamics

1999-2025 Ford F-250/F-350/F-450 Super Duty 0-3 Inch Lift Rear V.S. 2.5 Aluminum Series Shocks Internal Reservoir Pair Icon Vehicle Dynamics

$812.00
$812.00 $852.60
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks.

If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.

Features and Benefits:
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • Nitrogen charged monotube design with internal reservoir
  • Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • 6061 aircraft grade aluminum CNC machined components
  • PTFE lined spherical bearings and application specific mounting hardware
  • 7/8 Inch diameter induction hardened, chrome plated shock shaft
  • 100 Percent Rebuildable
  • 100 Percent Revalveable
Details
  • Active Or Passive Suspension: Passive
  • Adjustable: No
  • Adjustable Compression: No
  • Adjustable Damping: No
  • Adjustable Rebound: No
  • Boot Included: No
  • Bore Diameter: 2.25
  • Cylinder Color: Gray
  • Cylinder Diameter: 2.5
  • Cylinder Material: Aluminum
  • Damping Type: Oil
  • External Reservoir: No
  • Gas Charged: Yes
  • Grade Type: Performance
  • Includes Bump Stop: No
  • Lower Mount Type: Eyelet
  • Mounting Hardware Included: Yes
  • Reservoir Type: Internal
  • Service Parts: 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252010 - 2.5 Ifp Rebuild Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 252003 - Seal Install Tool 2.5/3.0, 252001 - 2.5 Fixed Spanner Wrench, 252004 - Economy Needle Charging Tool, 257340 - 7/8 Shaft 14.25 Oal, 10.00 Travel
  • Shaft Diameter: 0.875
  • Shaft Material: Chrome
  • Shock Absorber Body End Measuring Point: Center Of Eyelet
  • Shock Absorber Rod End Measuring Point: Center Of Eyelet
  • Tube Outside Diameter: 2.5
  • Upper Mount Type: Eyelet
  • Valving Type: Digressive
  • Add On Part: 252008 - 2.5 X 13 Shock Boot Black (Pair)
