2.5 Inch Leveling kit FOX 3.0 Bypass Factory Race Series Ford F150 21-24 4WD BDS Suspension

2.5 Inch Leveling kit FOX 3.0 Bypass Factory Race Series Ford F150 21-24 4WD BDS Suspension

Awaiting stock, shipping soon
Title
$8,290.85
$8,290.85
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Level out your 2021 Ford F150 truck and improve the ride with this 2.5 Inch performance suspension system featuring FOX Factory Race Series 3.0 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes FOX Factory Race Series 3.0 coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX Factory Race Series 3.0 shocks for the smoothest ride.

FOX Factory Race Series

FOX Factory Race Series 3.0 Internal Bypass shocks for the Ford Bronco deliver position-sensitive damping technology, Dual Speed Compression (Dual Speed Compression Adjust) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone.

As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston.

Finned external reservoirs and aluminum shock bodies keep shock fluid temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter bodies. The Dual Speed Compression Adjust adjuster allows you to dial in your Bronco for load, environment, and driving style.

FOX Internal Bypass shocks deliver the support and confidence you need while driving high-speed through rugged terrain. Experience race-bred performance next time you leave the pavement.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 Inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

  • Front Lift Method: Coil-Over
  • Rear Lift Method: None
  • Shocks Included: Yes
  • Front Lift Height: 2.5 Inch
  • Rear Lift Height: 0 Inch
  1. Will NOT work with trucks that have CCD (Continuous Controlled Damping)
  2. Will NOT work with Diesel models.
  3. Not compatible on trucks with the On-Board Scales option.
  4. Will NOT work with the Raptor model.
  • HD Upper control arms provide superior strength and proper alignment
  • Adjustable height to fine tune
  • Front FOX 3.0 Factory Race Series IBP coil overs for unmatched performance and capability with simple adjustment of settings
  • Rear FOX 3.0 Factory Race Series IBP shocks for improved ride quality, performance and capability
  • Provides level stance from front to rear
  • Easy, 100 percent Bolt On installation
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Adaptive Headlights -No, My Truck Does Not have a UCA Headlight Sensor

This is a factory option where the headlamp beams move in the same direction as the steering wheel, illuminating the path ahead. If you are unsure if equipped, look at your upper control arms for a sensor mounted to them.

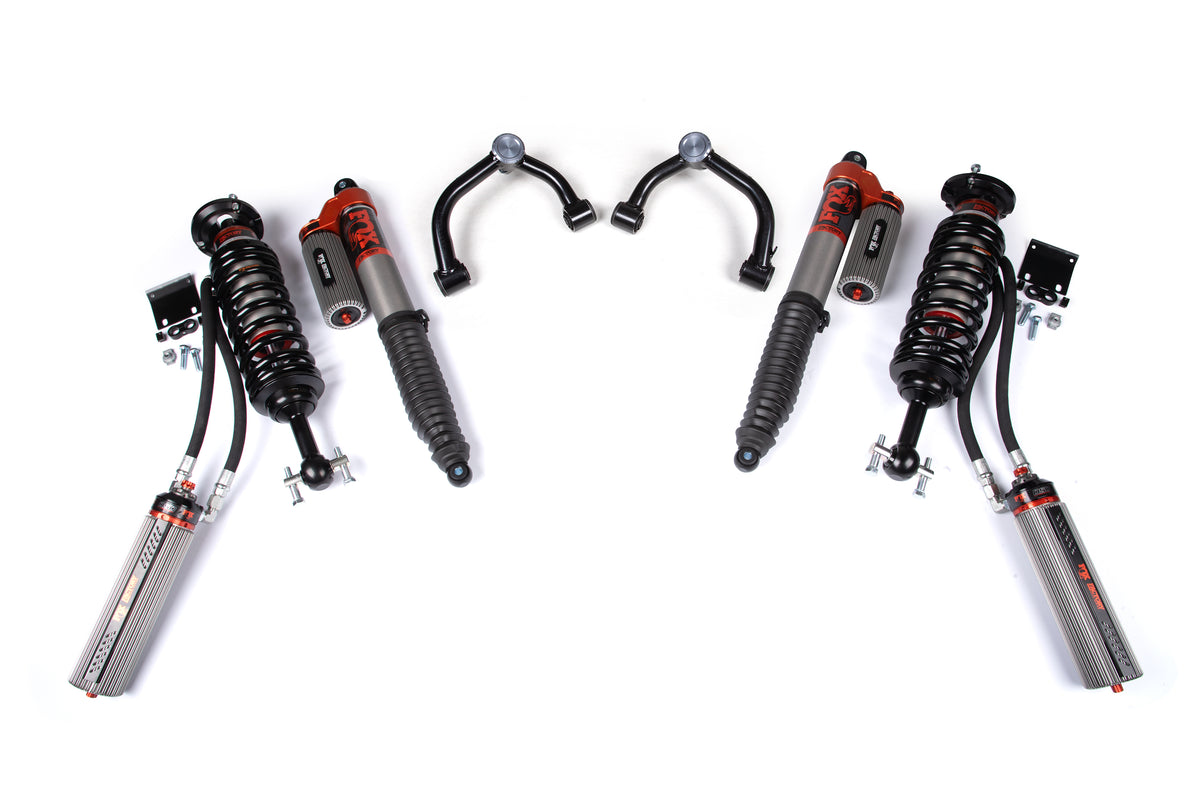

Kit Components:

  • Includes one BDS123261, 2021-2024 Ford F150 Upper Control Arm Box Kit W/O Sensor, UPC Code 711745604124
  • Includes one FOX88306191, Kit: 2021-2024 Ford F150, 4WD, Front Coilover, Internal Bypass, NF: 3.0 Series, Recirc R/R, Dual Speed Compression Adjust, 2.5 Inch LIFT
  • Includes one FOX88326121, Kit: 2021-2024 Ford F150, Rear, 3.0 Truck FRS, P/B, 0-1 InchРЎСљ Lift, Dual Speed Compression Adjust
