Built to outperform, upgrade your 2014-2020 Ford F150 truck with this 2-inch leveling kit featuring FOX 2.0 Snap Ring Struts from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch Tires.

Up front the lift kit includes FOX 2.0 Performance Series strut shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Snap Ring Strut

The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The Internal Floating Piston eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant. Three predetermined preload settings allow a choice of 0-, 1- or 2-inches of lift.

HD Upper Control Arms

Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5 inch OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability.

Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

  • Front Lift Method: Coil-Over
  • Rear Lift Method: Stock
  • Shocks Included: Yes
  • Front Lift Height: 2 inch
  • Rear Lift Height: 0 inch
  1. Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009-13 model kits.
  2. Will not fit HD models (7 lug).
  • FOX Performance Internal Floating Piston shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
  • HD Upper control arms provide superior strength and proper alignment
  • Adjustable height to fine tune
  • Provides level stance from front to rear
  • Easy, 100 percent Bolt On installation
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.
  1. Works with bar pin lower strut mounts. For eye style lower strut mounts use 2009-13 model kits.
  2. Will not fit HD models (7 lug).
  • FOX Performance Internal Floating Piston shocks eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving
  • HD Upper control arms provide superior strength and proper alignment
  • Adjustable height to fine tune
  • Provides level stance from front to rear
  • Easy, 100 percent Bolt On installation
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

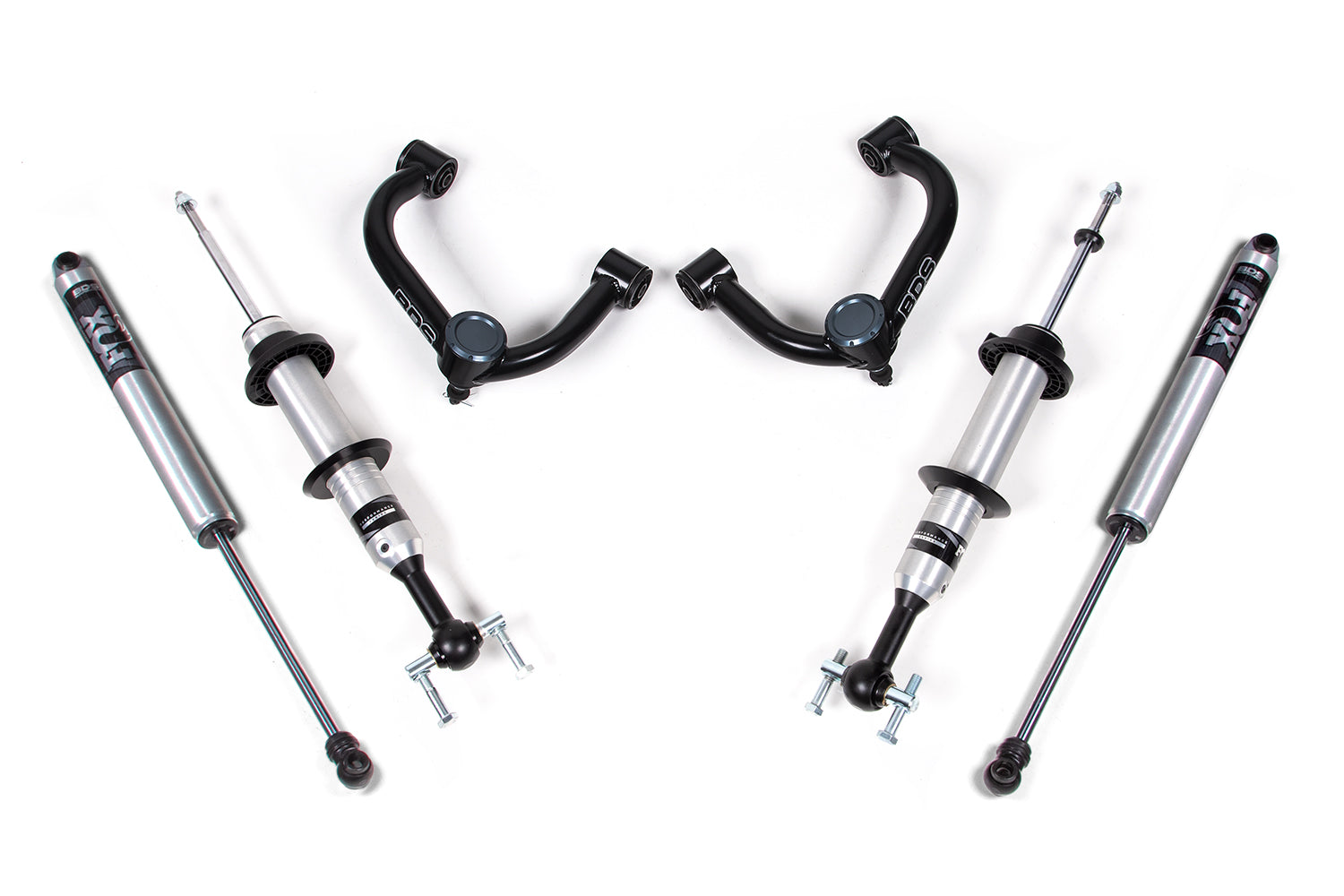

Kit Components:

  • Includes one BDS123253, 2004-2020 F150 Upper Control Arm Box Kit, UPC Code 711745604100
  • Includes two FOX98224651, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1
  • Includes two FOX98562009, 15-20 Ford F150 4WD, Front C/O, Snap Ring, PS, 2.0, Internal Floating Piston, 5.6 inch, 0-2 inch Lift
