20-22 Ford F250/F350 4.5 Inch Lift Suspension System W/Radius Arm Icon Vehicle Dynamics

20-22 Ford F250/F350 4.5 Inch Lift Suspension System W/Radius Arm Icon Vehicle Dynamics

Awaiting stock, shipping soon
Title
$7,157.91
$7,157.91 $7,515.80
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

The 2020-2022 Ford Super Duty trucks sit at a lower ride height than 2017-2019 models, and although many of the 2017-2019 components will physically fit 2020 models, the resulting ride height is often taller than desired. So, engineers at ICON designed new progressive rate coil springs that achieve the correct advertised lift heights while still retaining the great ride quality, predictability, and performance that our Super Duty systems are known for.

Features and Benefits:

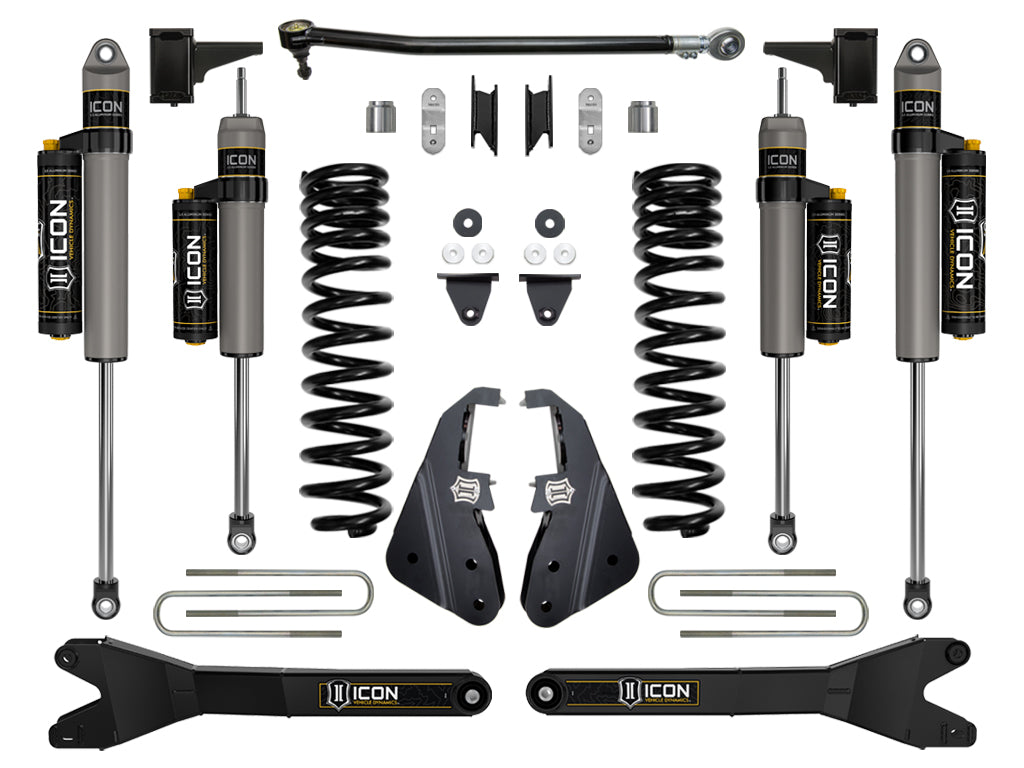

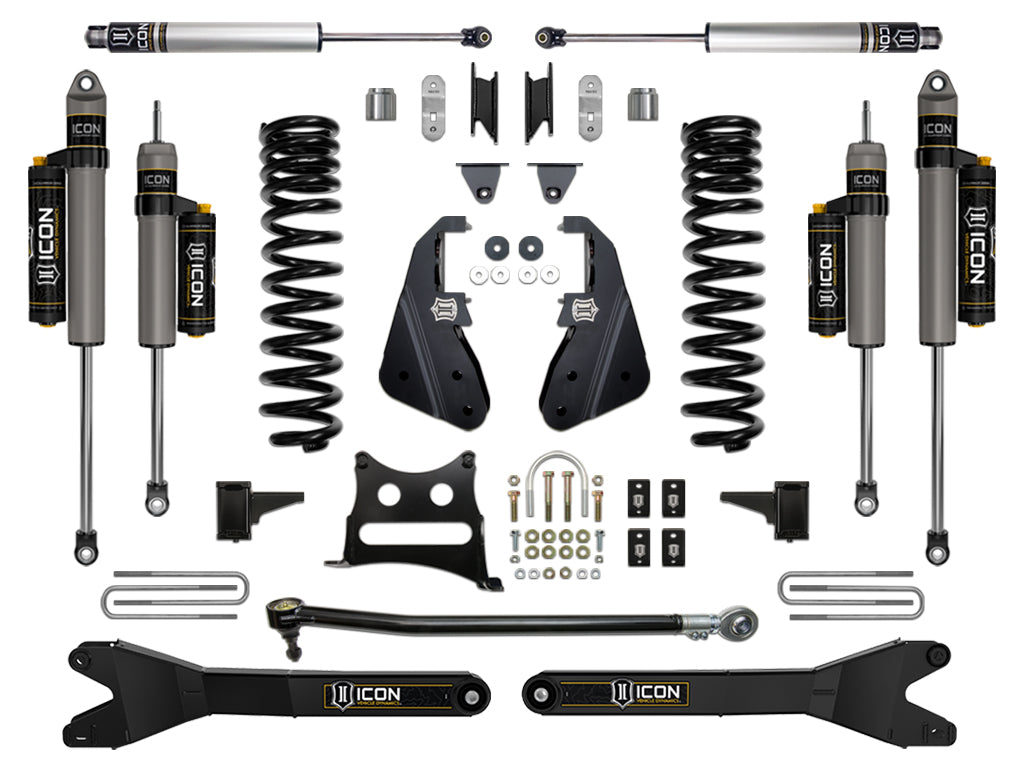

  • This ICON Vehicle Dynamics 4.5 Inch suspension system is a great way to lift your 4WD 2020-2022 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 4 system is perfect for on-road and off-road use including towing, job site duty and hardcore off-road adventure. ICON's Stage 4 System is comprised of dual rate coil springs, adjustable track bar, 5 Inch block kit, and ICON CDC Valve 2.5 Aluminum Series front and rear piggyback reservoir shocks.

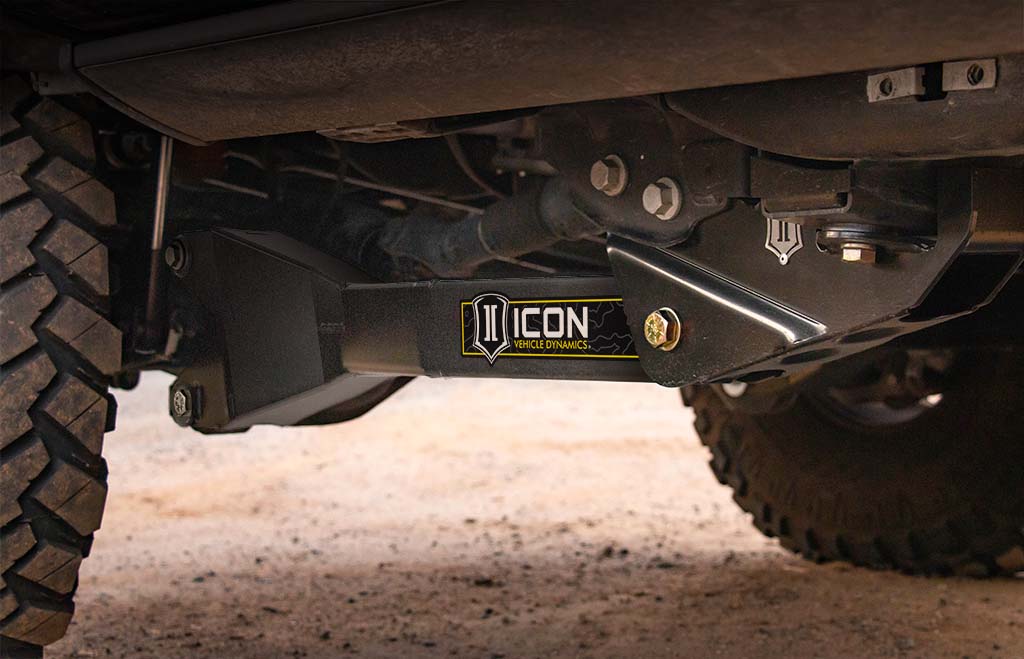

  • This Stage 4 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37 Inch tall tire clear without coming in contact with the radius arm.
  • Fits 2020-2022 F-250 / F-350 4WD applications
  • ICON shocks feature vehicle specific tune for superior performance and ride quality
  • ICON CDC Valve allows for 10 clicks of quick and easy compression adjustability
  • Shocks are fully rebuildable and revalvable
  • Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8 Inch shafts
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Lifetime guarantee against coil spring breakage or sag
  • Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
  • Approximately 50 Percent increased front wheel travel over stock
  • ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
  • Fabricated radius arms with drop brackets offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
Details
  • Bushings Included: Yes
  • Coils Quantity Front: 2.0
  • Dual Rate Coil Springs: Yes
  • Grade Type: Performance
  • Maximum Lift: 4.5 Inch
  • Mounting Hardware Included: Yes
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
  • Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Material: Steel
  • Add On Part: 61110 - 17-25 FSD Front 4.5 & 7 Inch Extended Ss Brake Line Kit, 33700 - 99-Up FSD Carrier Bearing Drop Kit, 191014 - .25 Inch Collar Spanner Pin Wrench, 64039 - 08-25 FSD Track Bar Bump Steer Bracket Kit
