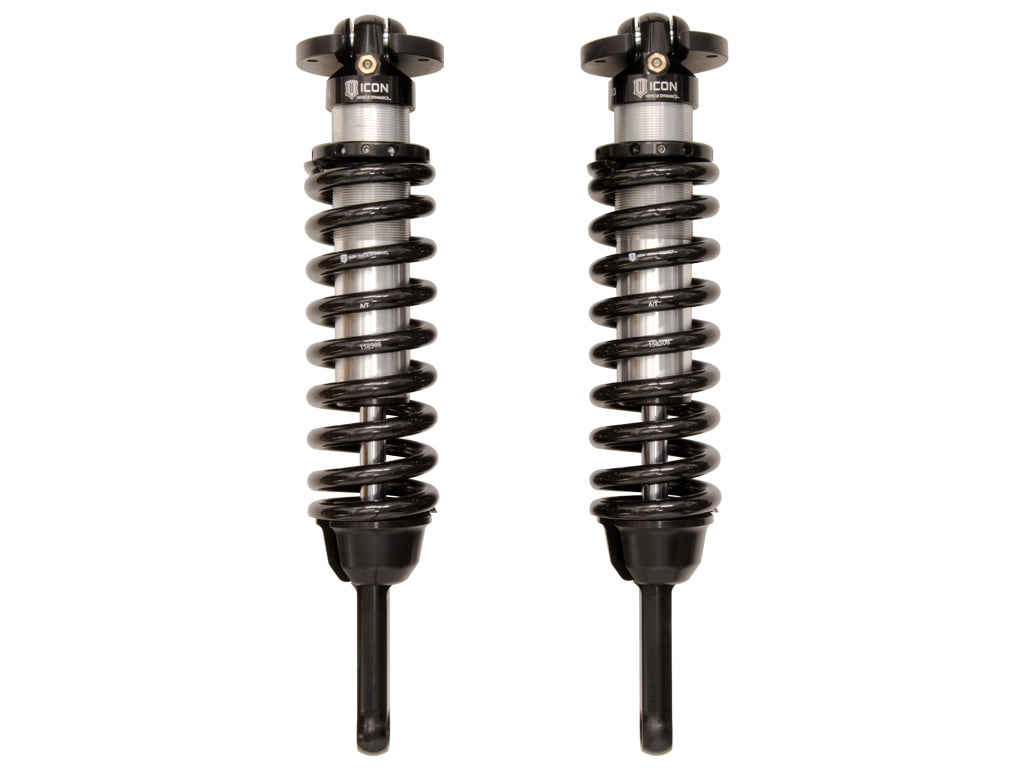

2005-2023 Toyota Tacoma 2.5 Vs Coilover Kit Internal Reservoir Icon Vehicle Dynamics

2005-2023 Toyota Tacoma 2.5 Vs Coilover Kit Internal Reservoir Icon Vehicle Dynamics

Awaiting stock, shipping soon
$1,518.35
$1,518.35 $1,594.27
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5 Inch of lift height adjustability on 2005-2015 models or 0-2.75 Inch of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations.

ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Features and Benefits:
  • Increased wheel travel and improved ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • Height-adjustable coilovers offer 0-3.5 Inch or 0-2.75 Inch of lift height adjustment depending on year model
  • ICON engineered coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable
Details
  • Material: Aluminum
  • Active Or Passive Suspension: Passive
  • Adjustable Compression: No
  • Adjustable Damping: No
  • Adjustable Rebound: No
  • Adjustable Ride Height: Yes
  • Assembled: Yes
  • Body Diameter: 2.5 Inch
  • Coil Over Springs Included: Yes
  • Compressed Length: 17.42
  • Cylinder Color: Silver
  • Cylinder Finish: Cadmium Plated
  • Cylinder Material: Steel
  • Damping Type: Oil
  • Dust Shield Included: No
  • Extended Length: 22.17
  • Front Spring Rate: 650 Inch
  • Gas Charged: Yes
  • Grade Type: Performance
  • Includes Bump Stop: No
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Eyelet
  • Maximum Lift: 3.5 Inch
  • Maximum Ride Height Raising Distance: 3.5
  • Minimum Lift: 0.0 Inch
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
  • Recommended Aftermarket Wheels: Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset
  • Remote Reservoir: No
  • Reservoir Style: Internal
  • Self Leveling: No
  • Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 252010 - 2.5 Ifp Rebuild Kit, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252004 - Economy Needle Charging Tool, 611067 - Tacoma/FJ Cruiser 4Rnr Lower Co Brg/Spcr Kit, 252001 - 2.5 Fixed Spanner Wrench, 252003 - Seal Install Tool 2.5/3.0, 611019 - Coilover Hardware Kit Pair, 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel
  • Shaft Diameter: 0.875
  • Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Center Of Eylet
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate Type: Linear
  • Travel Length: 4.76
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
  • Add On Part: 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit
