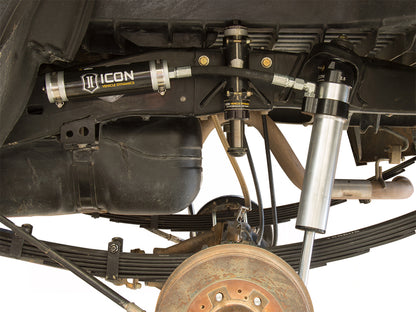

The 2005-2023 Toyota Tacoma is an extremely reliable truck that has served as a versatile platform for drivers seeking the ultimate off-road adventure. From the brutal deserts of the Southwest, to the slickrock of Moab, to the wooded trails of the East coast ICON suspension systems have been put to the test and performed flawlessly for this popular Toyota.

ICON Vehicle Dynamics' engineers have pushed this vehicle to extremes in order to develop the most sophisticated suspension components on the market. Unable to leave Inchwell-enough Inch alone, ICON is once again aiming to raise the bar in Tacoma performance with the introduction of the RXT Rear Suspension System.

Features and Benefits:

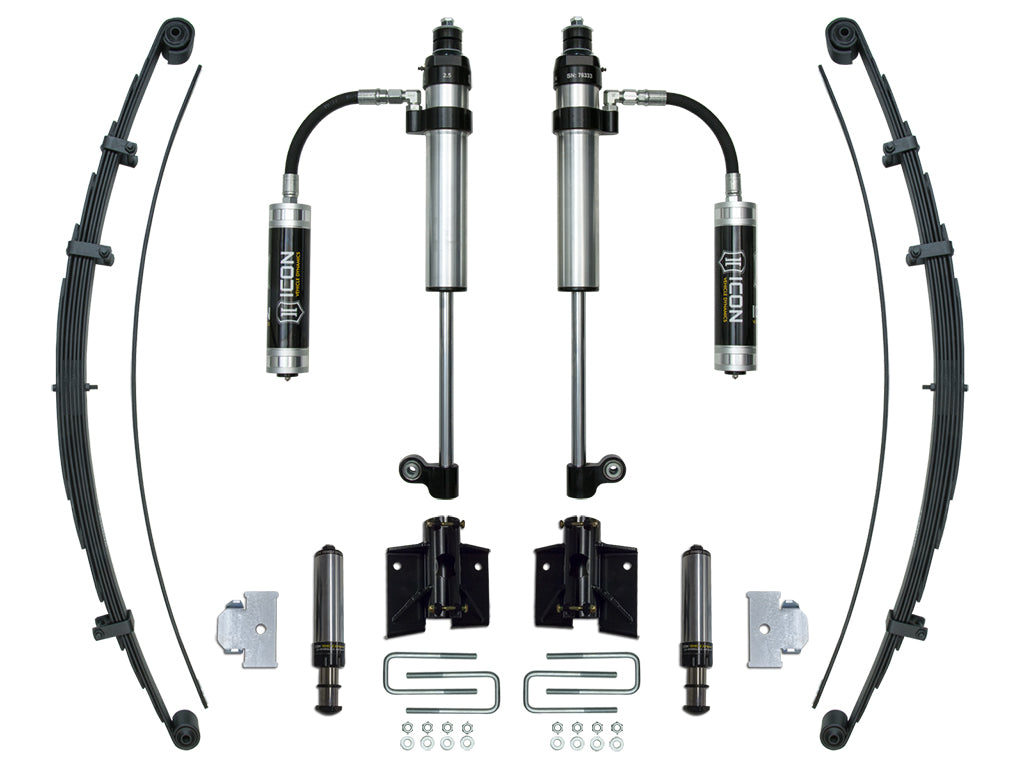

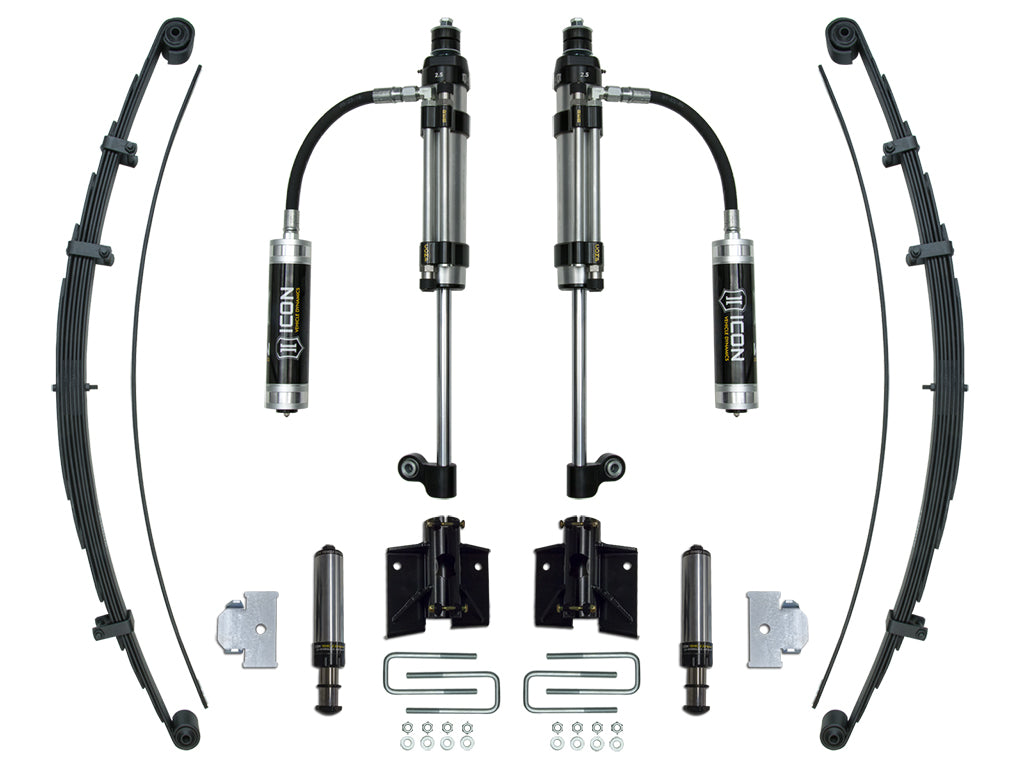

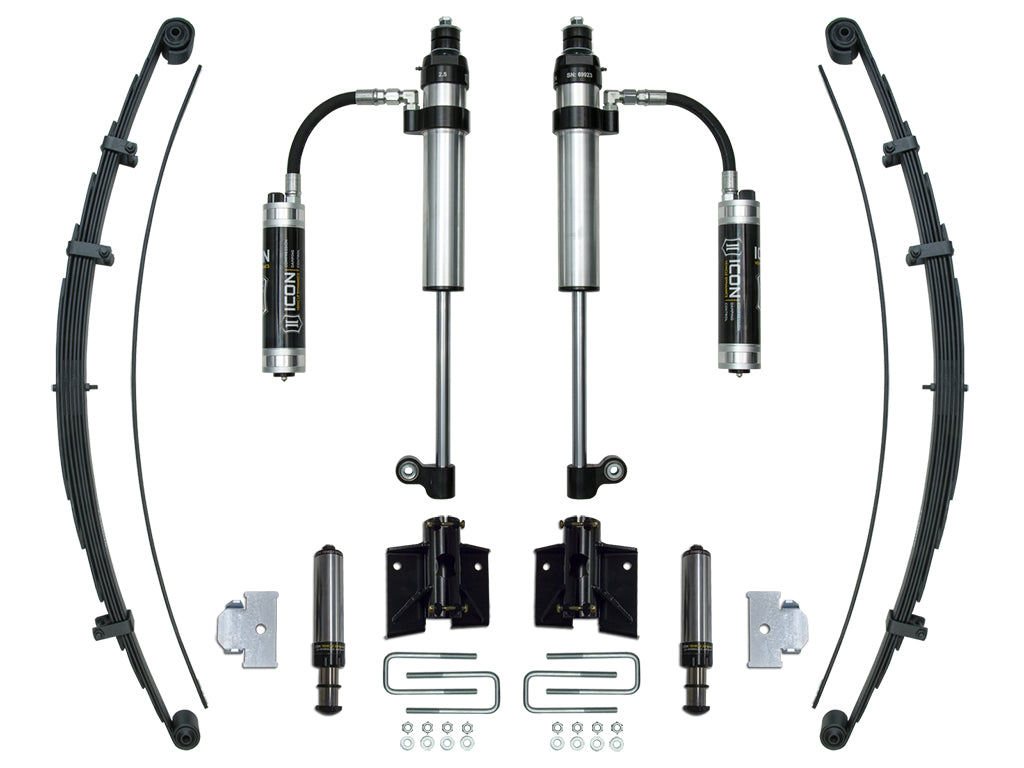

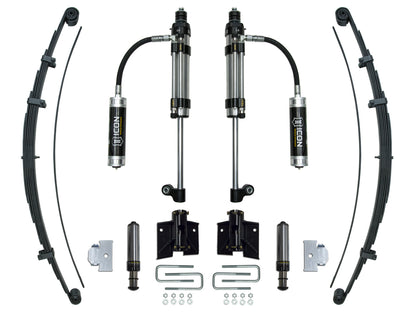

  • Through thousands of miles of accelerated testing in our R&D program, ICON has spent over a year identifying limiting factors in OE components and seeking to further extrapolate performance out of this vehicle. In a push to provide unparalleled performance for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System includes three all-new 2.5 Aluminum Series rear shock options and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit. Installation of this system replaces the aforementioned Inchlimiting factors Inch and completely redefines the potential of the 2005-2023 Toyota Tacoma with a 20 Percent increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.
  • ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
  • ICON RXT Rear Shock: 10 Inch aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
  • ICON RXT Rear Shock: Corrosion resistant anodized aluminum shock bodies with 7/8 Inch shafts
  • ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
  • ICON RXT Rear Shock: Simple and straightforward installation

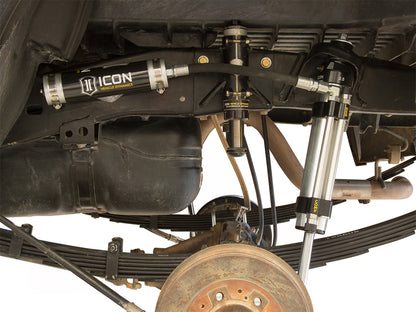

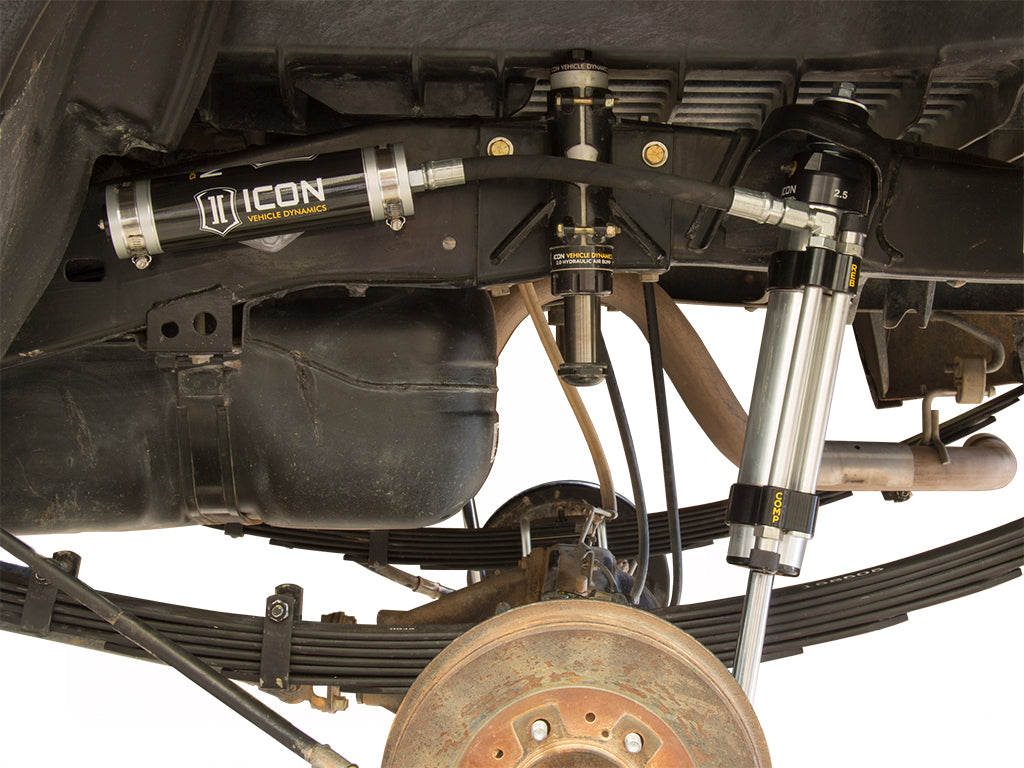

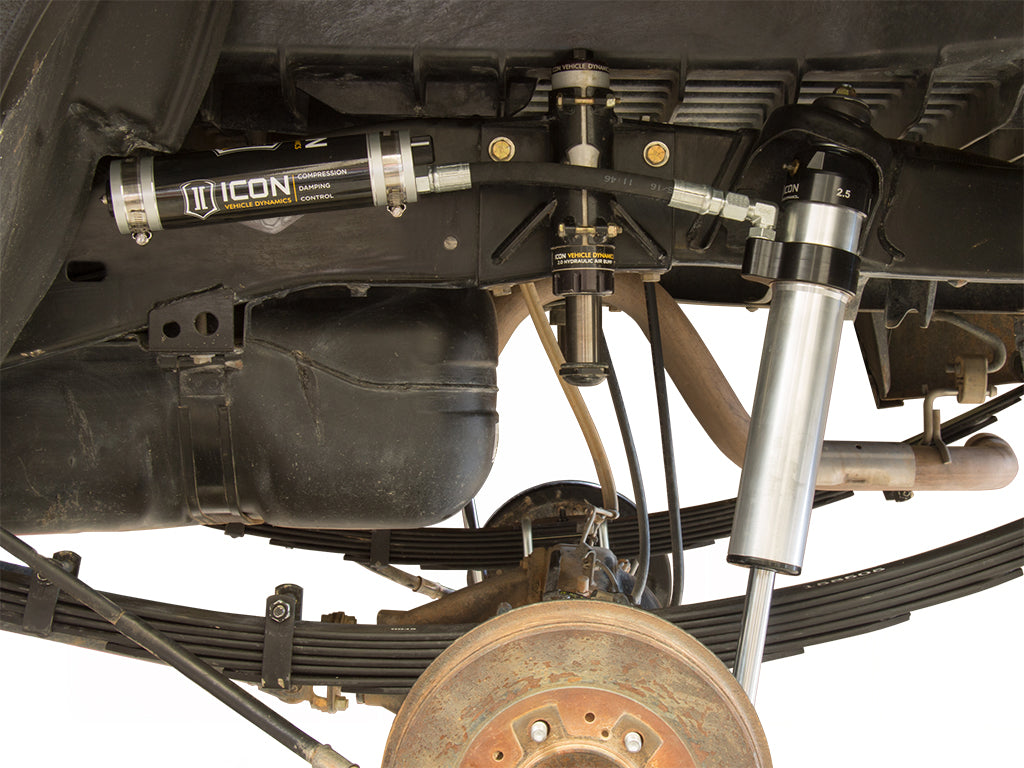

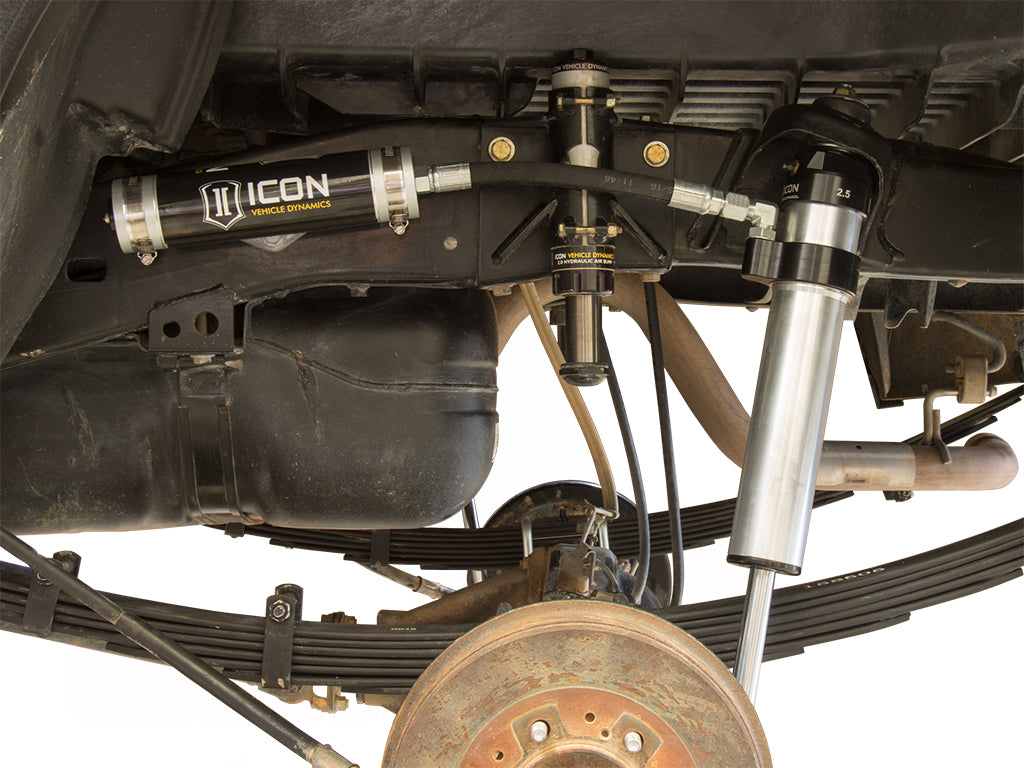

  • ICON Hydraulic Rear Bump Stop Kit: 2.5 Inch travel bump stop reduces rear end Inchkick' and improves overall performance
  • ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
  • ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
  • ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install
  • ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1 AAAA Inch CNC machined nitro steel shaft
  • ICON Hydraulic Rear Bump Stop Kit: Multi-stage CAD plated body for maximum corrosion resistance
  • ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve Operating range of 50 Inch 250 PSI
  • ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
  • ICON Hydraulic Rear Bump Stop Kit: Replaceable noise reducing striker pad
  • ICON Hydraulic Rear Bump Stop Kit: Fully serviceable
  • ICON Hydraulic Rear Bump Stop Kit: InchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
  • ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
  • ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock (up to 20 Percent) without sacrificing up-travel
  • ICON RXT Multi-Rate Leaf Spring: InchICON 1K Inch tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install

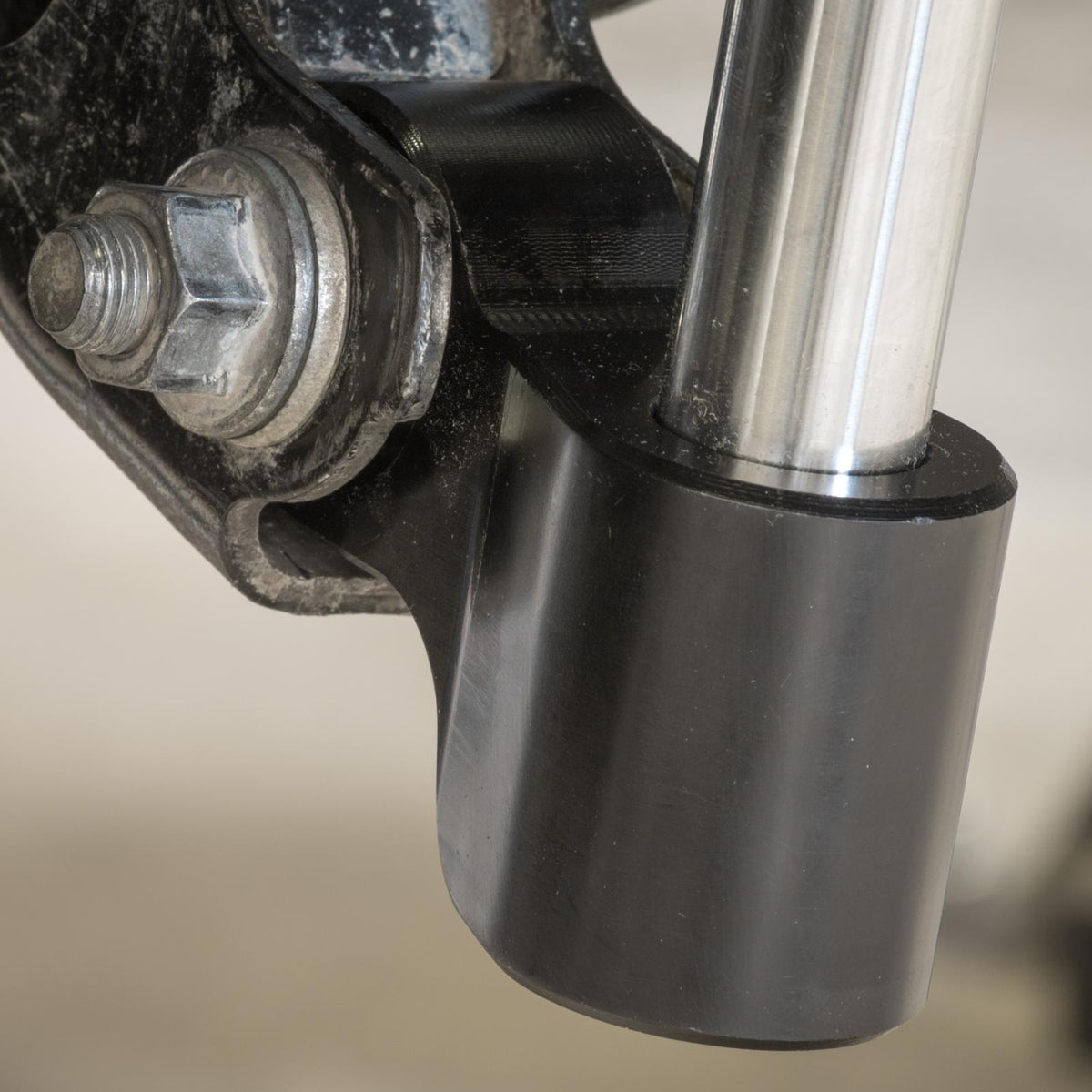

  • ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
  • ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
Details
  • Adjustable Damping: No
  • Bushings Included: Yes
  • Grade Type: Performance
  • Leaf Spring Leaf Quantity: 7.0
  • Maximum Lift Rear: 2.625 Inch
  • Minimum Lift Rear: 1.875 Inch
  • Mounting Hardware Included: Yes
  • Oem Wheels & Tires Fitment: Yes
  • Rear Spring Rate Type: Variable
  • Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
  • Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Material: Steel
  • Add On Part: 252012 - -4 To -10 Hose Shield Kit
