2017-2025 Ford F-250/F-350 Super Duty 4WD 4-5.5 Inch Lift Front V.S. 2.5 Series Coilover Conversion Kit Remote Reservoir W/ CDEV Icon Vehicle Dynamics

2017-2025 Ford F-250/F-350 Super Duty 4WD 4-5.5 Inch Lift Front V.S. 2.5 Series Coilover Conversion Kit Remote Reservoir W/ CDEV Icon Vehicle Dynamics

$3,215.45
$3,215.45 $3,376.22
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2025 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment.

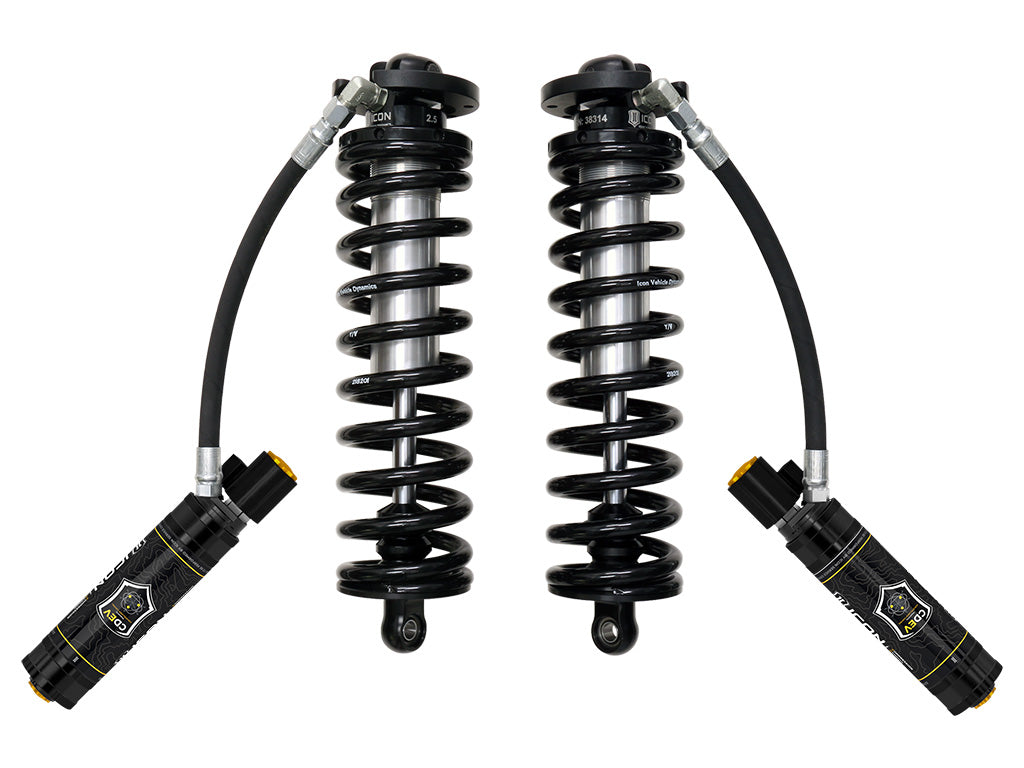

The 2.5 Inch Remote Reservoir Coilover featured in these kits is based off of ICON's 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-tuned as necessary.

The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

Features and Benefits:

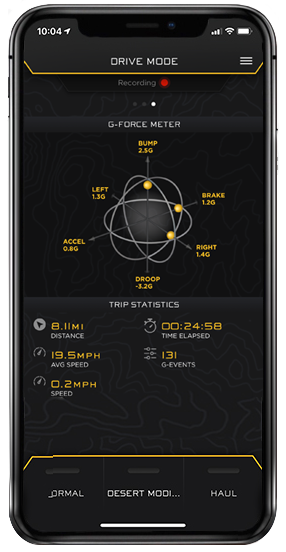

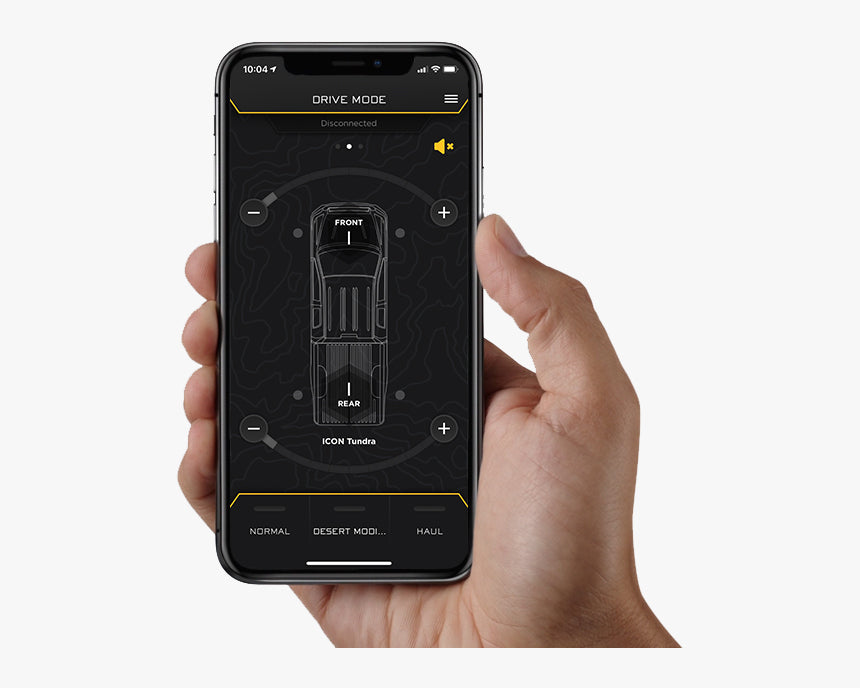

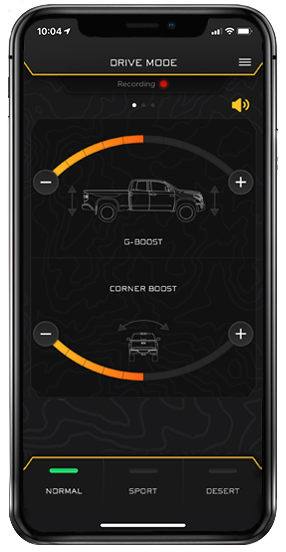

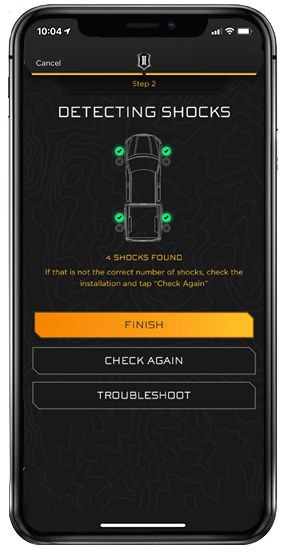

  • Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
  • Bolt-in system fits in OE coil bucket location
  • Ride height adjustable coilovers
  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Decreased body roll and improved on and off-road ride dynamics
  • Vehicle-specific shock valving provides unparalleled ride quality and control
  • Coilover conversion allows for addition of optional secondary shocks
  • Corrosion resistant CAD plated coilover shock body with 7/8 Inch shaft
  • ICON engineered coil springs guaranteed for life against sagging or breakage
  • FK Rod End bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable
Details
  • Material: Aluminum, Steel
  • Active Or Passive Suspension: Active
  • Adjustable Compression: Yes
  • Adjustable Damping: Yes
  • Adjustable Rebound: No
  • Adjustable Ride Height: Yes
  • Assembled: Yes
  • Body Diameter: 2.5 Inch
  • Coil Over Springs Included: Yes
  • Compressed Length: 14.6
  • Cylinder Color: Silver
  • Cylinder Finish: Cadmium Plated
  • Cylinder Material: Steel
  • Damping Adjustment Type: Electronic
  • Damping Type: Oil
  • Dust Shield Included: No
  • Extended Length: 22.56
  • Front Spring Rate: 400 Inch
  • Gas Charged: Yes
  • Grade Type: Performance
  • Includes Bump Stop: Yes
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Eyelet
  • Maximum Lift: 6.25 Inch
  • Maximum Ride Height Raising Distance: 5.5
  • Minimum Lift: 3.5 Inch
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 37 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)
  • Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset
  • Remote Reservoir: Yes
  • Reservoir Style: Remote
  • Self Leveling: No
  • Service Parts: 254100G - 1 Gallon Icon Performance Shock Oil, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 257338 - 7/8 Shaft 12.25 Oal, 8.00 Travel, 191016 - 7.5 Inch Finned Resi Upgrade Kit
  • Shaft Diameter: 0.875
  • Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Center Of Eylet
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate Type: Linear
  • Travel Length: 7.96
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
  • Add On Part: 252012 - -4 To -10 Hose Shield Kit, 37701EP - 17-25 FSD 3-6 Inch Rear 2.5 Vs Pb CDEV Pair, 37705EP - 17-25 FSD 0-3 Inch Rear 2.5 Vs Pb CDEV Pair, 93500 - 15-23 F150 & 17-22 FSD Iic Install Kit, 198001 - Billet Spanner Wrench Kit, 93502 - 23-25 FSD Iic Install Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 191207 - Iic Controler Alt Function Plug Kit, 611003 - 2.5 Resi Doubler Mount 7.5 Inch Kit
