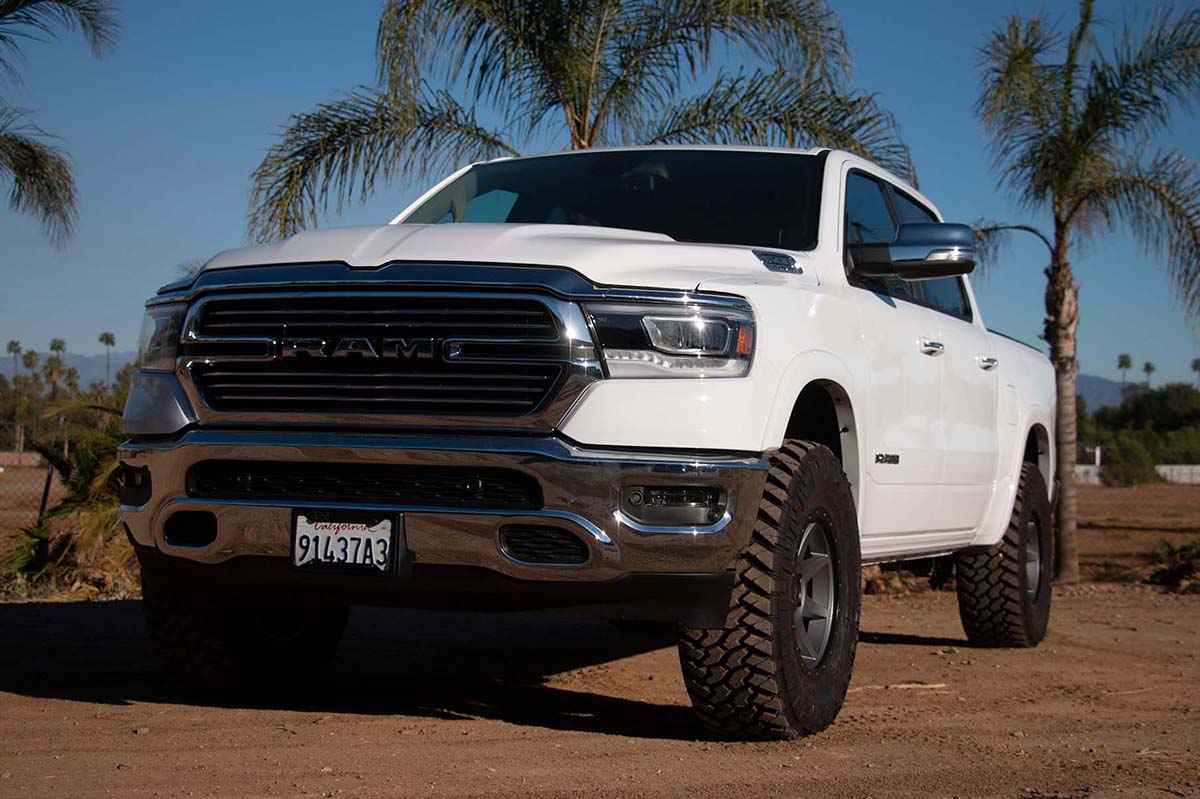

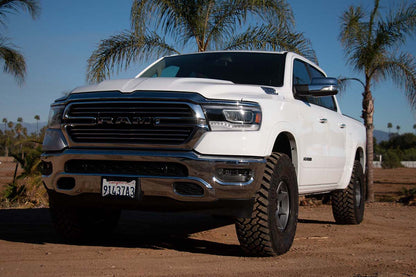

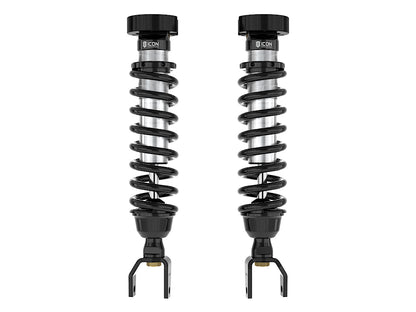

2019-2023 RAM 1500 2-3 Inch Lift Front V.S. 2.5 Series Coilover Kit Internal Reservoir Icon Vehicle Dynamics

2019-2023 RAM 1500 2-3 Inch Lift Front V.S. 2.5 Series Coilover Kit Internal Reservoir Icon Vehicle Dynamics

$1,523.55
$1,523.55 $1,599.73
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

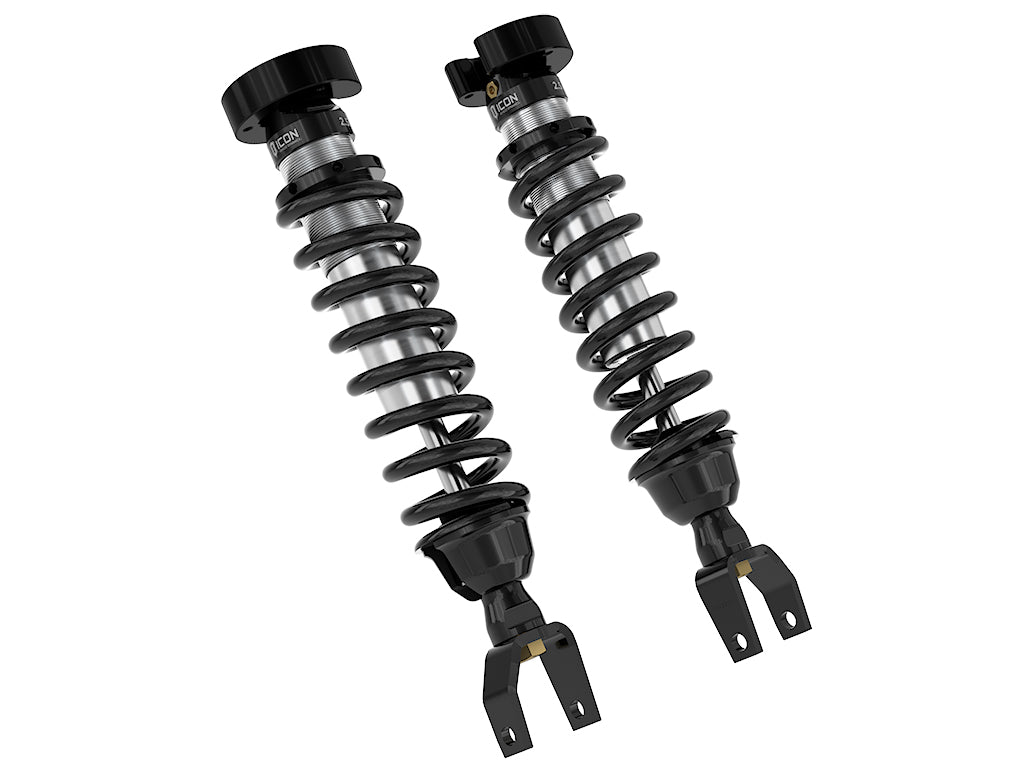

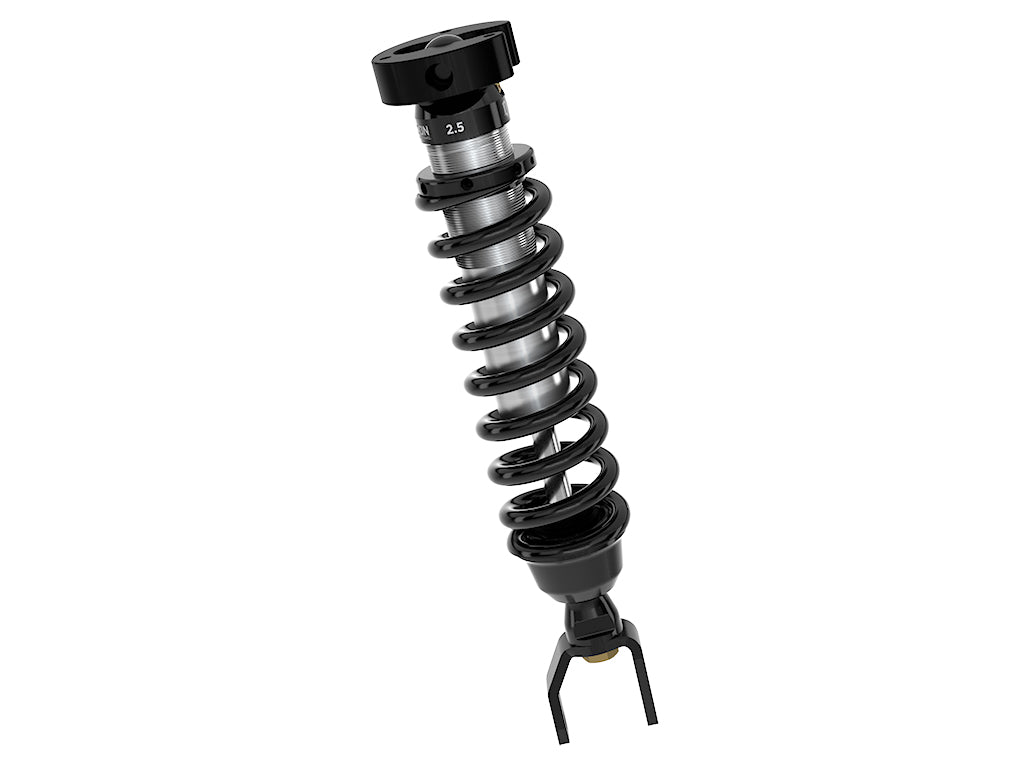

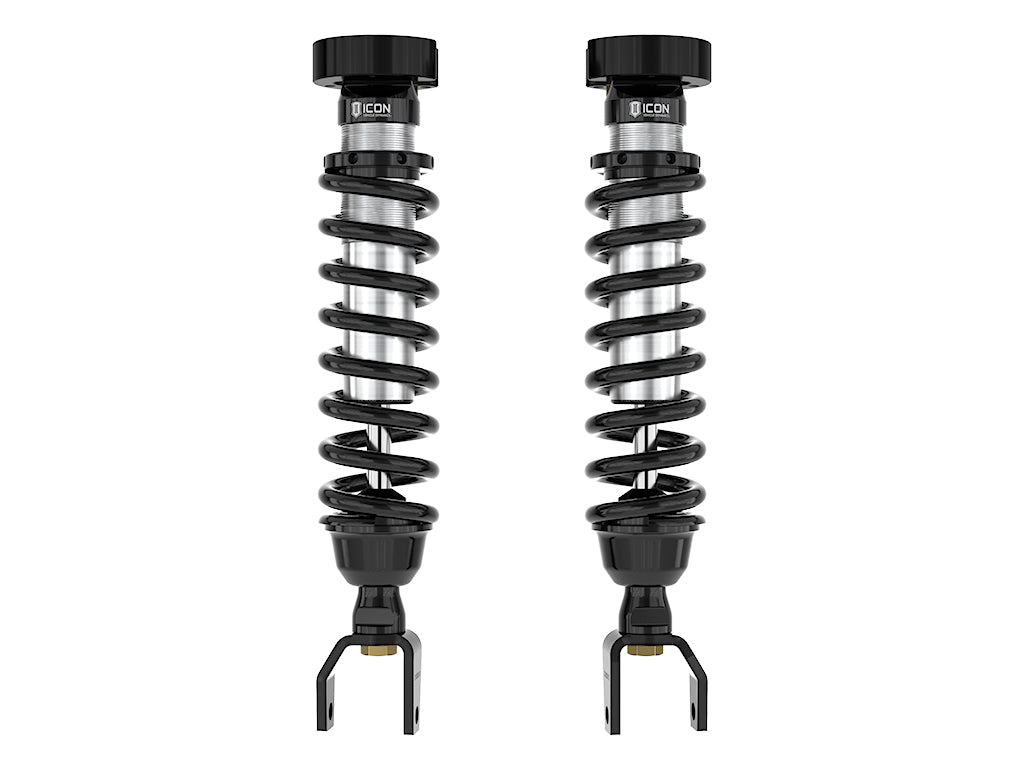

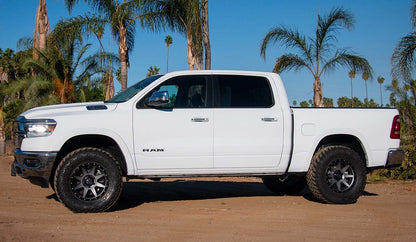

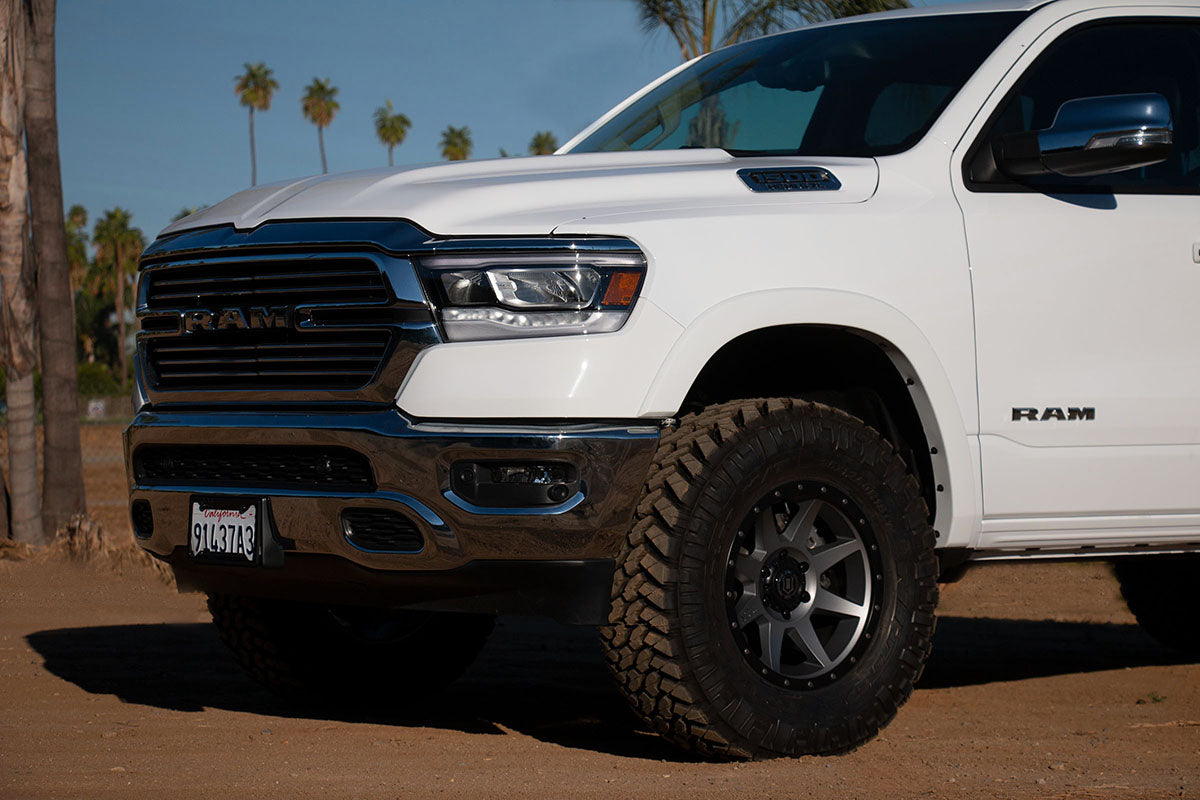

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2023 Ram 1500 trucks. ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3 Inch of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations.

The larger 2.5 Inch shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON 2.0 Aluminum Series or 2.5 Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.

Features and Benefits:
  • Increased wheel travel and ride quality over stock
  • 100 Percent Bolt-on - no drilling, cutting or welding necessary for installation
  • Unique valving developed for the lighter weight and chassis dynamics of the 2019-2023 Ram 1500
  • Vehicle specific tuned for superior shock damping and control

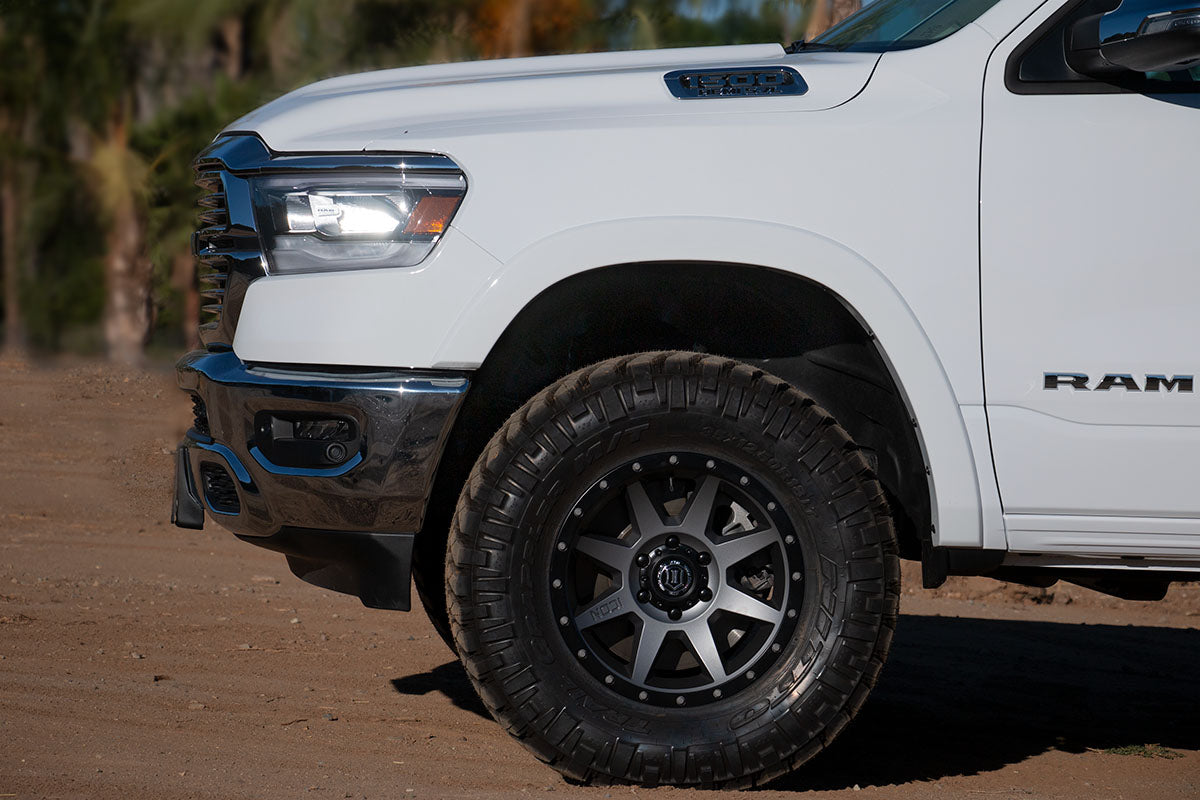

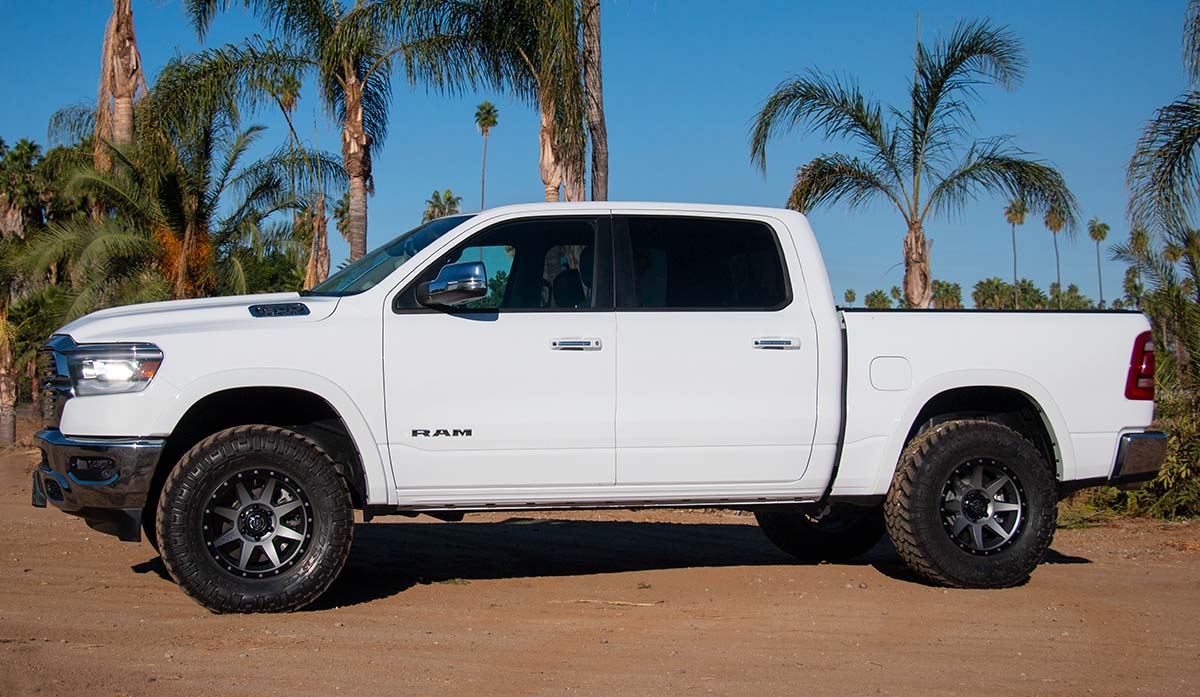

  • Adjustable from 2-3 Inch of front lift height over stock
  • ICON engineered coil springs
  • 6061 Aircraft grade aluminum CNC machined components

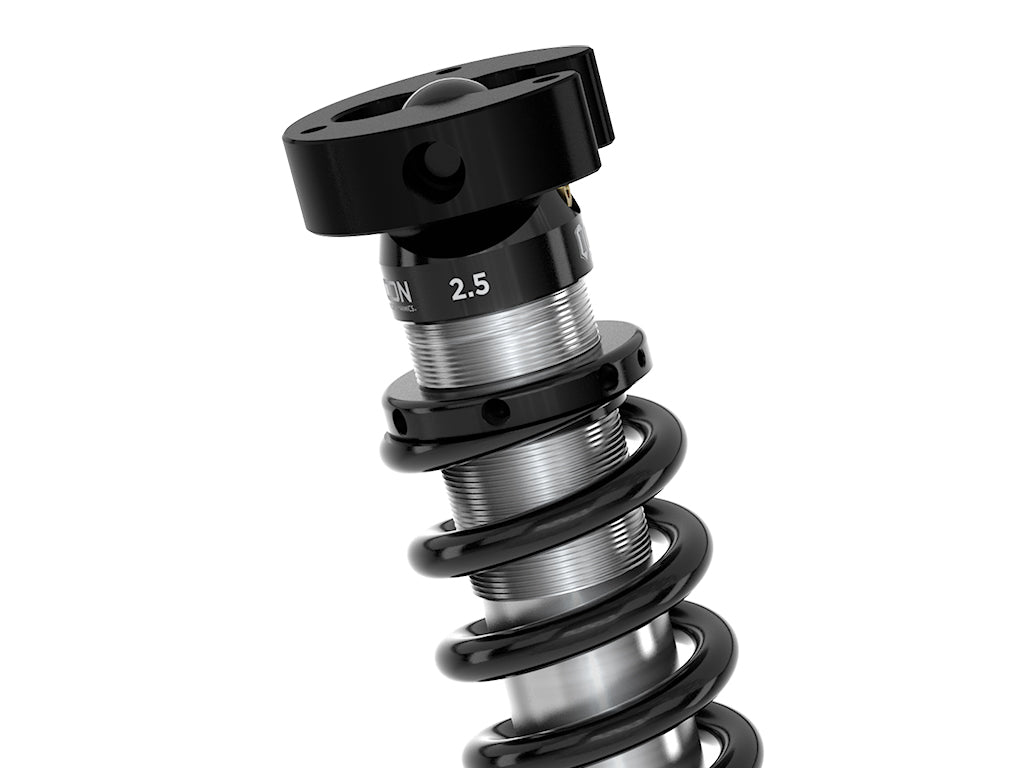

  • Corrosion resistant CAD plated shock body with 7/8 Inch diameter shaft
  • High strength alloy CNC machined lower mounting clevis
  • FK rod end bearings for extended longevity and minimal deflection
Details
  • Material: Aluminum, Steel
  • Active Or Passive Suspension: Passive
  • Adjustable Compression: No
  • Adjustable Damping: No
  • Adjustable Rebound: No
  • Adjustable Ride Height: Yes
  • Assembled: Yes
  • Body Diameter: 2.5 Inch
  • Coil Over Springs Included: Yes
  • Compressed Length: 18.04
  • Cylinder Color: Silver
  • Cylinder Finish: Cadmium Plated
  • Cylinder Material: Steel
  • Damping Type: Oil
  • Dust Shield Included: No
  • Extended Length: 23.77
  • Front Spring Rate: 700 Inch
  • Gas Charged: Yes
  • Grade Type: Performance
  • Includes Bump Stop: Yes
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Clevis
  • Maximum Lift: 3.0 Inch
  • Maximum Ride Height Raising Distance: 3.0
  • Minimum Lift: 2.0 Inch
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Fender Trimming And Modifications Will Be Required.)
  • Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
  • Remote Reservoir: No
  • Reservoir Style: Internal
  • Self Leveling: No
  • Service Parts: 257301 - 7/8 Shaft 10.25 Oal, 6.00 Travel, 252010 - 2.5 Ifp Rebuild Kit
  • Shaft Diameter: 0.875
  • Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Center Of Clevis Holes
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate Type: Linear
  • Travel Length: 5.73
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
  • Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 218550Dj - 09-23 RAM 1500 Tubular UCA Dj Kit, 218560Dj - 19-23 RAM 1500 Billet UCA Dj Kit
