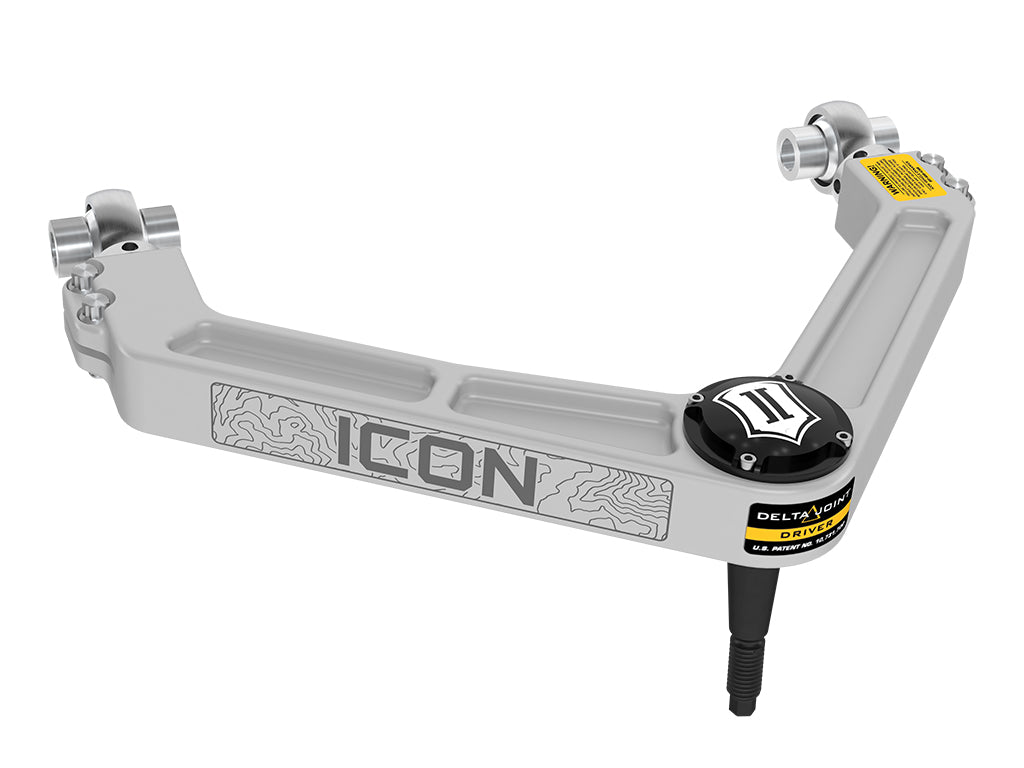

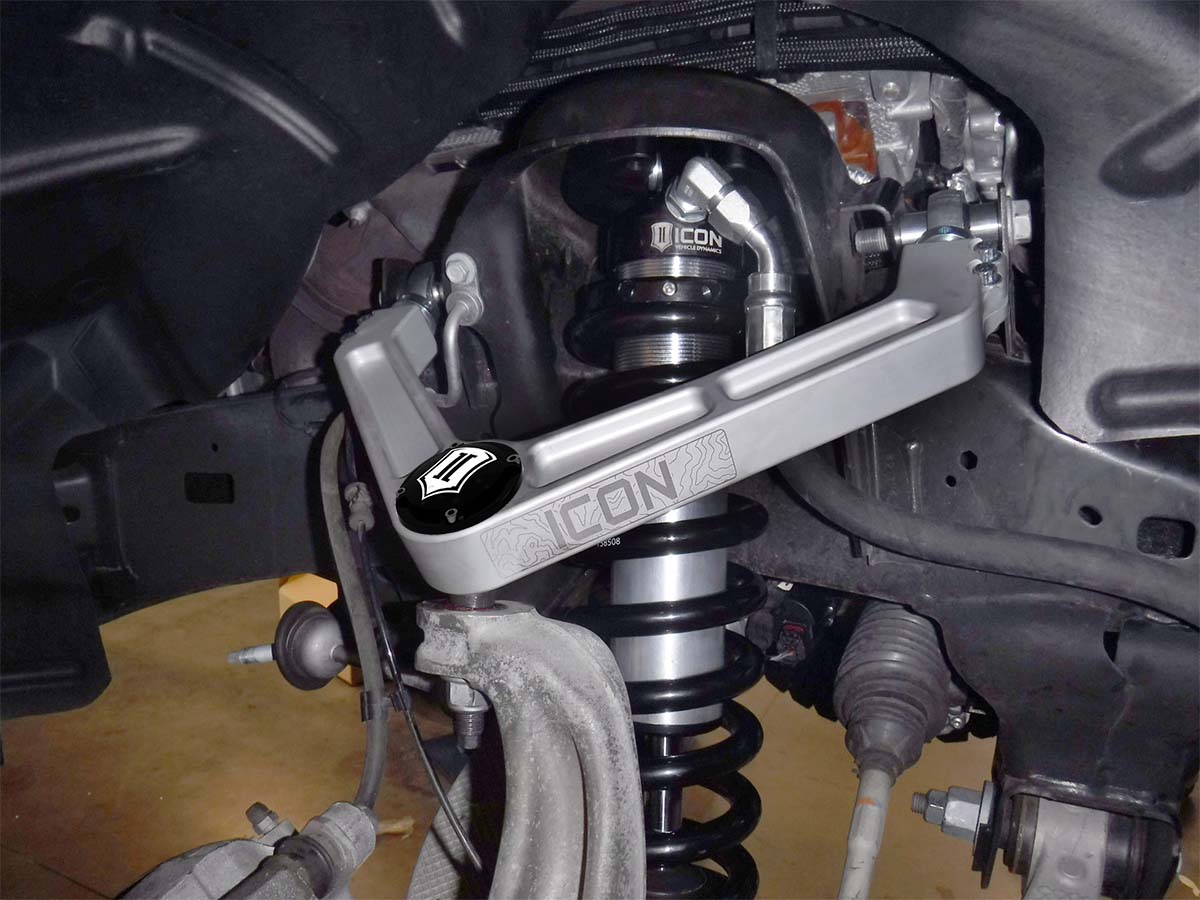

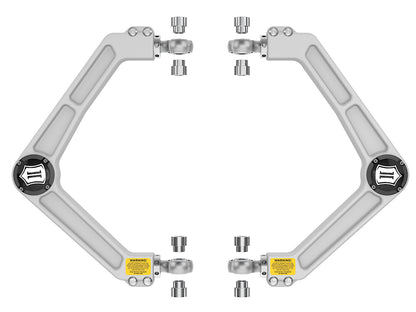

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of 2019-2023 Ram 1500 trucks with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms.

Replacing the OE ball joint with the patented ICON Delta Joint allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4 Inch Heim joints provide precise and smooth function throughout the range of travel while ICON's signature double adjuster sleeve allows for on-vehicle camber and caster adjustment.

Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for the 2019-2023 Ram 1500.

Features and Benefits:
  • These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
  • CNC machined 6061 billet aluminum construction with satin anodized finish
  • Corrects suspension geometry and imptrecves handling on lifted or stock height trucks
  • Quick, precise, on-vehicle adjustment for both caster and camber
  • Patented ICON Delta Joint allows maximum articulation without binding
  • Quality PTFE-lined AAAA Inch FK Rod Ends at chassis pivots for strength and precision driving characteristics
  • Built in O-ring sealed Delta Joint dust cover cap
Details
  • Color: Silver, Gray, Black
  • Material: Steel, Aluminum
  • Finish: Anodized
  • Adjustable: Yes
  • Adjustable Control Arm: Yes
  • Ball Joint Included: Yes
  • Ball Joint Mounting Type: Press In
  • Ball Joint Stud Type: Threaded
  • Bushing Color: Silver
  • Bushing Material: Rod End Bearing
  • Bushings Included: Yes
  • Construction: Billet
  • Control Arm Color: Gray
  • Control Arm Construction: Billet
  • Control Arm Material: Aluminum
  • End 1 Type: Rod End Bearing
  • End 2 Type: Rod End Bearing, Ball Joint
  • Grade Type: Performance
  • Grease Fitting Included: Yes
  • Mounting Hardware Included: Yes
  • Oem Wheels & Tires Fitment: Yes
  • Pre Assembled: Yes
  • Pre Greased: Yes
  • Quantity: Pair
  • Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Fender Trimming And Modifications Will Be Required.)
  • Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.00 Inch Baskspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5.00 Inch Backspace / 0mm Offset
  • Reinforced: Yes
  • Service Parts: 614554 - 04-20 F150/09-Up RAM 1500 Delta Joint Kit
  • Set: Yes
  • Suspension Grade Type: Performance
  • Suspension Type: Spring
  • Add On Part: 191013 - Nipple Greasing Adapter Kit, 191014 - .25 Inch Collar Spanner Pin Wrench
