2021-2023 Ford Bronco Billet Upper Control Arm/Delta Joint Pro Kit Icon Vehicle Dynamics

2021-2023 Ford Bronco Billet Upper Control Arm/Delta Joint Pro Kit Icon Vehicle Dynamics

Awaiting stock, shipping soon
$1,439.95
$1,439.95 $1,511.95
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

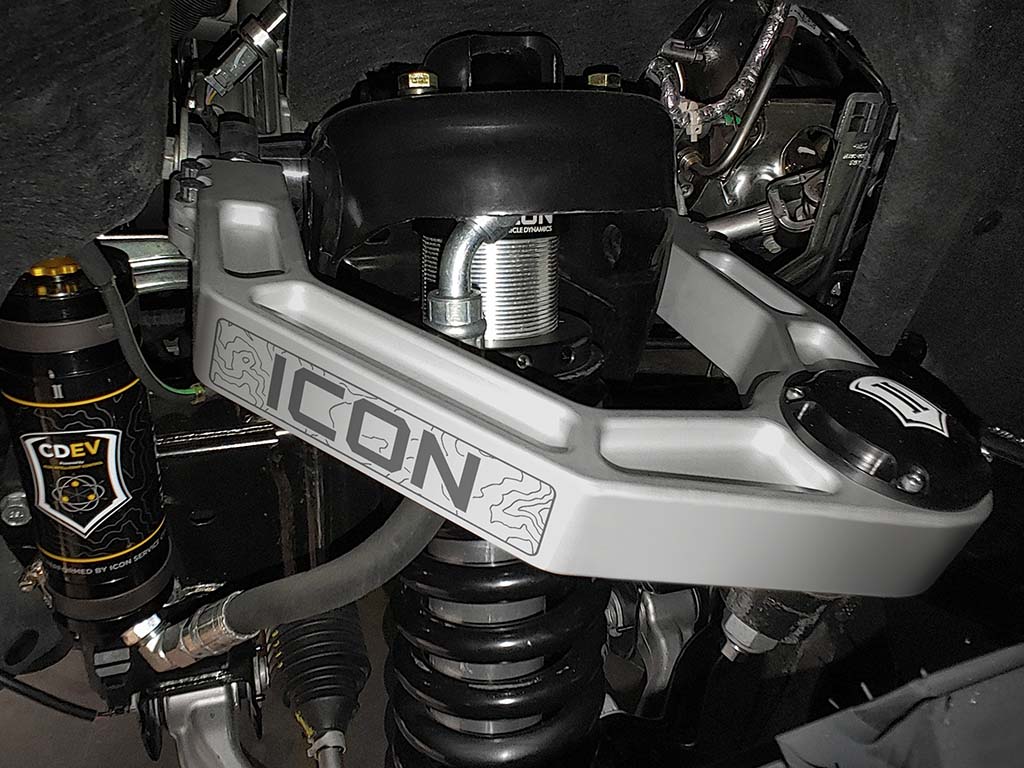

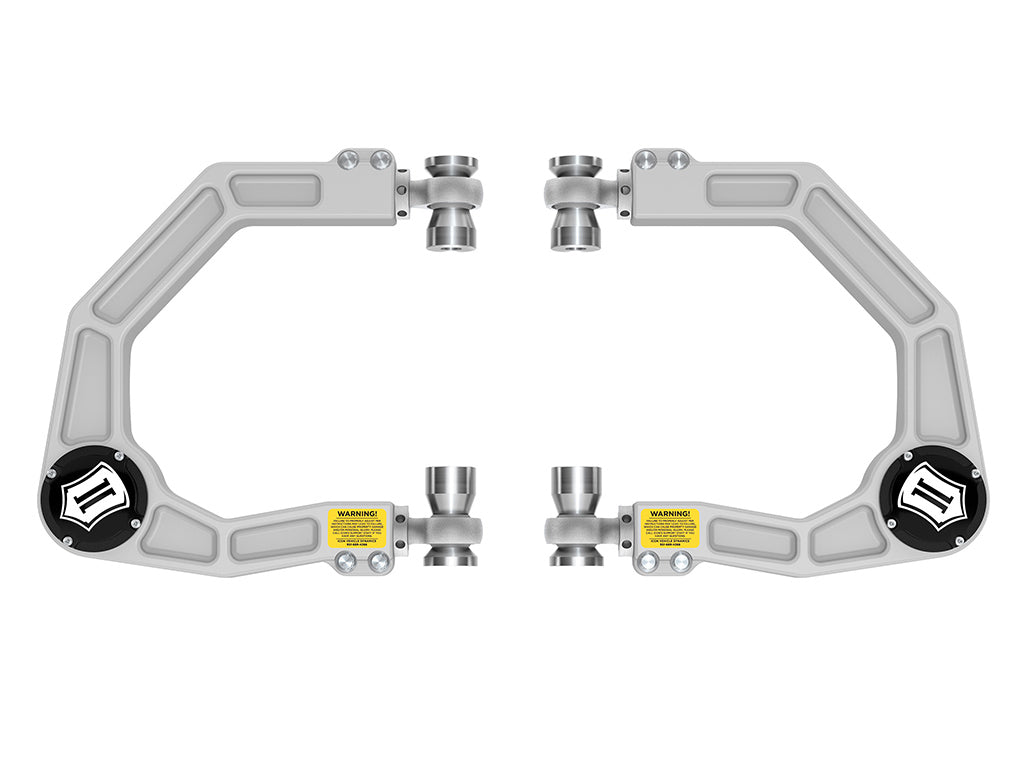

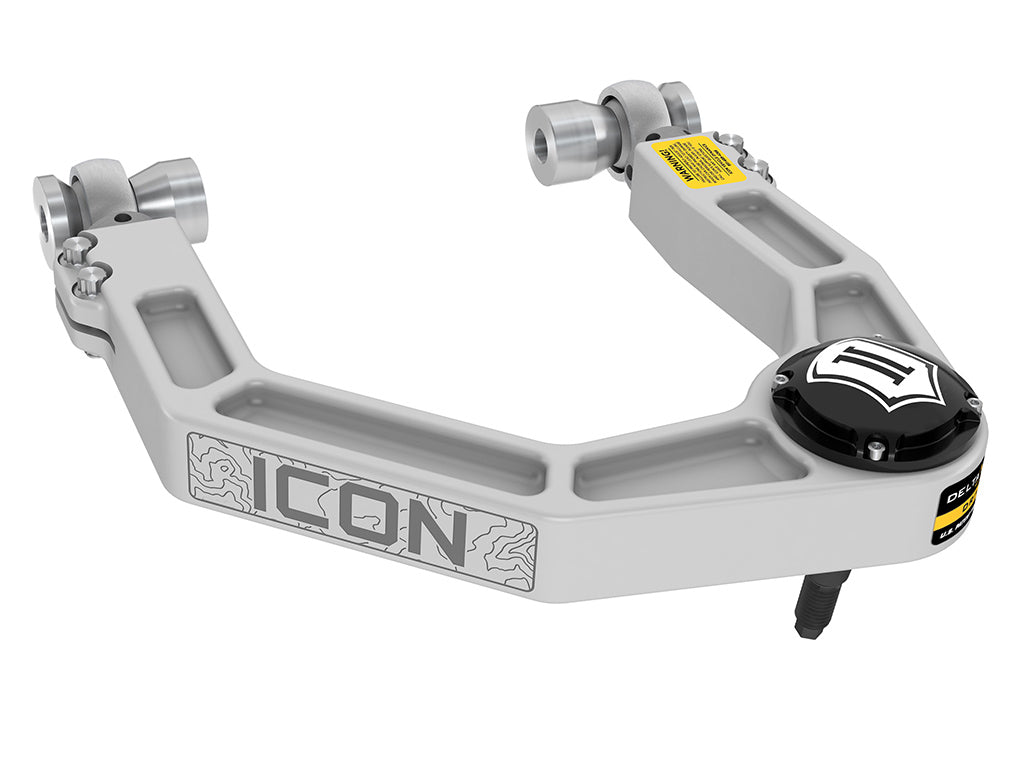

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new 2021-23 Ford Bronco with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms.

Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4 Inch heim joints provide precise and smooth function throughout the range of travel while ICON's signature double adjuster sleeve allows for on-vehicle camber and caster adjustment.

Features and Benefits:
  • Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. Strength and durability are improved by using a larger ball with 56 Percent more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14 Percent improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
  • CNC machined 6061 billet aluminum construction with satin anodized finish
  • Corrects suspension geometry and allows increased travel on lifted or stock height Broncos
  • Quick, precise, on-vehicle adjustment for both caster and camber
  • Delta Joint PRO allows maximum articulation without binding
  • Delta Joint PRO is 100 Percent serviceable and rebuildable
  • FK Rod Ends at chassis pivots for strength and precision driving characteristics
  • Built in O-ring sealed dust cover cap
Details
  • Color: Silver
  • Material: Aluminium
  • Finish: Anodized
  • Adjustable: Yes
  • Adjustable Control Arm: Yes
  • Attachments Included: No
  • Ball Joint Included: Yes
  • Ball Joint Mounting Type: Press In
  • Ball Joint Stud Type: Threaded
  • Bushing Color: Silver
  • Bushing Material: Rod End Bearing
  • Bushings Included: Yes
  • Construction: Billet
  • Control Arm Color: Silver
  • Control Arm Construction: Billet
  • Control Arm Material: Aluminum
  • Grade Type: Performance
  • Grease Fitting Included: Yes
  • Mounting Bracket Included: No
  • Mounting Hardware Included: Yes
  • Oem Wheels & Tires Fitment: No
  • Pre Assembled: Yes
  • Pre Greased: Yes
  • Quantity: Pair
  • Recommended Aftermarket Tires: 35 Inch X 12.50 Inch
  • Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18 Inch X 9 Inch With 5 Inch Backspace / 0mm Offset, Icon Alloys - 20 Inch X 9 Inch With 5 Inch Backspace / 0mm Offset
  • Reinforced: Yes
  • Set: Yes
  • Suspension Grade Type: Performance
  • Suspension Type: Spring
  • Add On Part: 191014 - .25 Inch Collar Spanner Pin Wrench, 191013 - Nipple Greasing Adapter Kit
