2021-2023 Ford Bronco Front 1.5-4 Inch Lift V.S. 2.5 Series Coilover Kit Internal Reservoir Icon Vehicle Dynamics

2021-2023 Ford Bronco Front 1.5-4 Inch Lift V.S. 2.5 Series Coilover Kit Internal Reservoir Icon Vehicle Dynamics

Awaiting stock, shipping soon
$1,713.87
$1,713.87 $1,799.56
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

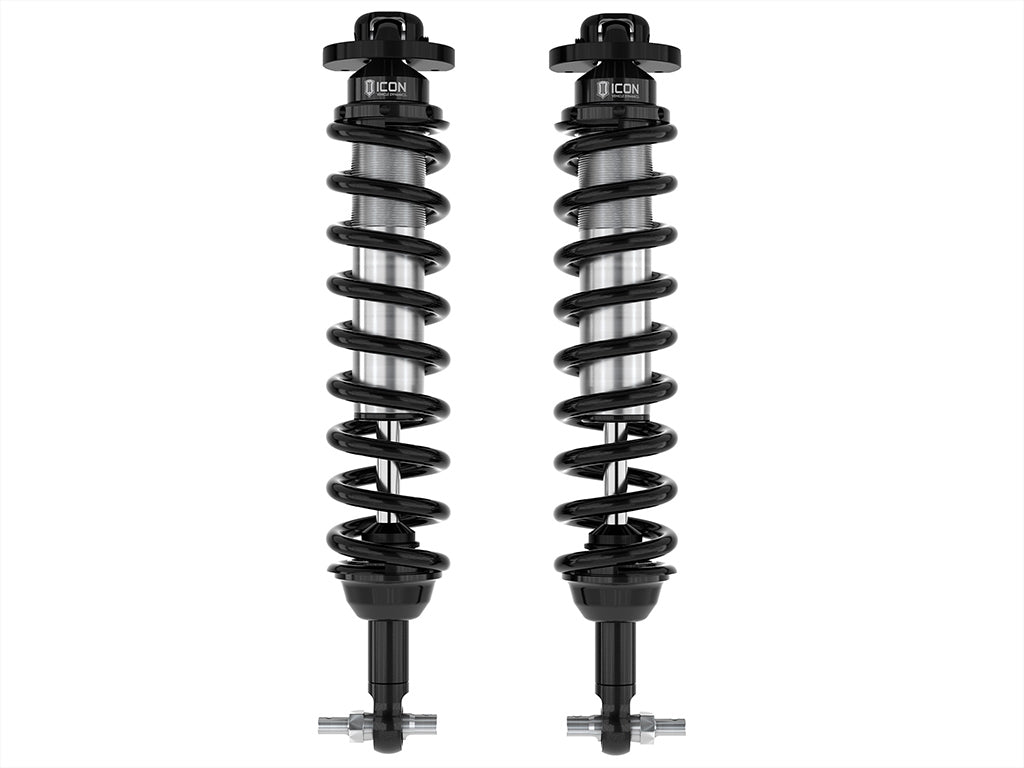

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4 Inch of lift height adjustability on Broncos without the Sasquatch package or 2-3 Inch of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations.

ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.5 Series rear coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

Features and Benefits:
  • Increased wheel travel (up to 11.5 Inch) and ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • Adjustable up to 3-4 Inch of front lift height on non-Sasquatch or 2-3 Inch of front lift on Sasquatch Broncos
  • ICON engineered coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • High strength alloy CNC machined lower bar pin
  • Fully rebuildable and re-tunable
  • 100 Percent Bolt-on - no drilling, cutting or welding necessary for installation
Details
  • Material: Steel, Aluminum
  • Active Or Passive Suspension: Passive
  • Adjustable Compression: No
  • Adjustable Damping: No
  • Adjustable Rebound: No
  • Adjustable Ride Height: Yes
  • Assembled: Yes
  • Body Diameter: 2.5 Inch
  • Coil Over Springs Included: Yes
  • Compressed Length: 18.14
  • Cylinder Color: Silver
  • Cylinder Finish: Cadmium Plated
  • Cylinder Material: Steel
  • Damping Type: Oil
  • Dust Shield Included: No
  • Extended Length: 24.53
  • Front Spring Rate: 500 Inch
  • Gas Charged: Yes
  • Grade Type: Performance
  • Includes Bump Stop: Yes
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Bar Pin
  • Maximum Lift: 4.0 Inch
  • Maximum Ride Height Raising Distance: 4.0
  • Minimum Lift: 1.5 Inch
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: (With Sasquatch Package): 35 Inch X 12.50 Inch (37 Inch Tires Require Coilover Bump Stop Spacers Along With Minor Trimming), (Without Sasquatch Package): 35 Inch X 12.50 Inch (Recommend High Clearance Crash Bars Part Number 42000, 37 Inch Tires Require Coilover Bump Stop Spacers Along With Trimming And Modifications)
  • Recommended Aftermarket Wheels: (With Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, (Without Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, (Without Sasquatch Package): Icon Alloys - 18x9 Inch W/ 6.00 Inch Backspace / 25mm Offset, (With Sasquatch Package): Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, (With Sasquatch Package): Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
  • Remote Reservoir: No
  • Reservoir Style: Internal
  • Self Leveling: No
  • Service Parts: 252010 - 2.5 Ifp Rebuild Kit
  • Shaft Diameter: 0.875
  • Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Flat On Bar Pin
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate Type: Linear
  • Travel Length: 6.39
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
  • Add On Part: 42000 - 21-23 Bronco High Clearance Crash Bar Kit, 45212 - 21-23 Bronco XD Tie Rod Kit, 198001 - Billet Spanner Wrench Kit, 48500DJ - 21-23 Bronco Billet UCA Dj Pro Kit, 611075 - C/O Bump Stop Spacer Kit 7/8 Inch Shaft 1/2 Inch Tall, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 198000 - 2 Pin Coilover Spanner Wrench Kit, 48400DJ - 21-23 Bronco Tubular UCA Dj Pro Kit
