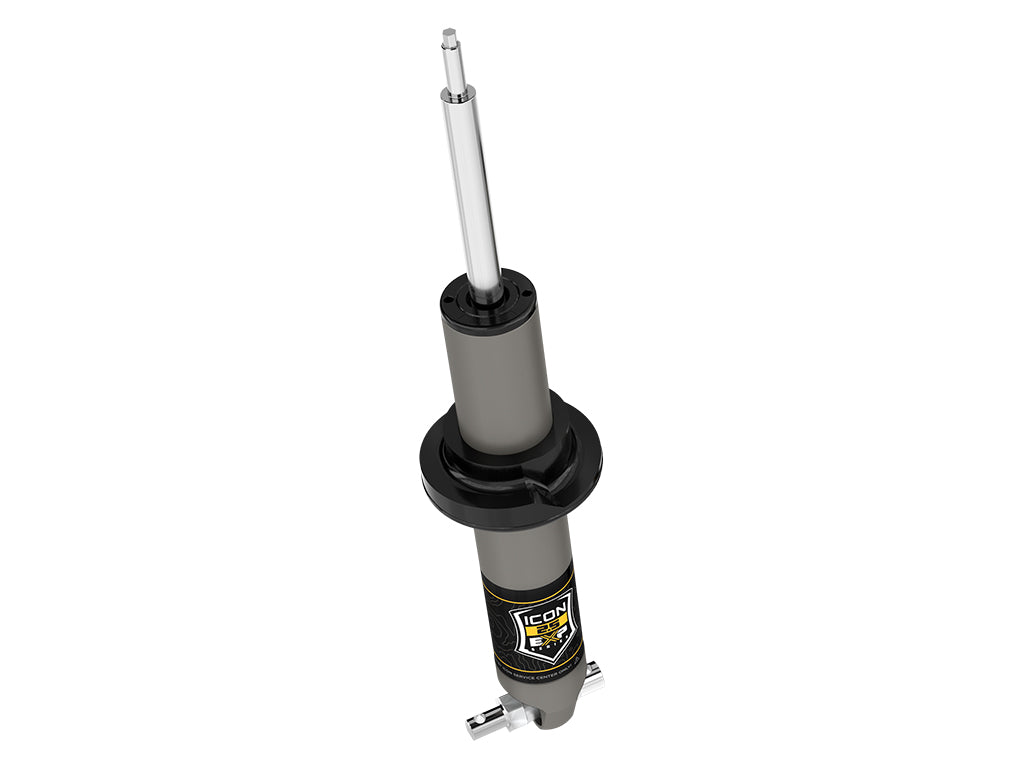

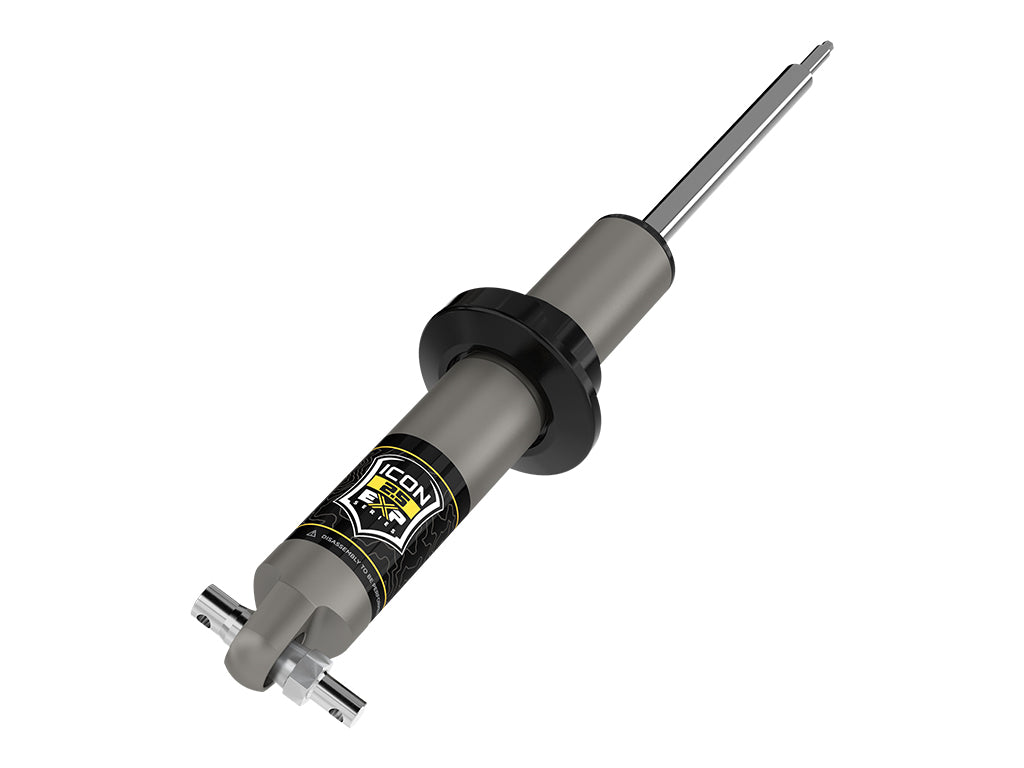

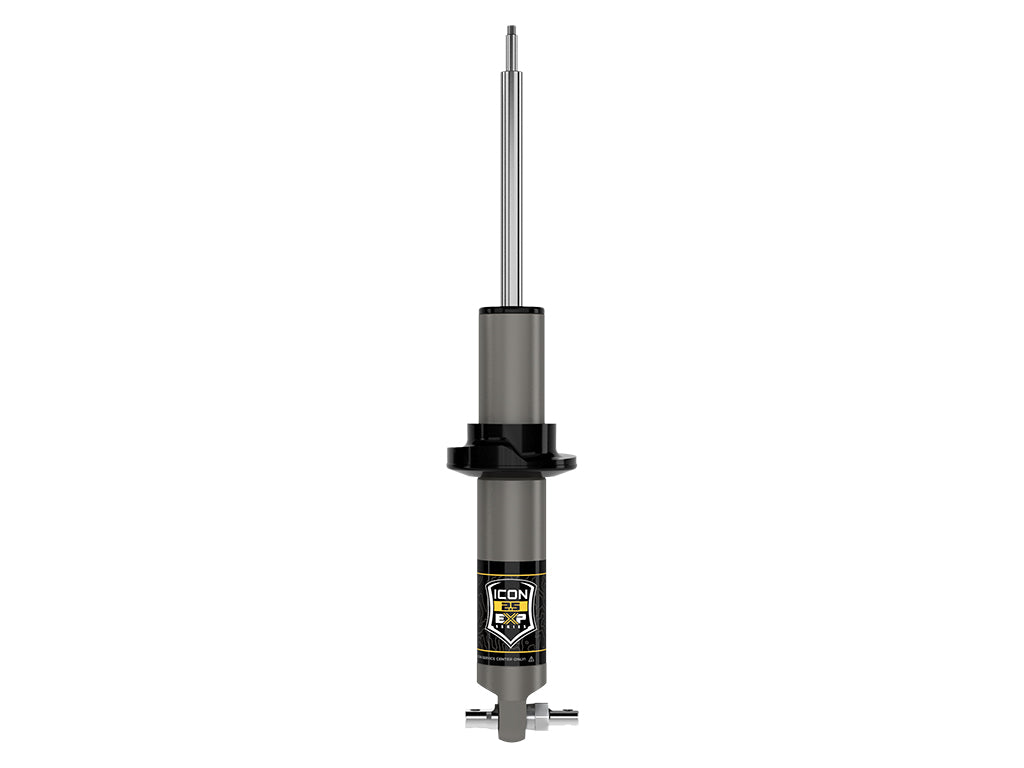

The 2021-2023 Ford Bronco EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco's factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.

Features and Benefits:
  • EXP Series is based on ICON's proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Bronco's OE upper shock and spring mounts.
  • The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically design for fit each of the Bronco model's OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 1.375 Inch to 3 Inch of lift over stock on Bronco's equipped with the OE HOSS 1.0 suspension package.
  • EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
  • HOSS 1.0 is Ford's base suspension system for Broncos with the Base, Big Bend, Outer Banks and Black Diamond trim levels WITHOUT the Sasquatch package. HOSS 1.0 is most easily identified by the BLACK shock bodies of the OE shocks.
  • Vehicle specific design for 2021-2023 Ford Bronco with HOSS 1.0 Suspension Package
  • Vehicle specific tuned for superior shock damping and control
  • 2.5 Aluminum Series Shock with Internal Reservoir
  • Adjustable ride heights from 1.375-3 Inch of front lift over stock with the use of snap ring
  • Utilizes factory coil and coil hardware
  • Inverted shaft up design featuring 7/8 Inch diameter, induction hardened, chrome plated shaft
  • One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
  • CNC machined 6061 aluminum components with a black anodized finish
  • PTFE lined spherical bearing for extended longevity and minimal deflection
  • High strength alloy CNC machined lower bar pin
  • 100 Percent Bolt-on - no cutting or welding necessary for installation
  • Fully rebuildable and re-tunable
Details
  • Material: Aluminum, Steel
  • Active Or Passive Suspension: Passive
  • Adjustable Compression: No
  • Adjustable Damping: No
  • Adjustable Rebound: No
  • Adjustable Ride Height: Yes
  • Assembled: No
  • Body Diameter: 2.5 Inch
  • Coil Over Springs Included: No
  • Coil Spring Included: No
  • Coil Spring InsulatorS Included: No
  • Compressed Length: 16.93
  • Cylinder Color: Gray
  • Cylinder Finish: Hard Anodized
  • Cylinder Material: Aluminum
  • Cylinder Outside Diameter: 2.5
  • Damping Type: Oil
  • Dust Shield Included: No
  • Extended Length: 23.5
  • Gas Charged: Yes
  • Grade Type: Performance
  • Includes Bump Stop: Yes
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Bar Pin
  • Maximum Lift: 3.0 Inch
  • Maximum Ride Height Raising Distance: 3.0
  • Minimum Lift: 1.375 Inch
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Requires High Clearance Crash Bars, Icon Part Number 42000. 37 Inch Tire Packages Require Trimming And Modifications)
  • Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, Icon Alloys - 18x9 Inch W/ 6.00 Inch Backspace / 25mm Offset
  • Remote Reservoir: No
  • Reservoir Style: Internal
  • Self Leveling: No
  • Service Parts: 252010 - 2.5 Ifp Rebuild Kit
  • Shaft Diameter: 0.875
  • Shaft Material: Chrome
  • Shock Absorber Body End Measuring Point: Flat On Bar Pin
  • Shock Absorber Rod End Measuring Point: Shoulder Of Stem
  • Travel Length: 6.57
  • Upper Mount Type: Stem
  • Valving Type: Digressive
  • Add On Part: 45212 - 21-23 Bronco XD Tie Rod Kit, 611082 - Exp 1 Inch Shaft Bump Extension, 48500DJ - 21-23 Bronco Billet UCA Dj Pro Kit, 42000 - 21-23 Bronco High Clearance Crash Bar Kit, 48400DJ - 21-23 Bronco Tubular UCA Dj Pro Kit
