2021-2023 Ford Bronco Hoss 2.0 Pkg Front 0-2 Inch Lift 2.5 Exp Series Coilover Icon Vehicle Dynamics

2021-2023 Ford Bronco Hoss 2.0 Pkg Front 0-2 Inch Lift 2.5 Exp Series Coilover Icon Vehicle Dynamics

Awaiting stock, shipping soon
$535.55
$535.55 $562.33
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

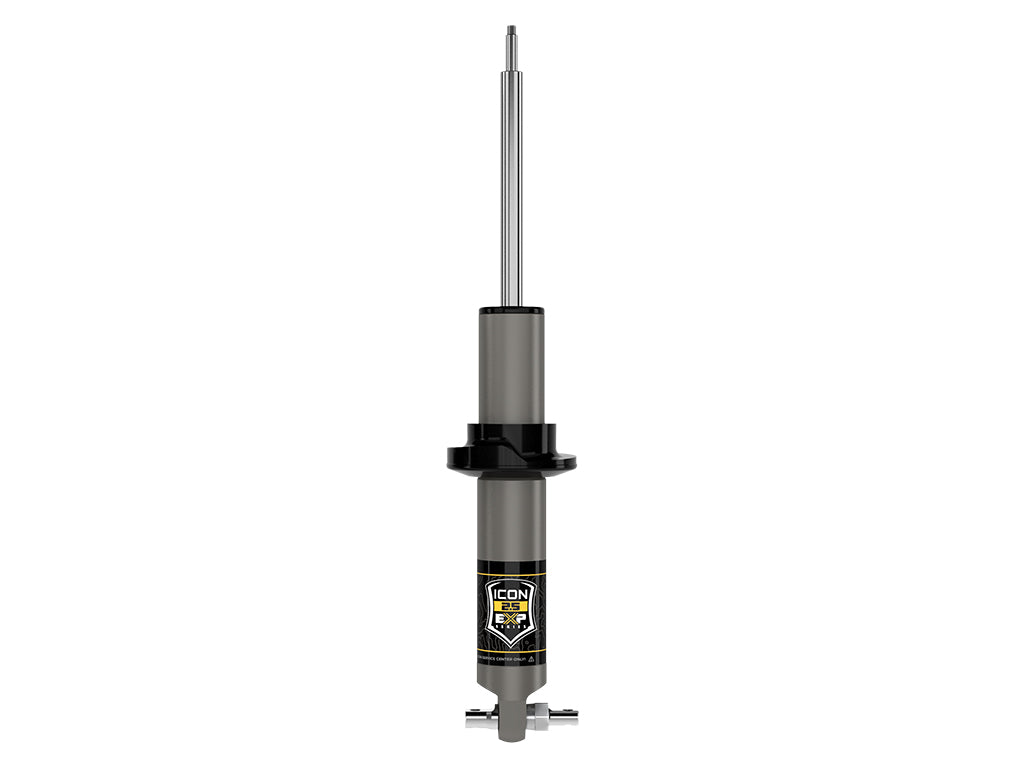

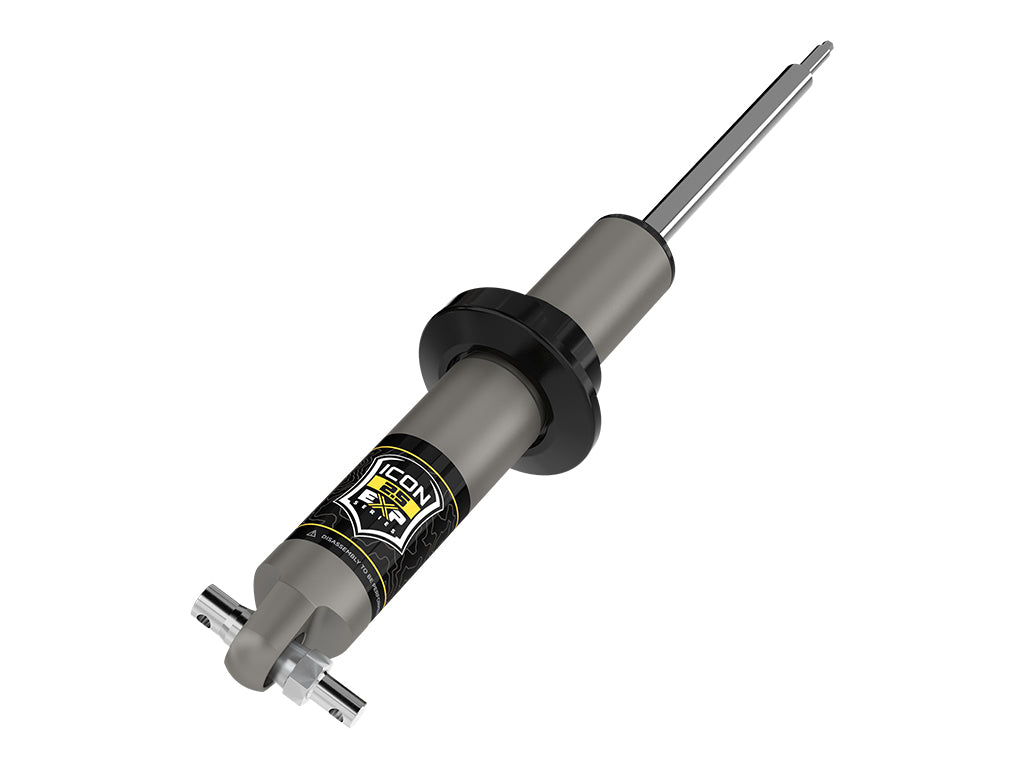

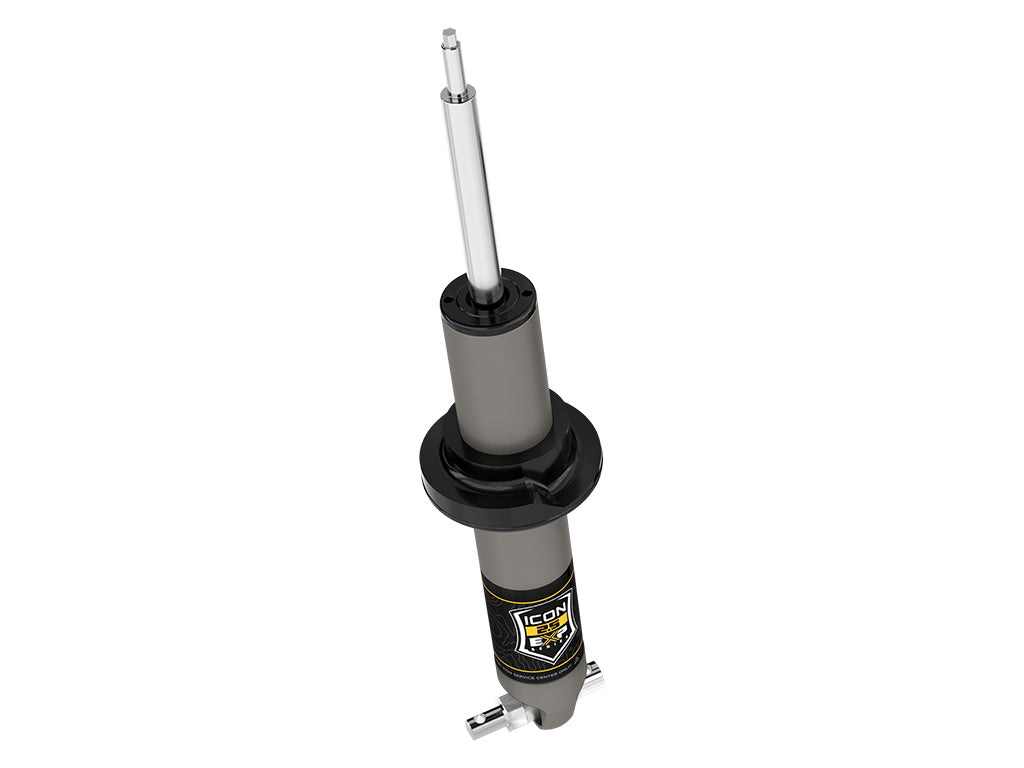

The 2021-2023 Ford Bronco EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco's factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.

Features and Benefits:

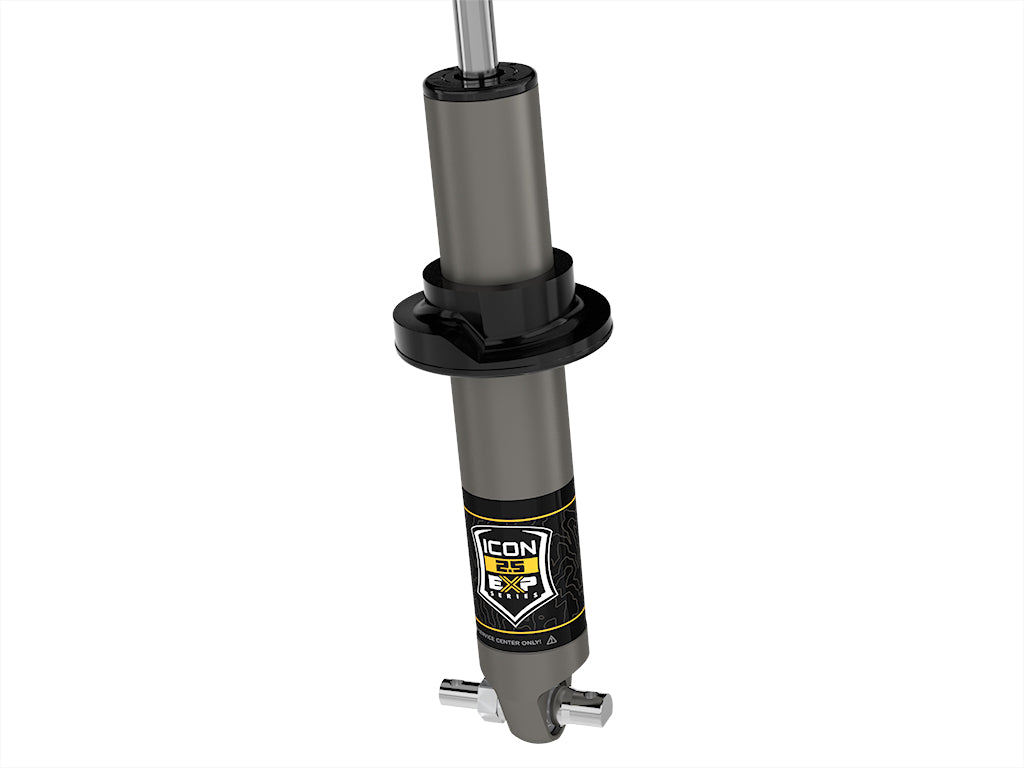

  • EXP Series is based on ICON's proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Bronco's OE upper shock and spring mounts.
  • The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically design for fit each of the Bronco model's OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0 Inch to 2 Inch of lift over stock on Bronco's equipped with the OE HOSS 2.0 suspension package.
  • EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
  • HOSS 2.0 is Ford's upgraded suspension system for Broncos of the Base, Big Bend, Outer Banks and Black Diamond trim levels WITH the optional Sasquatch package, and it is also standard on Badlands, Wildtrak, First Edition and Everglades. HOSS 2.0 is most easily identified by the YELLOW shock bodies of the OE shocks.
  • Vehicle specific design for 2021-2023 Ford Bronco with HOSS. 2.0 Suspension Package
  • Vehicle specific tuned for superior shock damping and control
  • 2.5 Aluminum Series Shock with Internal Reservoir
  • Adjustable ride heights from 0-2 Inch of front lift over stock with the use of snap ring
  • Utilizes factory coil and coil hardware
  • Inverted shaft up design featuring 7/8 Inch diameter, induction hardened, chrome plated shaft
  • One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
  • CNC machined 6061 aluminum components with a black anodized finish
  • PTFE lined spherical bearing for extended longevity and minimal deflection
  • High strength alloy CNC machined lower bar pin
  • 100 Percent Bolt-on - no cutting or welding necessary for installation
  • Fully rebuildable and re-tunable
Details
  • Material: Steel, Aluminum
  • Active Or Passive Suspension: Passive
  • Adjustable Compression: No
  • Adjustable Damping: No
  • Adjustable Height: Yes
  • Adjustable Rebound: No
  • Body Diameter: 2.5 Inch
  • Boot Included: No
  • Coil Over Springs Included: No
  • Cylinder Color: Gray
  • Cylinder Finish: Hard Anodized
  • Cylinder Material: Aluminum
  • Damping Type: Oil
  • Dust Shield: No
  • Dust Shield Included: No
  • Gas Charged: Yes
  • Grade Type: Performance
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Bar Pin
  • Maximum Lift: 2.0 Inch
  • Minimum Lift: 0.0 Inch
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: (Without Sasquatch Package): 35 Inch X 12.50 Inch (Requires High Clearance Crash Bars, Icon Part Number 42000. 37 Inch Tire Packages Require Trimming And Modifications), (With Sasquatch Package): 35 Inch X 12.50 Inch (37 Inch Tire Packages May Require Fender Trimming And Modifications)
  • Recommended Aftermarket Wheels: (Without Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, (With Sasquatch Package): Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, (With Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, (With Sasquatch Package): Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
  • Remote Reservoir: No
  • Reservoir Style: Internal
  • Self Leveling: No
  • Service Parts: 252010 - 2.5 Ifp Rebuild Kit
  • Shaft Diameter: 0.875
  • Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Flat On Bar Pin
  • Spring Color: Black
  • Spring Rate Type: Linear
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
  • Add On Part: 611082 - Exp 1 Inch Shaft Bump Extension, 48500DJ - 21-23 Bronco Billet UCA Dj Pro Kit, 42000 - 21-23 Bronco High Clearance Crash Bar Kit, 45212 - 21-23 Bronco XD Tie Rod Kit, 48400DJ - 21-23 Bronco Tubular UCA Dj Pro Kit
