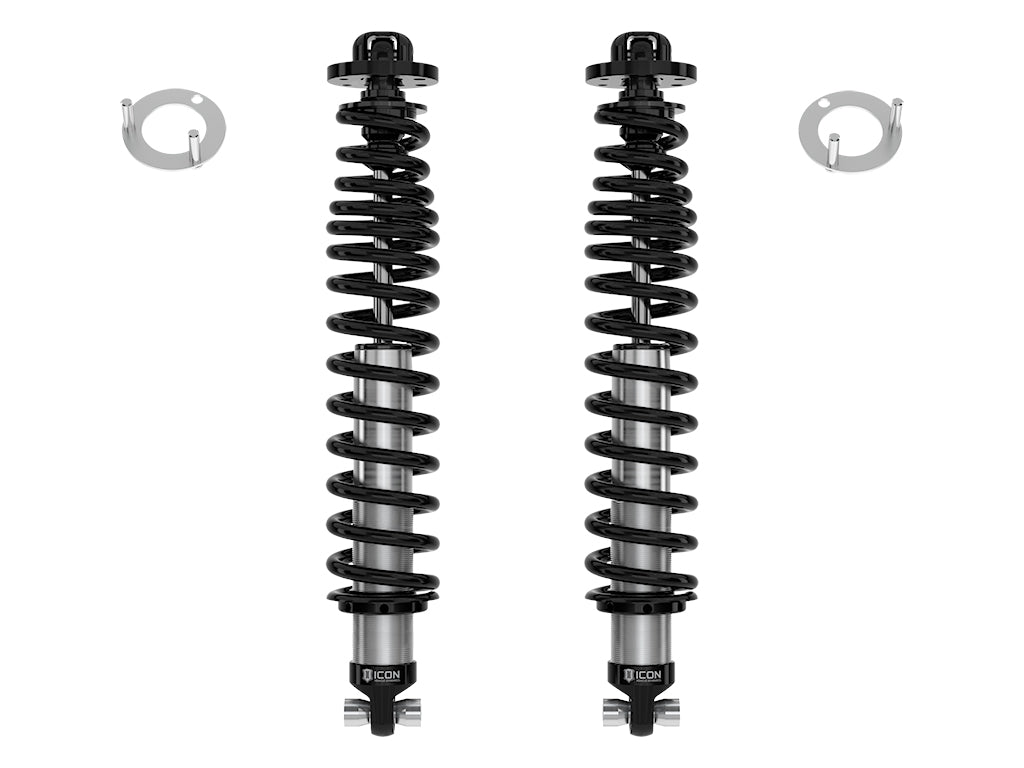

2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Internal Reservoir Icon Vehicle Dynamics

2021-2023 Ford Bronco Rear 1.25-3 Inch Lift V.S. 2.5 Series Coilover Kit Internal Reservoir Icon Vehicle Dynamics

$1,767.95
$1,767.95 $1,856.35
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3 Inch of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25 Inch of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations.

ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance.

When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

Features and Benefits:
  • Increased wheel travel (up to 14 Inch) and ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • Adjustable up to 2-3 Inch of rear lift height on non-Sasquatch or 1.25-2.25 Inch of rear lift on Sasquatch Broncos
  • Unique ICON engineered triple rate coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shaft
  • FK rod end bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable
  • 100 Percent Bolt-on - no drilling, cutting or welding necessary for installation
Details
  • Material: Steel, Aluminum
  • Active Or Passive Suspension: Passive
  • Adjustable Compression: No
  • Adjustable Damping: No
  • Adjustable Height: Yes
  • Adjustable Rebound: No
  • Body Diameter: 2.5 Inch
  • Boot Included: No
  • Coil Over Springs Included: Yes
  • Cylinder Color: Silver
  • Cylinder Finish: Cadmium Plated
  • Cylinder Material: Steel
  • Damping Type: Oil
  • Dust Shield: No
  • Dust Shield Included: No
  • Gas Charged: Yes
  • Grade Type: Performance
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Eyelet
  • Maximum Lift: 3.0 Inch
  • Minimum Lift: 1.25 Inch
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: (Without Sasquatch Package): 35 Inch X 12.50 Inch (37 Inch Tires Require Coilover Bump Stop Spacers), (With Sasquatch Package): 35 Inch X 12.50 Inch (37 Inch Tires Require Coilover Bump Stop Spacers)
  • Recommended Aftermarket Wheels: (Without Sasquatch Package): Icon Alloys - 18x9 Inch W/ 6.00 Inch Backspace / 25mm Offset, (With Sasquatch Package): Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, (Without Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset, (With Sasquatch Package): Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, (With Sasquatch Package): Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
  • Remote Reservoir: No
  • Reservoir Style: Internal
  • Self Leveling: No
  • Service Parts: 252010 - 2.5 Ifp Rebuild Kit
  • Shaft Diameter: 0.875
  • Shock Absorber Body End Measuring Point: Center Of Eylet
  • Shock Absorber Rod End Measuring Point: Top Of Mounting Plate
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate Type: Progressive Triple Rate
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
  • Add On Part: 198001 - Billet Spanner Wrench Kit, 611074 - C/O Bump Stop Spacer Kit 7/8 Inch Shaft 3/8 Inch Tall, 198000 - 2 Pin Coilover Spanner Wrench Kit, 44200T - 21-23 Bronco Rear Adj Track Bar Kit
