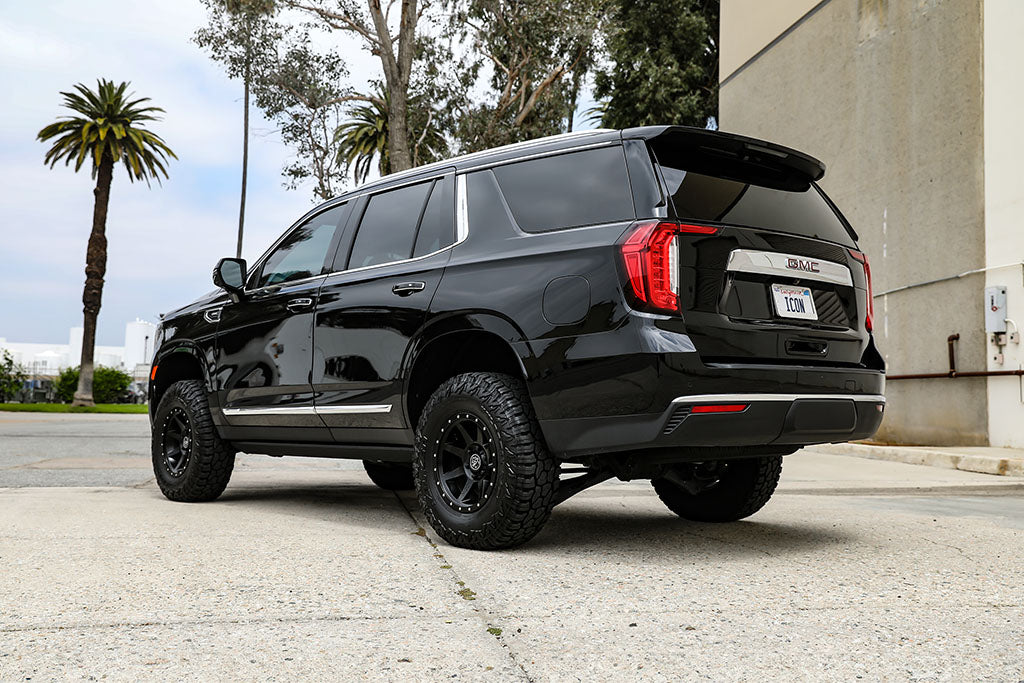

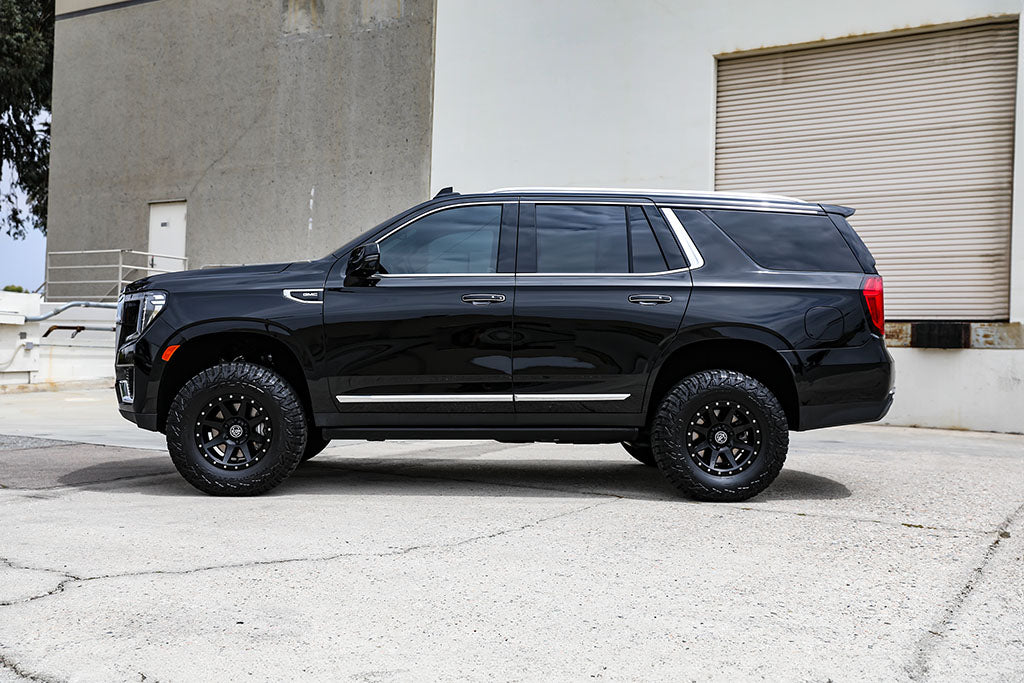

2021-2023 Tahoe & Suburban/2021-2023 Yukon & Yukon Xl 2.5-3.25 Inch Lift Suspension System Icon Vehicle Dynamics

ICON Vehicle Dynamics 2021-2023 Tahoe/Suburban and 2021-2023 Yukon/Yukon XL suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

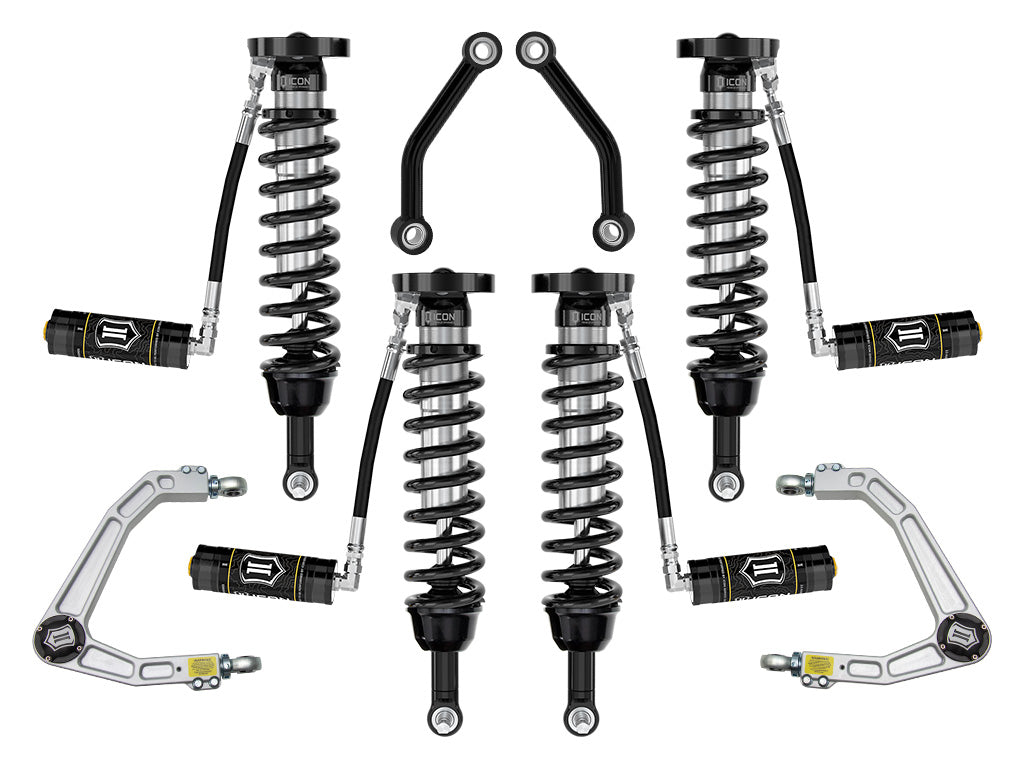

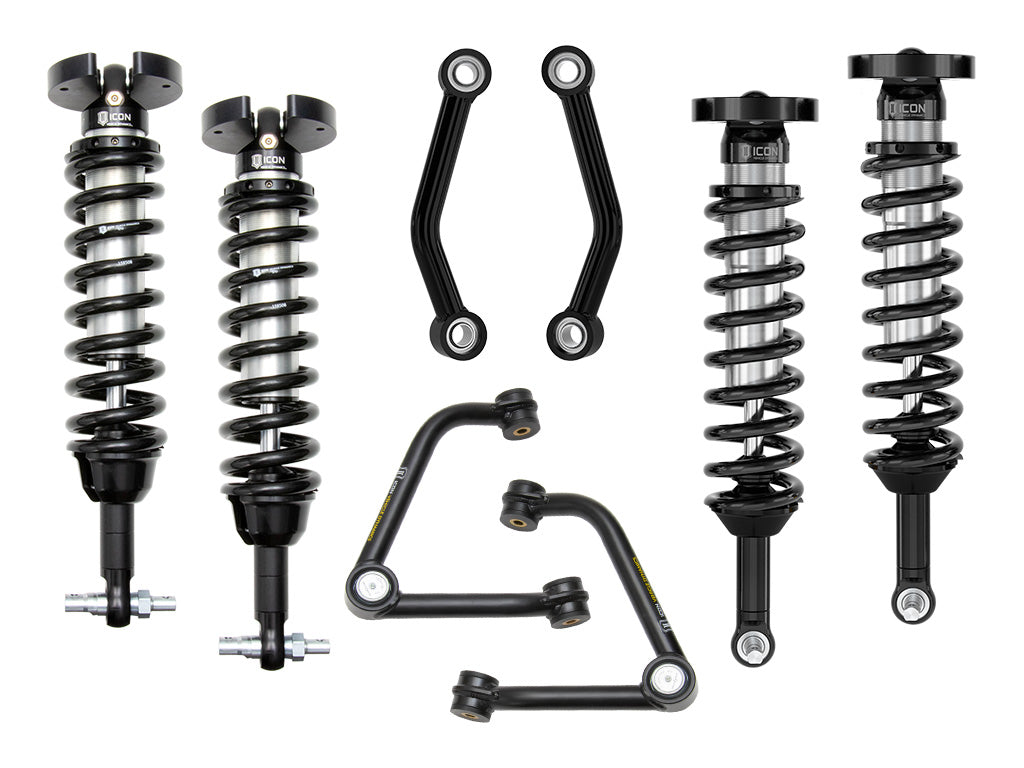

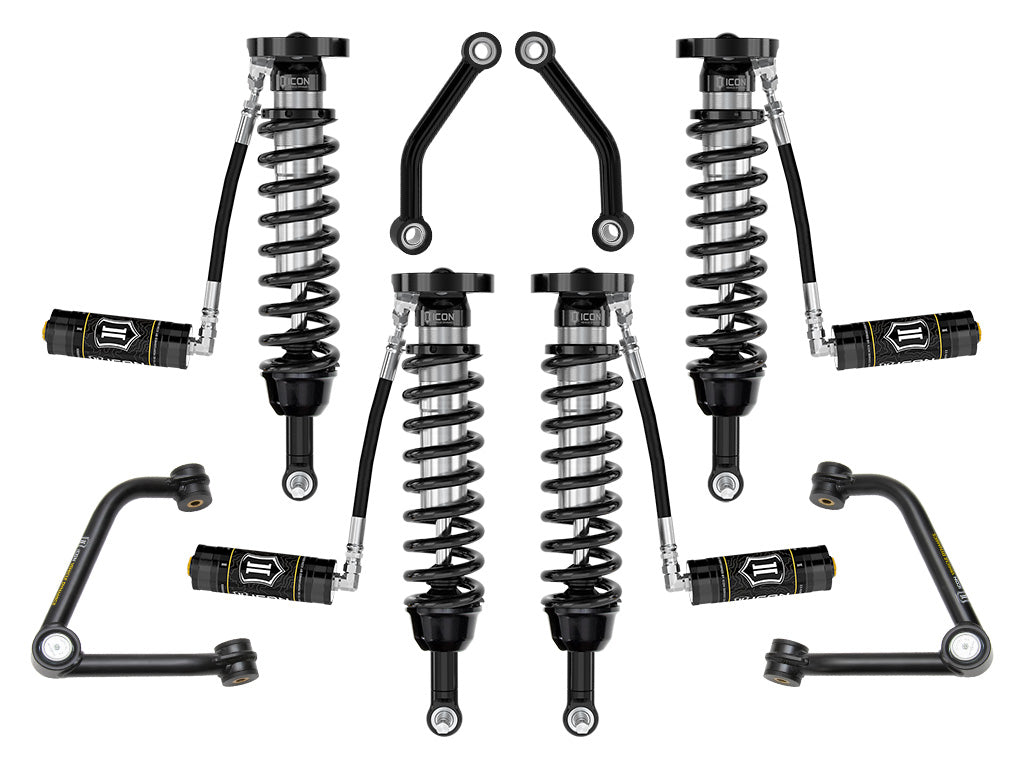

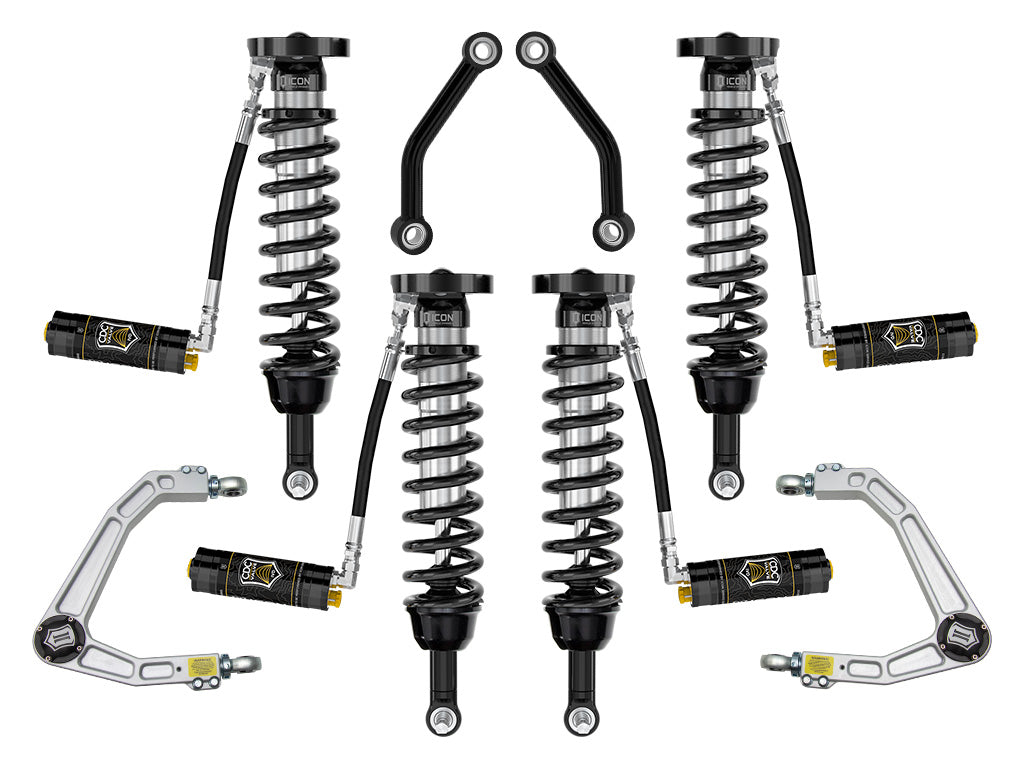

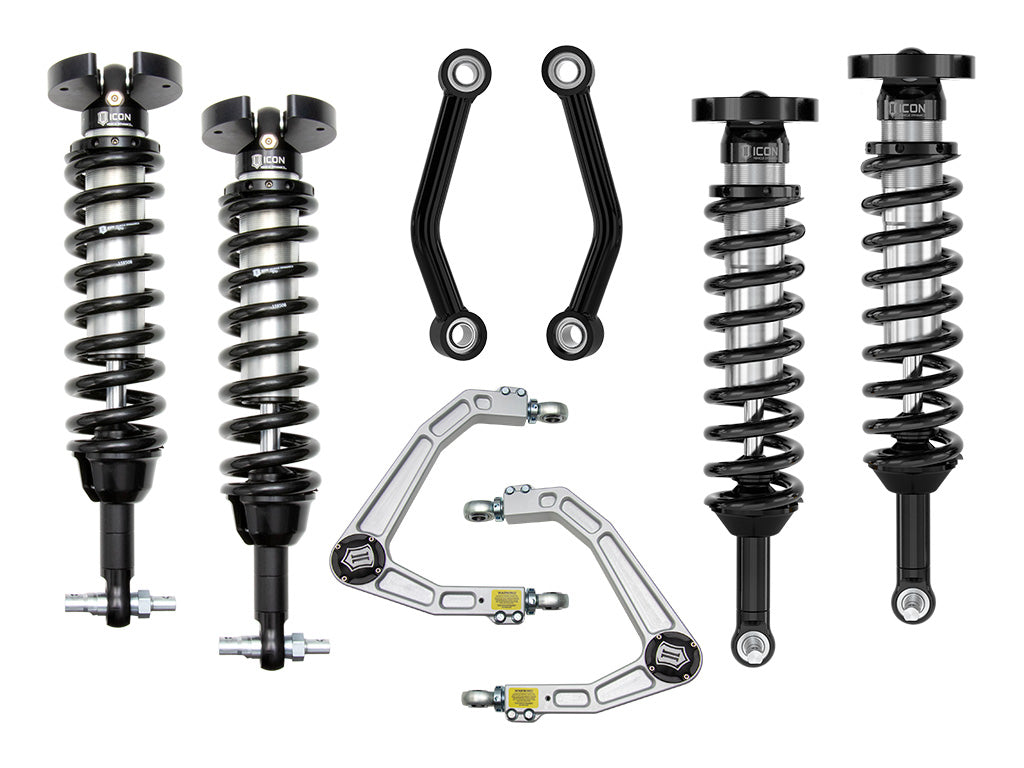

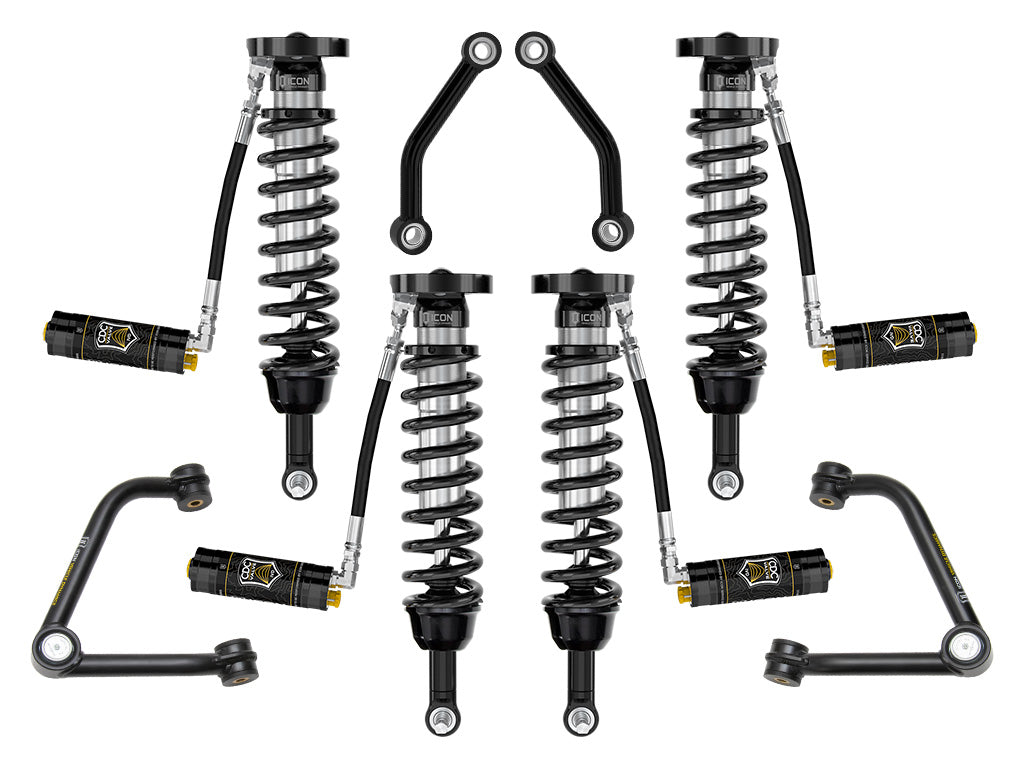

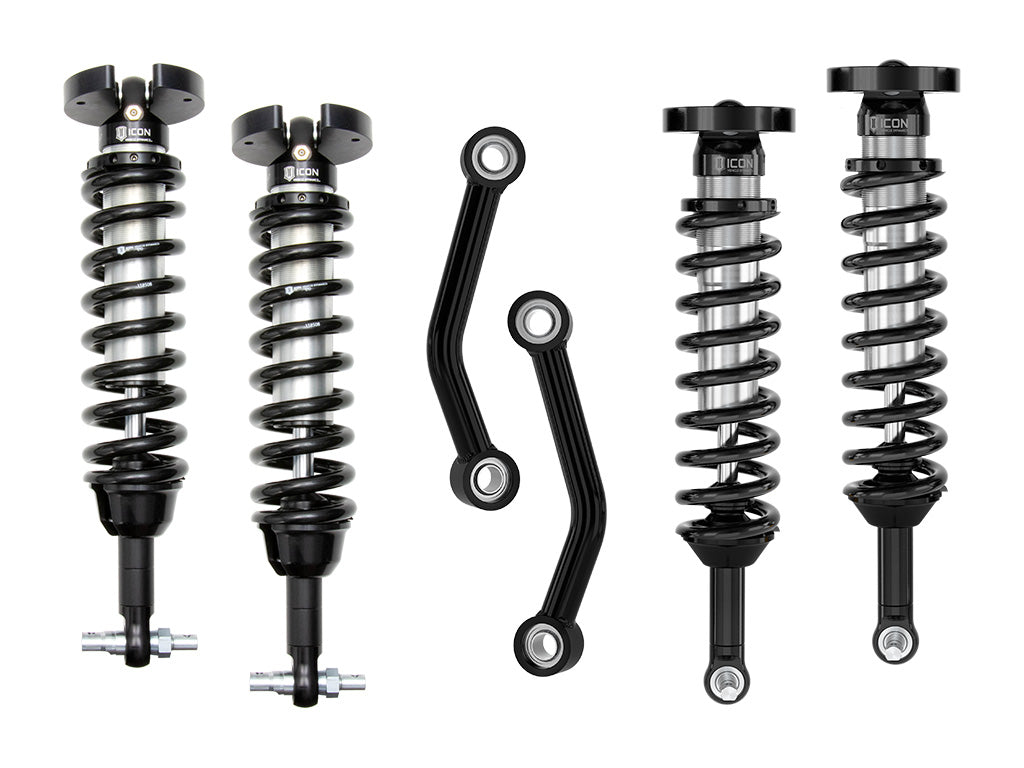

With wheel travel and ride quality in mind, ICON engineers researched each component of the vehicle platform's suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned front and rear 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle Inchfeel Inch through the range of travel.

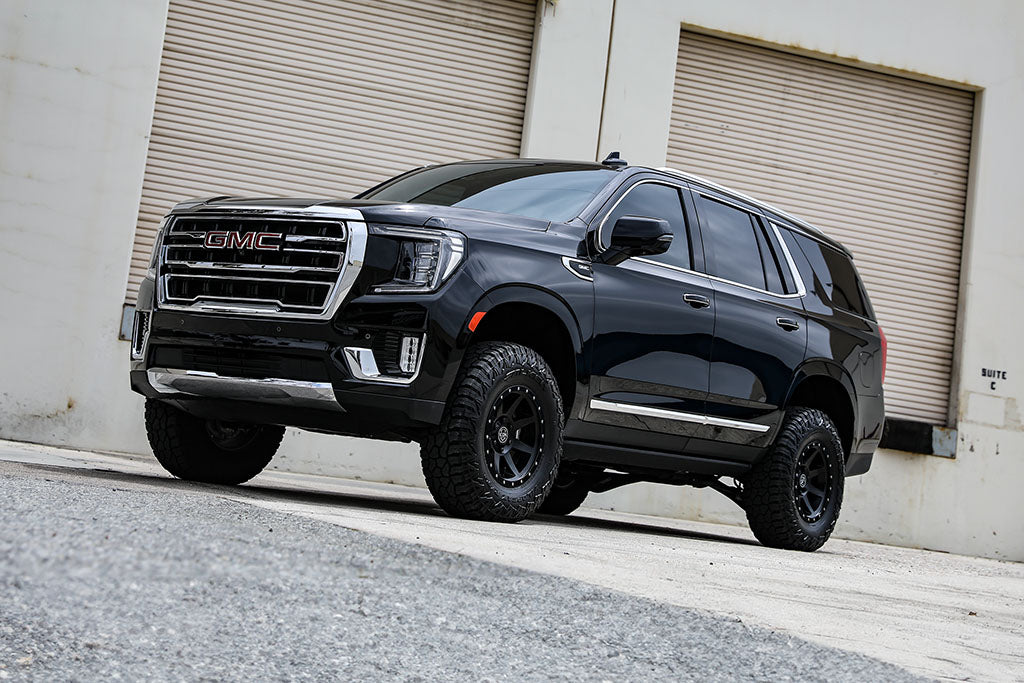

These coilovers are also height adjustable from 2.5-3.25 Inch of front lift and 3-4 Inch of rear lift over stock for an aggressive stance and allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Series coilover shocks feature a vehicle-specific valving that balances the performance of the truck from front to rear.

The system also includes fabricated rear toe links for proper rear-end alignment at the new, taller ride heights, ensuring optimal handling. Additionally, ICON offers the necessary components to make this system compatible with all submodels and configurations that these vehicles are offered from the manufacturer, including those equipped with Magnetic Ride control and/or Adaptive Air Ride suspension.

Features like these make the ICON Vehicle Dynamics 2021-2023 Tahoe/Suburban and 2021-2023 Yukon/Yukon XL Stage 1 suspension system an excellent choice for those drivers looking to enhance the capabilities of their SUV on the road as well as in the dirt.

• Adjustable front coilovers provide 2.5-3.25 Inch of front lift height
• Adjustable rear coilovers provide 3-4 Inch of rear lift height
• Increased lift height allows for fitment of larger and more aggressive tires
• Up to 20 Percent increase in front wheel travel over stock
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• 2.5 Series coilovers feature corrosion resistant CAD plated shock bodies with 7/8 Inch shafts
• Internal nitrogen reservoirs ensure consistent performance under hard use
• Fabricated rear toe links allow for proper rear end alignment with taller ride height
• FK Rod End bearings provide extended longevity and minimal deflection
• Shocks are fully rebuildable and re-tunable

• Active Or Passive Suspension: Passive
• Adjustable Damping: No
• Bushings Included: Yes
• Coils Quantity Front: 2.0
• Coils Quantity Rear: 2.0
• Front Spring Rate Type: Linear
• Grade Type: Performance
• Maximum Lift: 3.25 Inch
• Maximum Lift Front: 3.25 Inch
• Maximum Lift Rear: 4.0 Inch
• Minimum Lift Front: 2.0 Inch
• Minimum Lift Rear: 2.5 Inch
• Mounting Hardware Included: Yes
• Oem Wheels & Tires Fitment: Yes
• Rear Spring Rate Type: Linear
• Recommended Aftermarket Tires: 33 Inchx12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications May Be Required)
• Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5 Inch Backspace / 0mm Offset, Icon Alloys - 17x8.5 Inch W/ 4.75 Inch Backspace / 0mm Offset, Icon Alloys - 18x9 Inch W/ 5 Inch Backspace / 0mm Offset
• Reservoir Style: Internal
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Add On Part: 78720Dj - 19-24 GM 1500 Billet UCA Dj Kit, 78620Dj - 19-24 GM 1500 Tubular UCA Dj Kit, 71021 - 19-23 GM Electronic Shock Simulator, 198001 - Billet Spanner Wrench Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 71022 - 21-23 GM Ride Height Simulator
