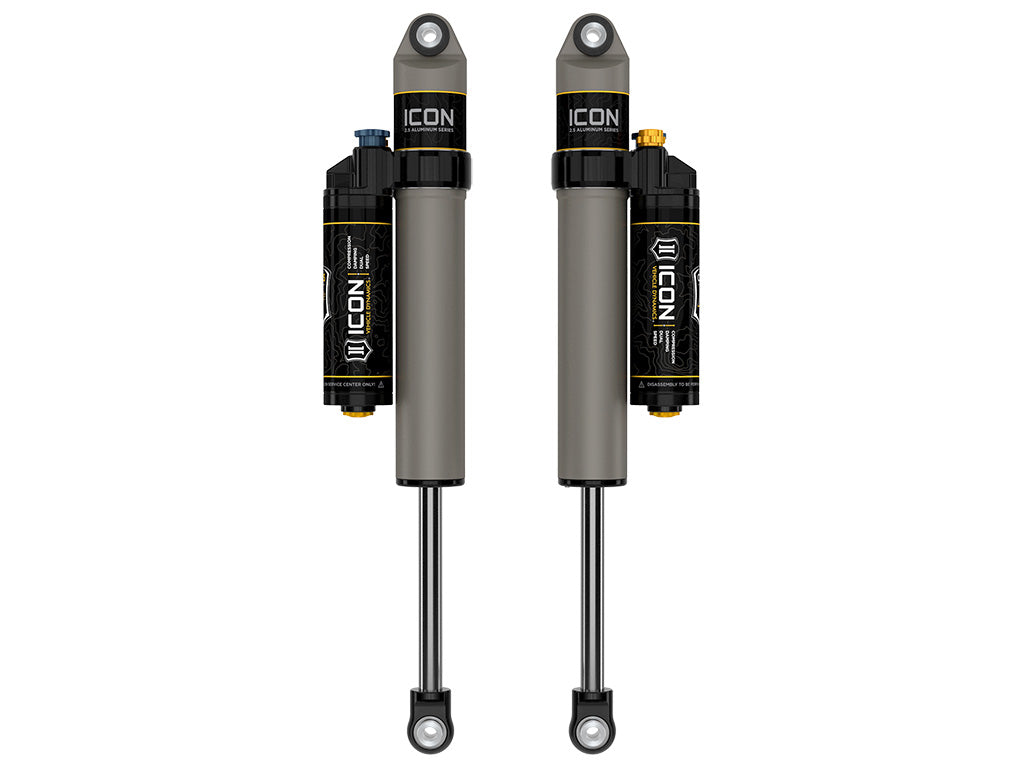

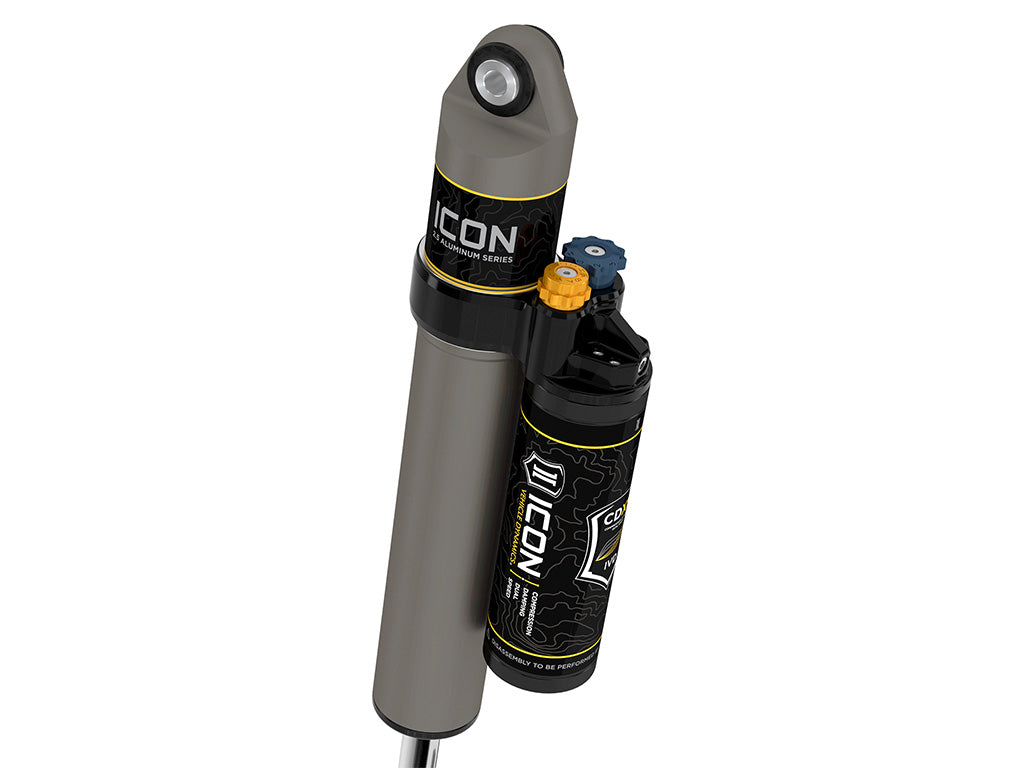

2021-2024 Ford F-150 4WD F-150 Tremor 0-2 Inch Lift Rear V.S. 2.5 Aluminum Series Shock Absorbers Piggyback Reservoir W CDXS Pair Icon Vehicle Dynamics

2021-2024 Ford F-150 4WD F-150 Tremor 0-2 Inch Lift Rear V.S. 2.5 Aluminum Series Shock Absorbers Piggyback Reservoir W CDXS Pair Icon Vehicle Dynamics

Awaiting stock, shipping soon
$1,613.15
$1,613.15 $1,693.80
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDCV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.

This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance.

CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.

Features and Benefits:
  • ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
  • ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression
  • Nitrogen charged monotube design with piggyback reservoir
  • Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8 Inch diameter induction hardened, chrome plated shock shaft
  • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • 100 Percent Rebuildable
  • 100 Percent Revalveable
Details
  • Active Or Passive Suspension: Passive
  • Adjustable: Yes
  • Adjustable Compression: Yes
  • Adjustable Damping: Yes
  • Adjustable Rebound: No
  • Boot Included: No
  • Bore Diameter: 2.25
  • Cylinder Color: Grey
  • Cylinder Diameter: 2.5
  • Cylinder Material: Aluminum
  • Damping Adjustment Type: Dual Speed/Manual
  • Damping Type: Oil
  • External Reservoir: Yes
  • Gas Charged: Yes
  • Grade Type: Performance
  • Lower Mount Type: Eyelet
  • Mounting Hardware Included: Yes
  • Reservoir Type: Piggyback
  • Service Parts: 191016 - 7.5 Inch Finned Resi Upgrade Kit, 254100G - 1 Gallon Icon Performance Shock Oil, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252003 - Seal Install Tool 2.5/3.0, 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 252001 - 2.5 Fixed Spanner Wrench, 257341 - 7/8 Shaft 15.85 Oal, 11.00 Travel
  • Shaft Diameter: 0.875
  • Shaft Material: Chrome
  • Shock Absorber Body End Measuring Point: Center Of Eylet
  • Shock Absorber Rod End Measuring Point: Center Of Eylet
  • Tube Outside Diameter: 2.5
  • Upper Mount Type: Eyelet
  • Valving Type: Digressive
