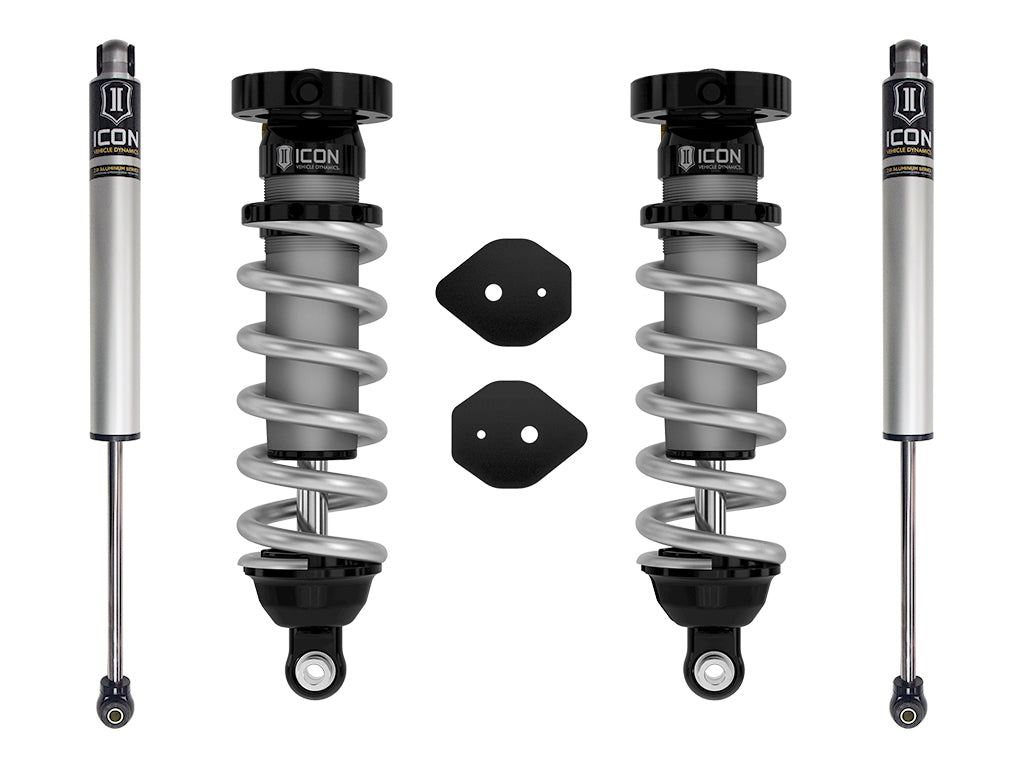

2022-2025 Nissan Frontier 1-3 Inch Lift Stage 1 Suspension System Icon Vehicle Dynamics

2022-2025 Nissan Frontier 1-3 Inch Lift Stage 1 Suspension System Icon Vehicle Dynamics

Awaiting stock, shipping soon
$1,607.56
$1,607.56 $1,985.81
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 19% off

ICON Vehicle Dynamics 2022-2025 Nissan Frontier suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road.

The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and Eibach coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are height adjustable from 1-3 Inch of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations.

ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2022-2025 Nissan Frontier Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features and Benefits:
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Increased wheel travel and improved ride quality over stock
  • Adjustable 2.5 Series coilovers provide 1-3 Inch front lift height over stock
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock bodies with 7/8 Inch shafts
  • FK Rod End bearings for extended longevity and minimal deflection
  • CNC laser cut front bump stop spacers
  • 2.0 Aluminum Series internal reservoir rear shocks with 5/8 Inch shafts
Details
  • Active Or Passive Suspension: Passive
  • Adjustable Compression: No
  • Adjustable Damping: No
  • Adjustable Rebound: No
  • Bushings Included: Yes
  • Coil Quantity Front: 2.0
  • Coil Spring Color: Silver
  • Coil Spring End 1 Type: Closed
  • Coil Spring End 2 Type: Closed
  • Coil Spring Material: Steel
  • Coils Quantity Front: 2.0
  • Front Reservoir Style: Internal
  • Front Shock Body Diameter: 2.5
  • Front Spring Rate Type: Linear
  • Grade Type: Performance
  • Maximum Lift: 3.0 Inch
  • Maximum Lift Front: 3.0 Inch
  • Maximum Lift Height Front: 3.0 Inch
  • Minimum Lift Front: 1.0 Inch
  • Mounting Hardware Included: Yes
  • Oem Wheels & Tires Fitment: Yes
  • Rear Reservoir Style: Internal
  • Rear Shock Body Diameter: 2.0
  • Rear Spring Rate Type: Progressive Dual Rate
  • Recommended Aftermarket Wheels: 17x8.5 With 6.32 Inch Backspace / 40mm Offset, Icon Alloys - 18x9 With 6.6 Inch Backspace / 40mm Offset
  • Shocks Included: Yes
  • Spring Color: Silver
  • Spring Material: Steel
  • Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25)
