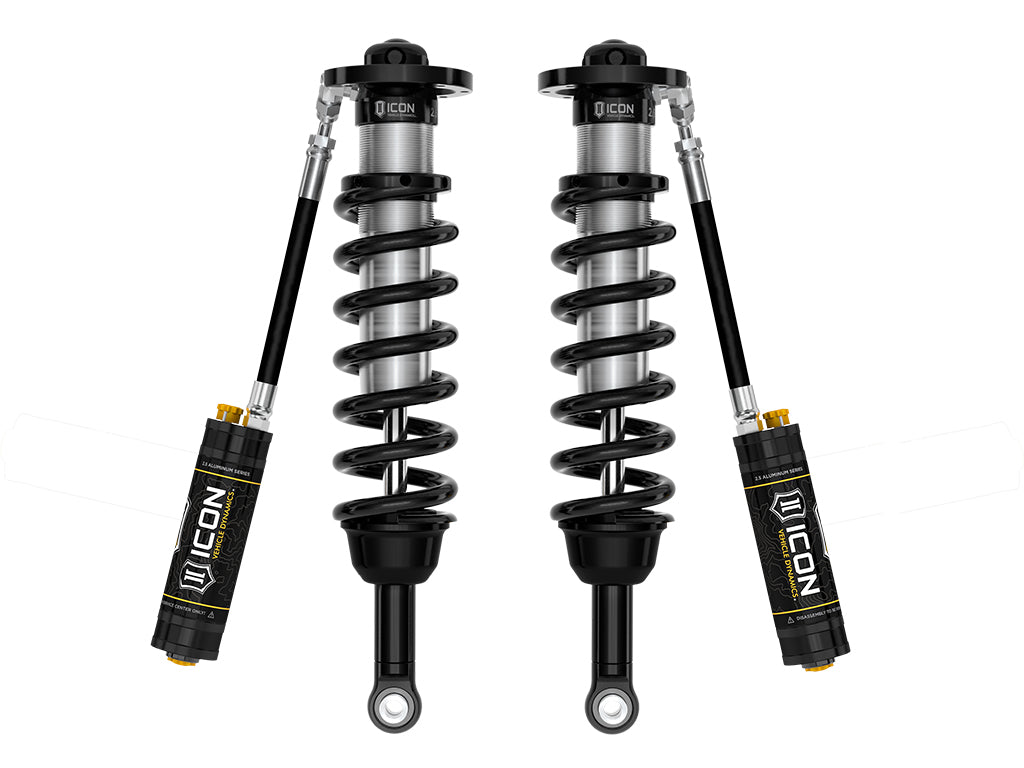

2023-2025 Sequoia Trd Pro 1-2.5 Inch Lift Front V.S. 2.5 Series Front Coilover Kit Remote Reservoir W/ CDCV Pair Icon Vehicle Dynamics

2023-2025 Sequoia Trd Pro 1-2.5 Inch Lift Front V.S. 2.5 Series Front Coilover Kit Remote Reservoir W/ CDCV Pair Icon Vehicle Dynamics

Awaiting stock, shipping soon
$2,345.88
$2,345.88 $2,463.17
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 5% off

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2023-2025 Toyota Sequoia TRD Pro. These adjustable coilovers allow up to 1-2.5 Inch of lift height adjustability on Sequoia TRD Pro, allowing the use of larger, more aggressive wheel and tire combinations.

ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

Additionally, their vehicle specific shock length allows the stock, billet TRD front upper control arms to be utilized with the new suspension system, eliminating the requirement for ICON front UCAs. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro.

Features and Benefits:
  • Increased wheel travel and improved ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • Specifically designed shock lengths for compatibility with Sequoia TRD Pro's stock front upper control arms
  • Adjustable ride height offers 1-2.5 Inch of front lift over stock on Sequoia TRD Pro
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • ICON CDCV equipped for 10 settings of external compression damping adjustment
  • ICON engineered coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable
Details
  • Material: Steel, Aluminum
  • Active Or Passive Suspension: Passive
  • Adjustable Compression: Yes
  • Adjustable Damping: Yes
  • Adjustable Height: Yes
  • Adjustable Rebound: No
  • Adjustable Ride Height: Yes
  • Assembled: Yes
  • Body Diameter: 2.5 Inch
  • Boot Included: No
  • Coil Over Springs Included: Yes
  • Compressed Length: 16.73
  • Cylinder Color: Silver
  • Cylinder Finish: Cadmium Plated
  • Cylinder Material: Steel
  • Damping Adjustment Type: Manual
  • Damping Type: Oil
  • Dust Shield: No
  • Dust Shield Included: No
  • Extended Length: 21.68
  • Front Spring Rate: 700 Inch
  • Gas Charged: Yes
  • Grade Type: Performance
  • Includes Bump Stop: No
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Eyelet
  • Maximum Lift: 2.5 Inch
  • Maximum Ride Height Raising Distance: 2.5
  • Minimum Lift: 1.0 Inch
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Minor Fender Trimming And Modifications May Be Required)
  • Recommended Aftermarket Wheels: 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm Offset
  • Remote Reservoir: Yes
  • Reservoir Style: Remote
  • Self Leveling: No
  • Service Parts: 252010 - 2.5 Ifp Rebuild Kit
  • Shaft Diameter: 0.875
  • Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Center Of Eylet
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate Type: Linear
  • Travel Length: 4.96
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
  • Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit, 55156 - 22-25 Tundra/23-25 Sequoia/24-25 Gx550 Diff Drop Kit, 55164 - 22-25 Tundra/23-24 Sequoia Aluminum Skid Plate Spacer Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 252012 - -4 To -10 Hose Shield Kit
