2024-2025 Lexus GX550 1.25-3 Inch Lift Front V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDXS Icon Vehicle Dynamics

2024-2025 Lexus GX550 1.25-3 Inch Lift Front V.S. 2.5 Series Coilover Kit Remote Reservoir W/ CDXS Icon Vehicle Dynamics

Awaiting stock, shipping soon
$2,399.95
$2,399.95 $2,620.75
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Up to 8% off

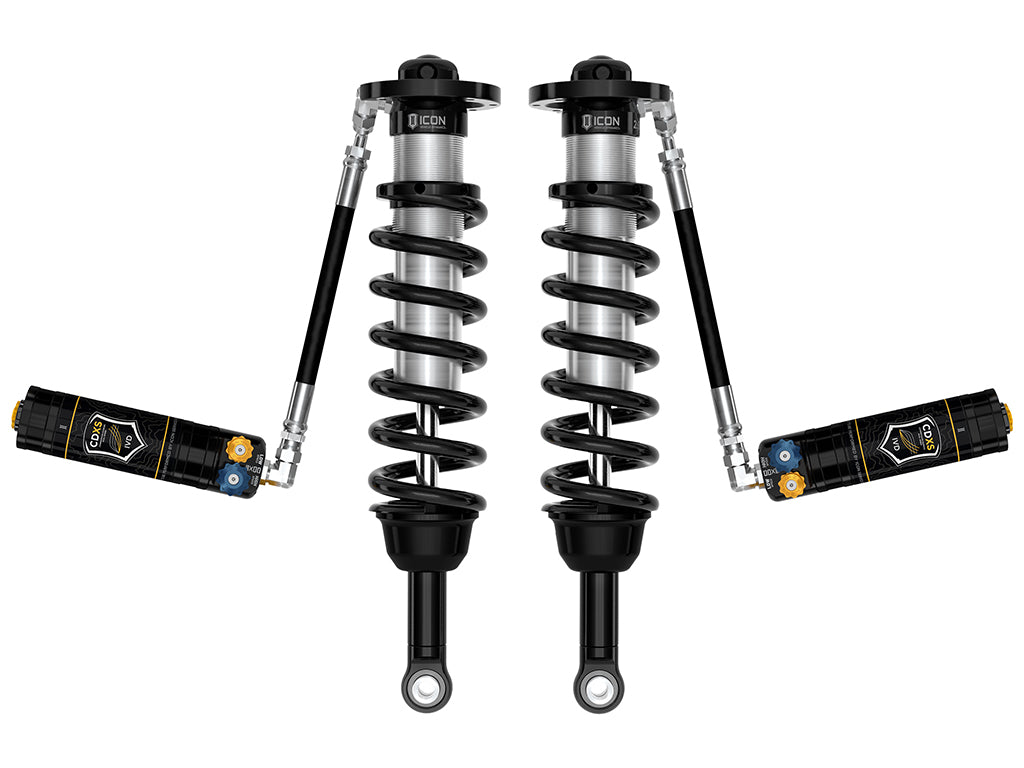

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2025 Lexus GX550. These adjustable coilovers allow up 1.25-3 Inch of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations.

ICON's Vehicle-specific shock length and valving, their large 2.5 Inch shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop, yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

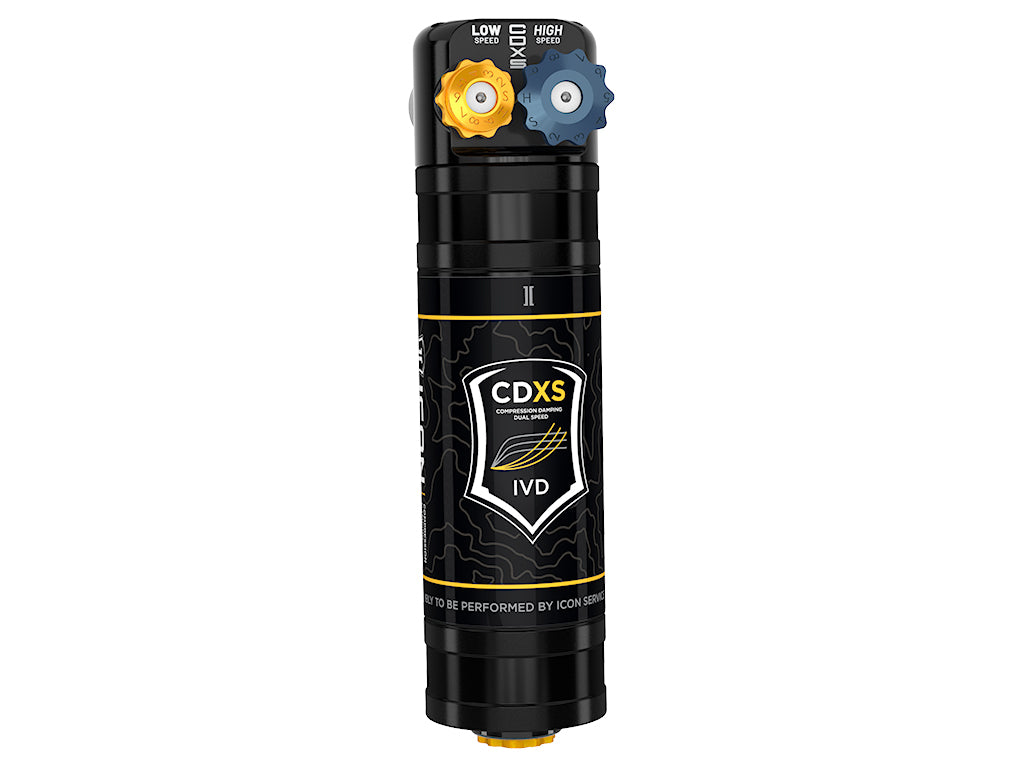

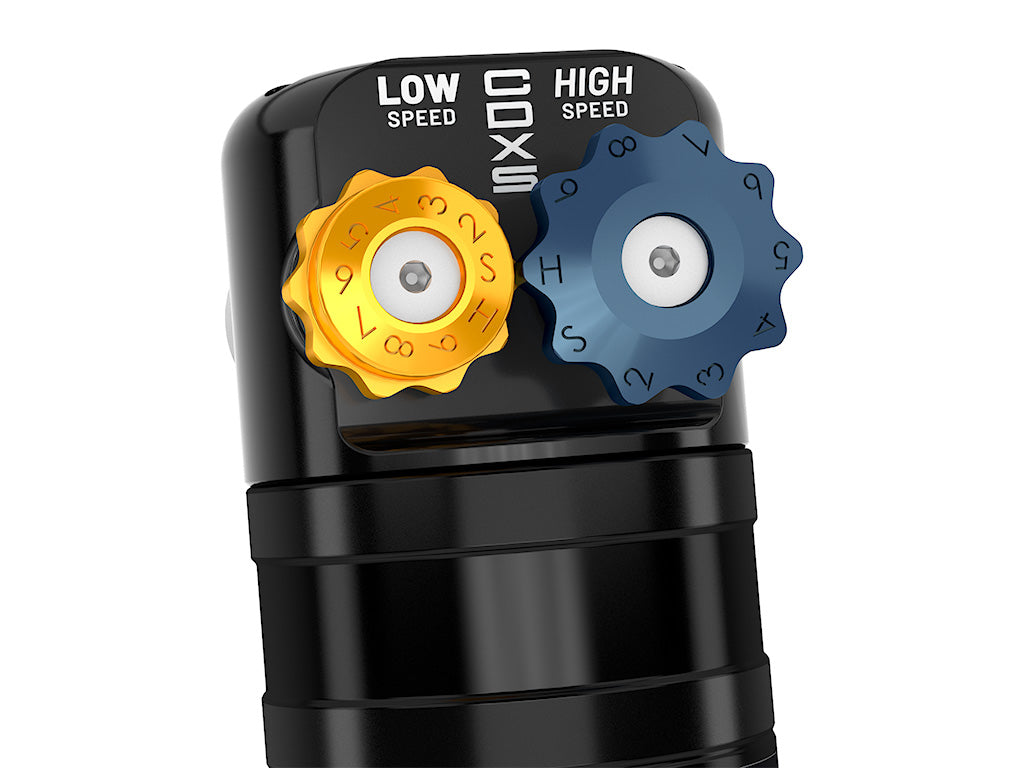

ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.

When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Lexus GX550.

Features and Benefits:
  • Vehicle specific tuned for superior shock damping, vehicle control, and improved ride quality over stock
  • Vehicle specific shock length and pairing with front differential drop yields maximum wheel travel
  • Height-adjustable coilovers offer 1.25-3 Inch of lift height adjustment over stock
  • 2.5 Inch diameter shock bodies with remote reservoirs
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use
  • ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
  • ICON engineered coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8 Inch diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable
Details
  • Material: Steel, Aluminum
  • Active Or Passive Suspension: Passive
  • Adjustable Compression: Yes
  • Adjustable Damping: Yes
  • Adjustable Height: Yes
  • Adjustable Rebound: No
  • Adjustable Ride Height: Yes
  • Assembled: Yes
  • Body Diameter: 2.5 Inch
  • Coil Over Springs Included: Yes
  • Compressed Length: 19.2
  • Cylinder Color: Silver
  • Cylinder Finish: Cadmium Plated
  • Cylinder Material: Steel
  • Damping Adjustment Type: Dual Speed/Manual
  • Damping Type: Oil
  • Dust Shield: No
  • Dust Shield Included: No
  • Extended Length: 26.05
  • Front Spring Rate: 550 Inch
  • Gas Charged: Yes
  • Grade Type: Performance
  • Includes Bump Stop: Yes
  • Internal Construction Type: Single Tube
  • Lower Mount Type: Eyelet
  • Maximum Lift: 3.0 Inch
  • Maximum Ride Height Raising Distance: 3.0
  • Minimum Lift: 1.25 Inch
  • Oem Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 34 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)
  • Recommended Aftermarket Wheels: Icon Alloys - 18x9 With 6.00 Inch Backspace / 25mm Offset, Icon Alloys - 17x8.5 With 5.75 Inch Backspace / 25mm Offset
  • Remote Reservoir: Yes
  • Reservoir Style: Remote
  • Self Leveling: No
  • Shaft Diameter: 0.875
  • Shock Absorber Body End Measuring Point: Top Of Upper Mount Plate
  • Shock Absorber Rod End Measuring Point: Center Of Eyelet
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate Type: Linear
  • Travel Length: 6.85
  • Upper Mount Type: Mounting Plate
  • Valving Type: Digressive
  • Add On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 58552Dj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Billet UCA Dj Pro Kit, 58452Dj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Tubular UCA Dj Pro Kit, 252012 - -4 To -10 Hose Shield Kit, 58552Gdj - 24-25 Tacoma/24-25 Lc250/24-25 Gx550/25 T4R Billet UCA Dj Pro Kit Gold Ano, 198001 - Billet Spanner Wrench Kit, 55156 - 22-25 Tundra/23-25 Sequoia/24-25 Gx550 Diff Drop Kit
