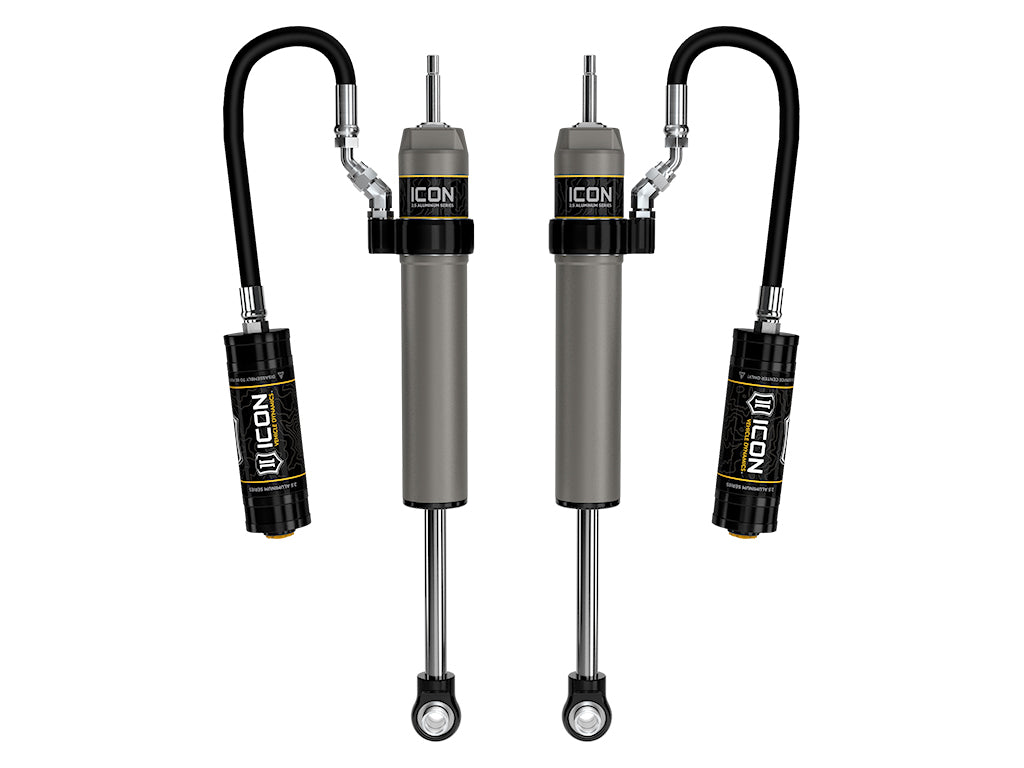

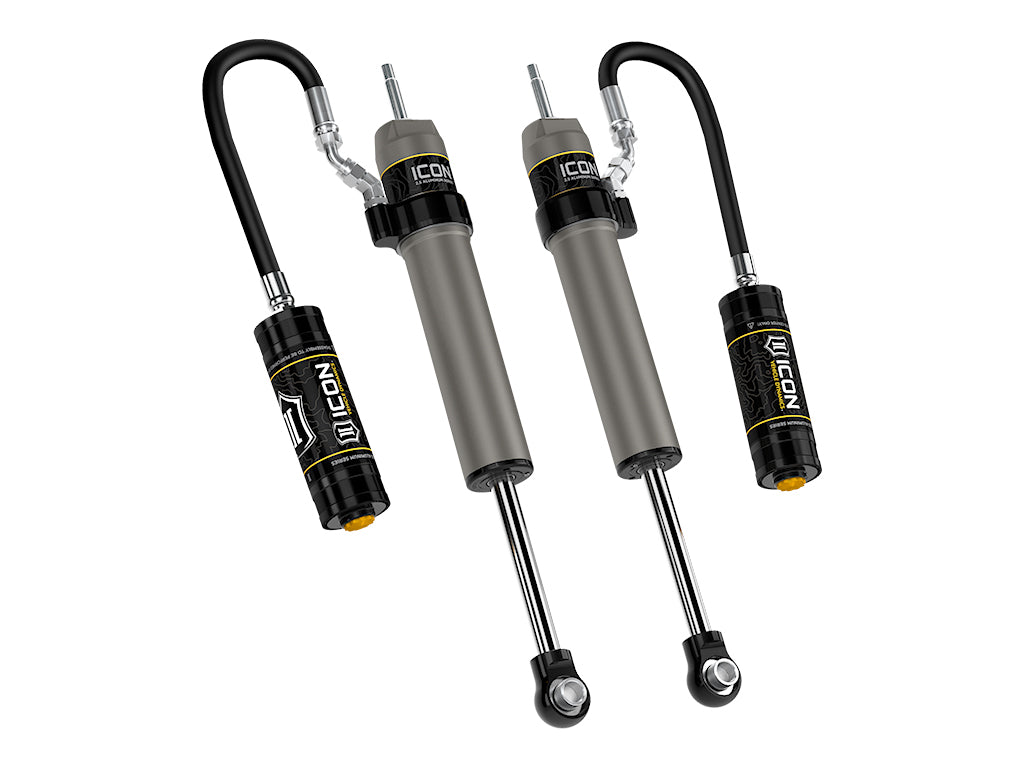

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20 Percent of damping force.

This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider ICON compression adjustable shock absorbers equipped with CDCV, CDXS, or CDEV.

Features and Benefits:
  • ICON's internal InchBump Zone Inch increases damping by 20 Percent to provide more control as the shock approaches full compression
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with remote reservoir
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • All ICON 2.5 Aluminum Series Remote Reservoir shocks can be upgraded with an ICON compression adjuster (CDCV, CDXS, or CDEV)
  • 7/8 Inch diameter induction hardened, chrome plated shock shaft
  • Rubber dust boot included for added shaft protection
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components
  • Fully rebuildable and re-tunable
Details
  • Active Or Passive Suspension: Passive
  • Adjustable: No
  • Adjustable Compression: No
  • Adjustable Damping: No
  • Adjustable Rebound: No
  • Boot Included: Yes
  • Bore Diameter: 2.25
  • Cylinder Color: Gray
  • Cylinder Diameter: 2.5
  • Cylinder Material: Aluminum
  • Damping Type: Oil
  • External Reservoir: Yes
  • Gas Charged: Yes
  • Grade Type: Performance
  • Includes Bump Stop: No
  • Lower Mount Type: Eyelet
  • Mounting Hardware Included: Yes
  • Reservoir Type: Remote
  • Service Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit
  • Shaft Diameter: 0.875
  • Shaft Material: Chrome
  • Shock Absorber Body End Measuring Point: Shoulder Of Stem
  • Shock Absorber Rod End Measuring Point: Center Of Eylet
  • Tube Outside Diameter: 2.5
  • Upper Mount Type: Stem
  • Valving Type: Digressive
  • Add On Part: 52753 - 25 4Runner .75 Inch Dual Rate Rear Spring Kit, 56100 - 07-14 FJ Cruiser 03-24 4Runner/22-24 Tundra/23-24 Sequoia Rear Shin Guards, 252012 - -4 To -10 Hose Shield Kit
