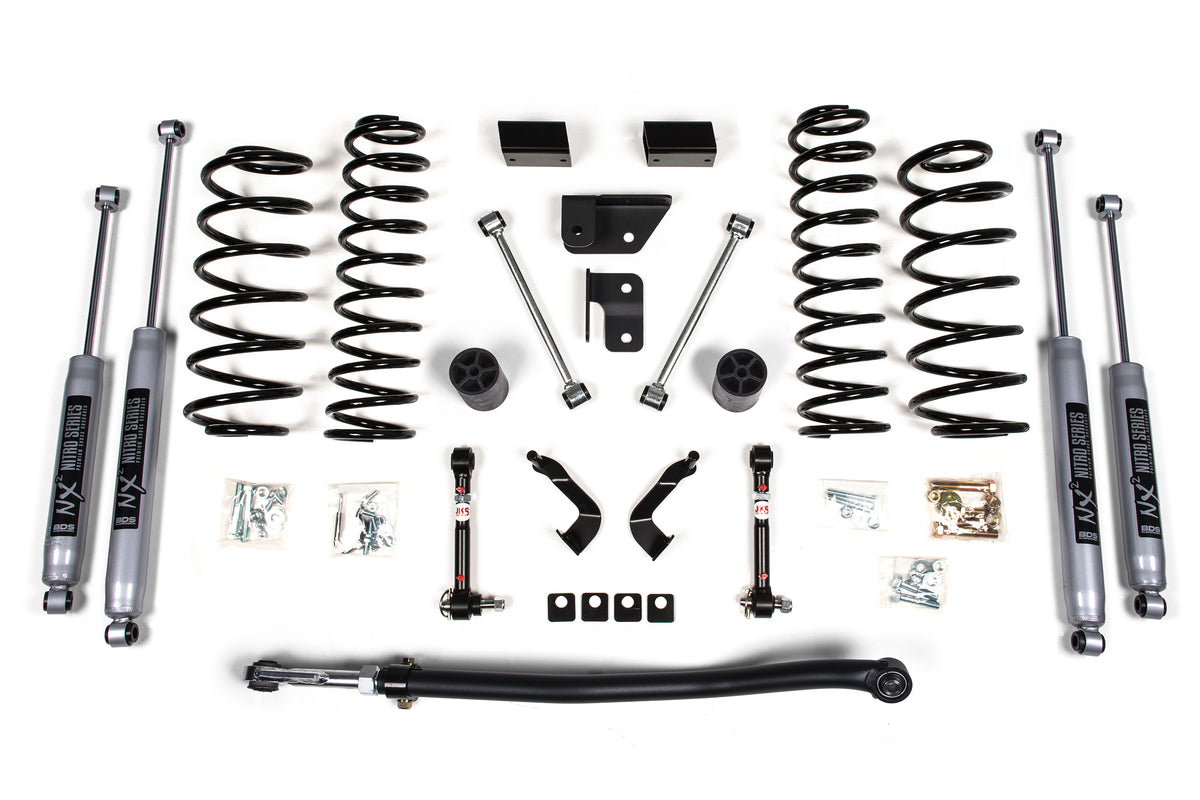

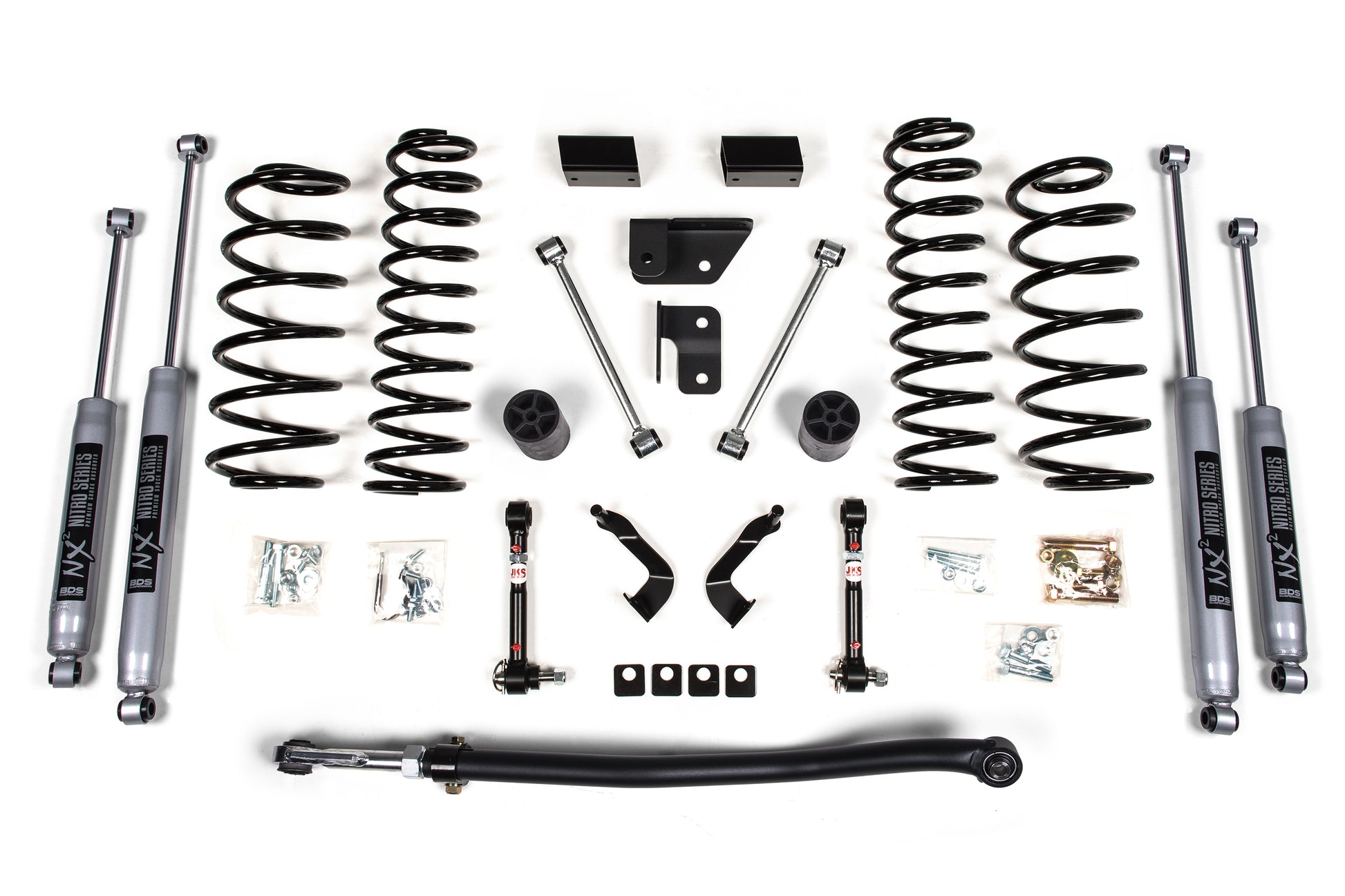

3 Inch Lift Kit Jeep Wrangler JL 18-24 4-Door BDS Suspension

3 Inch Lift Kit Jeep Wrangler JL 18-24 4-Door BDS Suspension

Awaiting stock, shipping soon
Title
$1,899.65
$1,899.65
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Improve the ride and style of your Jeep Wrangler JL 4 Door with this 3-inch lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires at an affordable price.

The lift kit includes front and rear BDS Pro-Ride Coil Springs, a heavy duty adjustable front track bar is utilized to re-center the front axle, bump stop extensions, front lower control arm cam locks, JKS quicker disconnects to unlock the front suspension's potential to flex while maintaining quiet on road operation, rear sway bar links, and your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 Internal Floating Piston performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs

A pair of full-length, gas-specific, progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains. Manufactured from high tensile steel, our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

HD Adjustable Track Bar

Maintain proper handling and steering geometry with the BDS high strength adjustable track bar that allows you to recenter the front axle at a variety of lift heights. Built from 1-3/8 inch solid steel stock, the track bar comes pre-assembled with bushings and is ready to bolt into the factory mounting points.

  • Front Lift Method: Coil Spring
  • Rear Lift Method: Coil Springs
  • Shocks Included: Yes
  • Front Lift Height: 3 inch
  • Rear Lift Height: 3 inch
  1. Full bump clearance.
  2. Rubbing can occur under full articulation.
  3. Non-Rubicon comes from the factory at a lower ride height, which will net slightly more lift final stance the same for all models.
  4. Stock wheels cannot be reinstalled without spacers due to rear sway bar interference.
  5. Will not fit 4xe models.
  6. Will not fit Rubicon 392 models.
  7. Does not fit Diesel models
  • ProRide coil springs offer improved ride quality and more articulation
  • Sway bar quicker disconnects and extended rear link for improved offroad flex
  • Front HD track bar to correctly position the front axle and control lateral movement
  • Rear track bar bracket repositions rear axle under vehicle
  • Lower cam locks to correct caster for alignment
  • Choice of NX2 gas or FOX 2.0 Internal Floating Piston performance series shocks for improved damping
  • Allows clearance for 37 inch Tires

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (Internal Floating Piston) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Tire Size: 37 x 12.5 Wheel Diameter: 17 x 9 Back Spacing: 4.5

Kit Components:

  • Includes one BDS014330, 2018-2025 Jeep Wrangler JL 3 inch Lift Box Kit, UPC Code 658848614066
  • Includes one BDS034340, 2018-2025 Jeep Wrangler JL 3 inch Front Coil Spring Box Kit, UPC Code 658848616800
  • Includes one BDS034346, 2018-2025 Jeep Wrangler JL 3 inch Rear Coil Spring Box Kit, UPC Code 658848616817
  • Includes two FOX98524177, 2018-2025 Jeep JL Front, PS, 2.0, Internal Floating Piston, 9.6 inch, 2-3 inch Lift, UPC Code 788000423745
  • Includes two FOX98524178, 2018-2025 Jeep JL Rear, PS, 2.0, Internal Floating Piston, 11.1 inch, 2-3 inch Lift, UPC Code 788000423783
