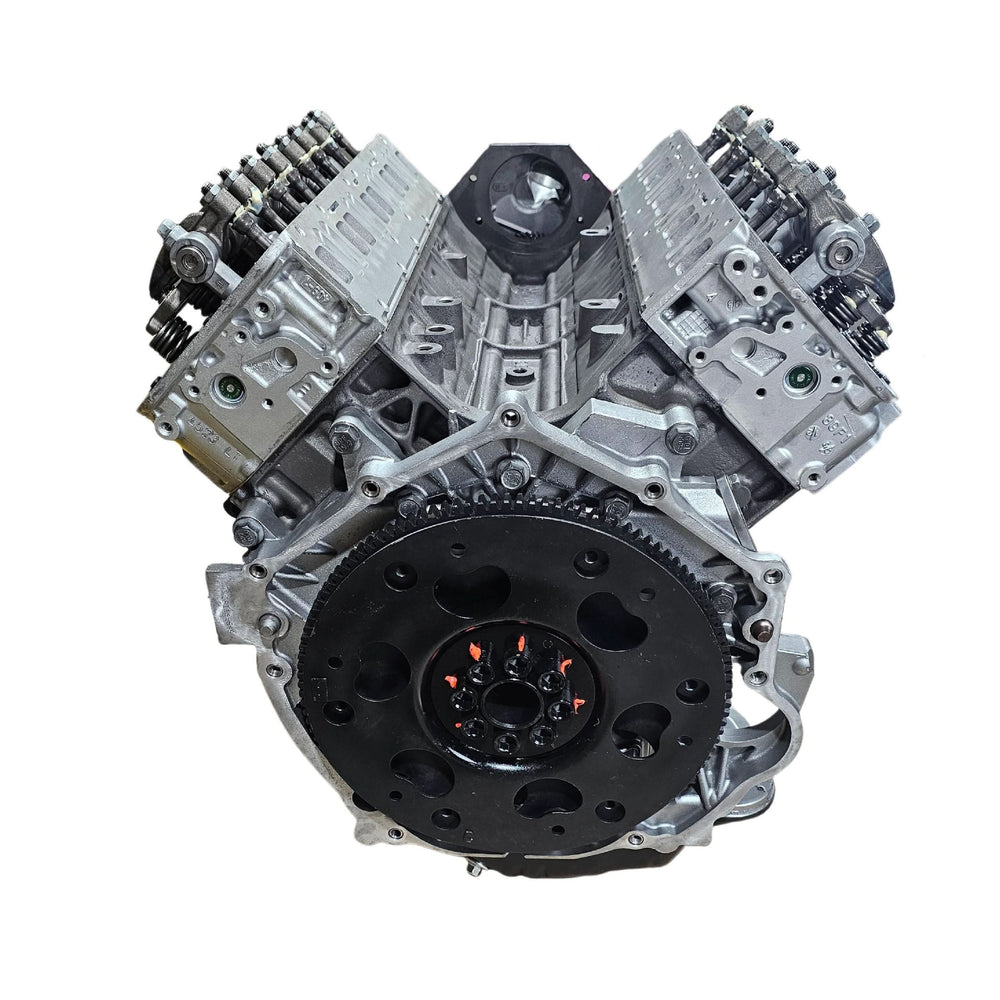

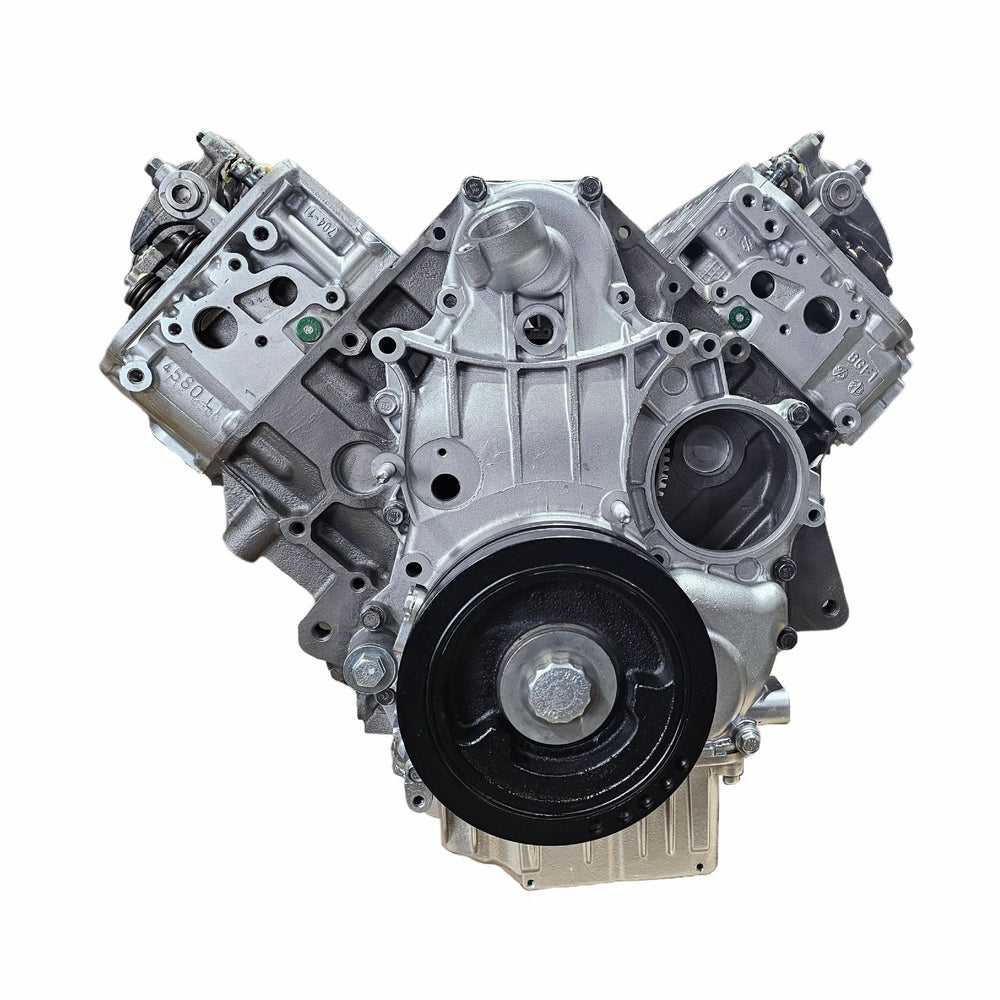

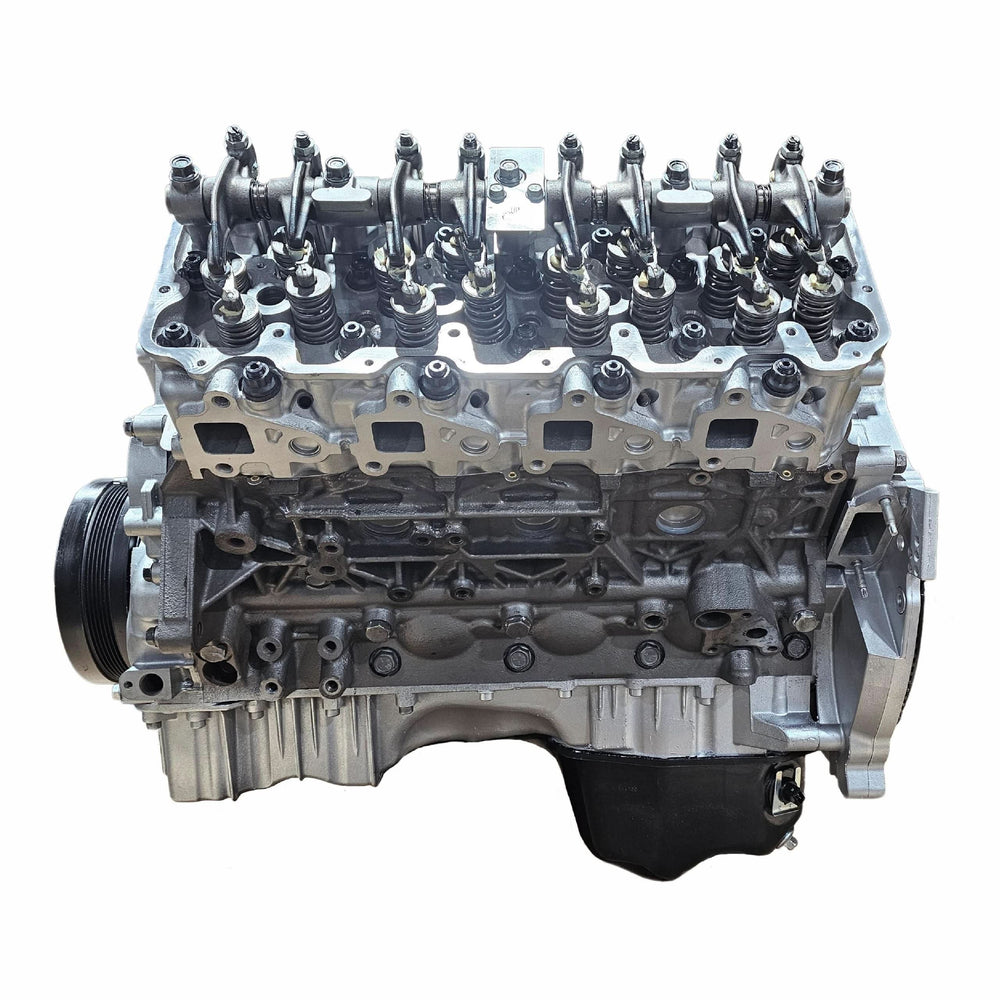

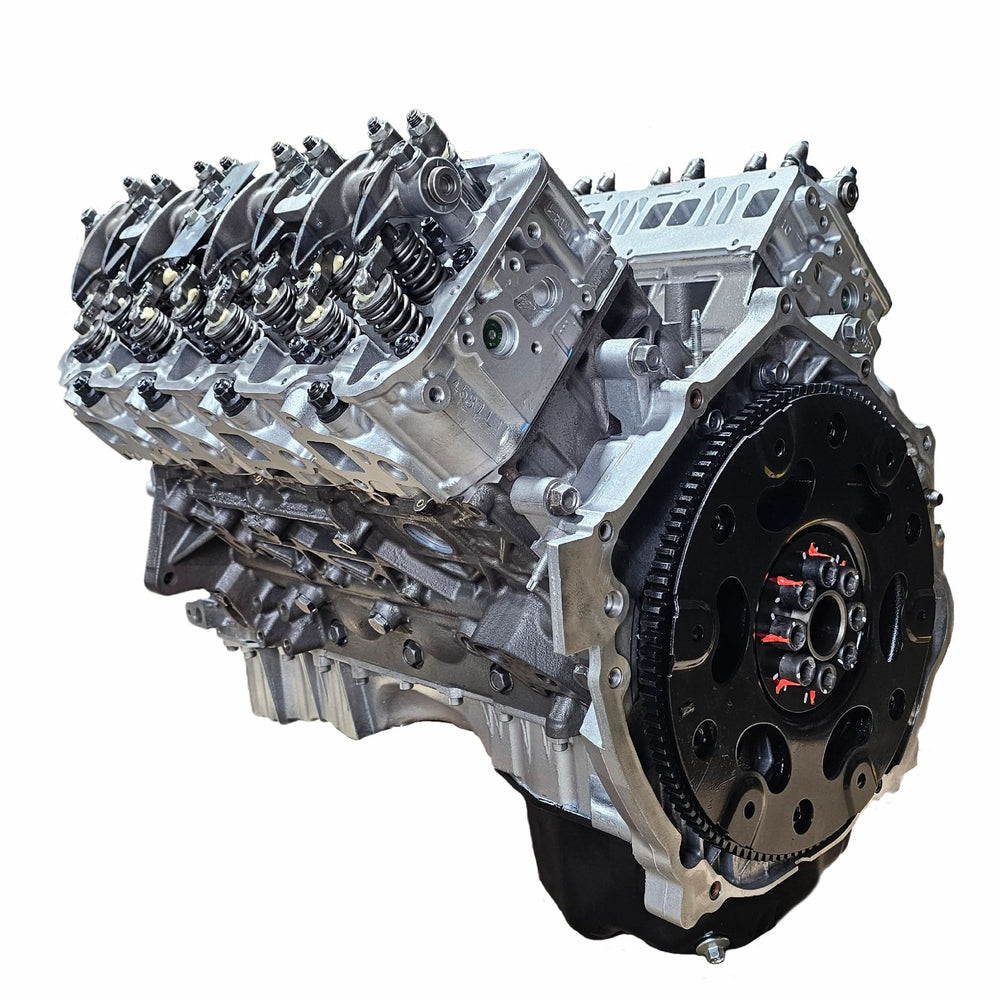

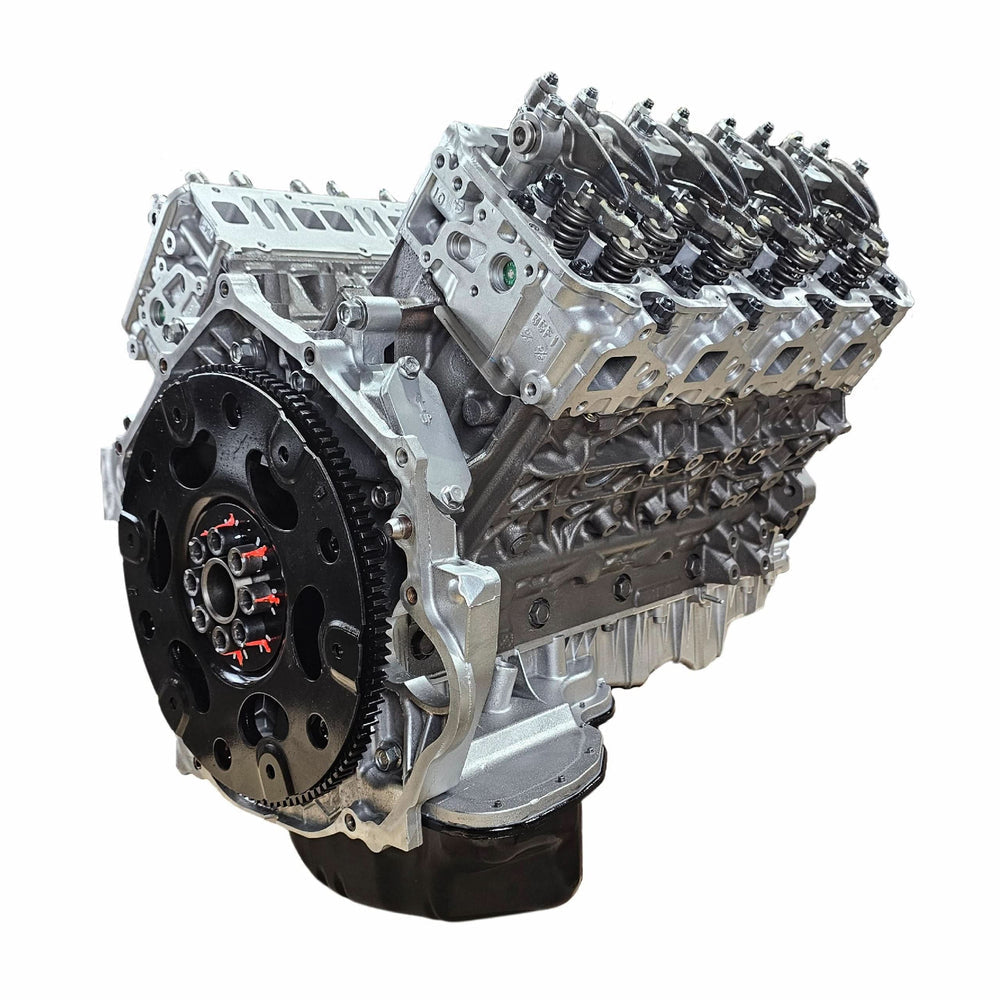

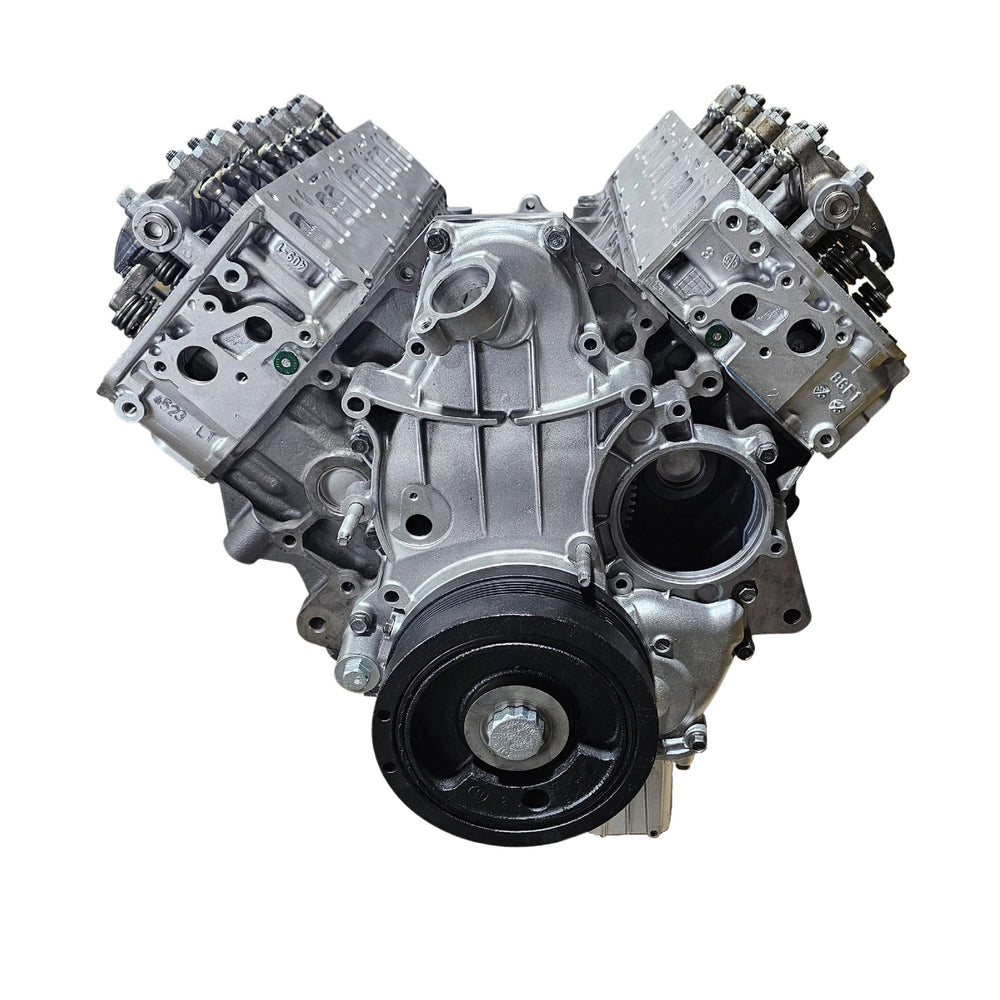

6.6L Duramax LB7 Long Block Workhorse Engine 2001-2004 - Duramax Diesel Engine.

This build Includes:

  • Our Built-In-House O Ringed Heads
  • Stage 2 Camshaft
  • Chromoly Push Rods
  • Flycut, Coated, and Delipped Pistons
  • Pressure Test Heads
  • Remanufactured Valves
  • New Induction Hardened Seats
  • All New Valve Guides
  • Install New Valve Seals
  • Test Spring Tension
  • New Freeze Plugs
  • Keyed Crankshaft
  • Head Studs
  • New Piston Rings
  • New Pin Retainers
  • New OE Lifters
  • Lifter Guides
  • OE Crank Flange Bolts
  • Crankshaft is Polished and ground to .0005 concentricity or less
  • New Rod Bearings
  • New Main Bearings
  • New Cam Bearings
  • Install Rear Main Seal
  • Install New Rear Cover Gasket
  • Install Upper and Lower Oil Pan Gaskets
  • Install Pickup Tube O-ring
  • Rear Cover Installed
  • Connecting Rods
  • New Damper

Machining Processes:

  • Full CNC blue print machining, (bore, deck, hone and line honed)
  • The Cylinder bores are blue print bored to a true 90 degrees over the crankshaft center line
  • Diamond honed to within .0002 inch for precise piston to cylinder bore clearance.
  • Bored and line hone the crank bore housing to precisely align the crankshaft in the engine block.
  • Torque Plate Honed
  • The piston diameter measured to the nearest .0001 inch matched to cylinder bores.
  • The Cylinder block is surfaced to a finish of RA30 or lower, which meets the factory specification in both flatness and smoothness for the block to head sealing surface.
  • This is mandatory for proper sealing of a MLS Gasket.
  • Crankshaft - Balanced and Matched Rotational Assembly
  • Flexplate for Automatic transmission. (If you are using this for a manual transmission we highly suggest sending in your flywheel and pressure plate so we can achieve the best balancing job possible for your engine. Also, now is a great time to upgrade your clutch.)
