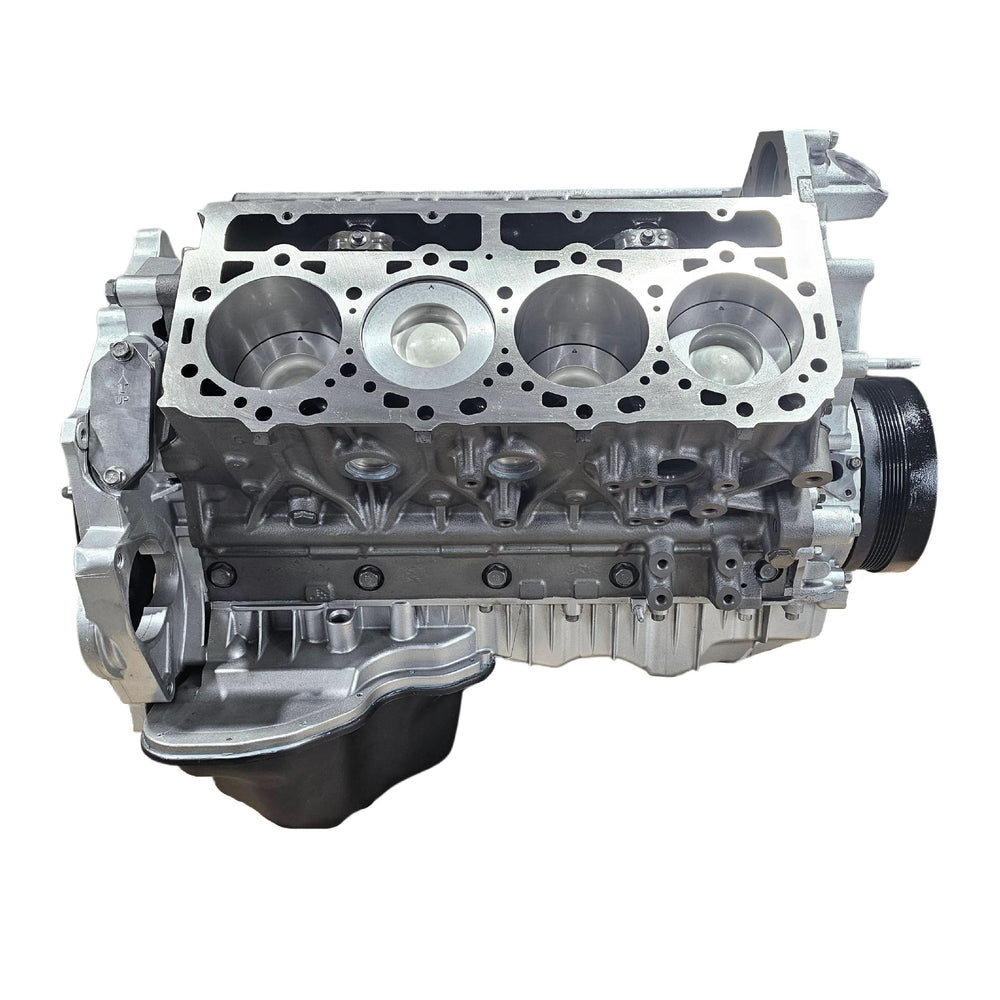

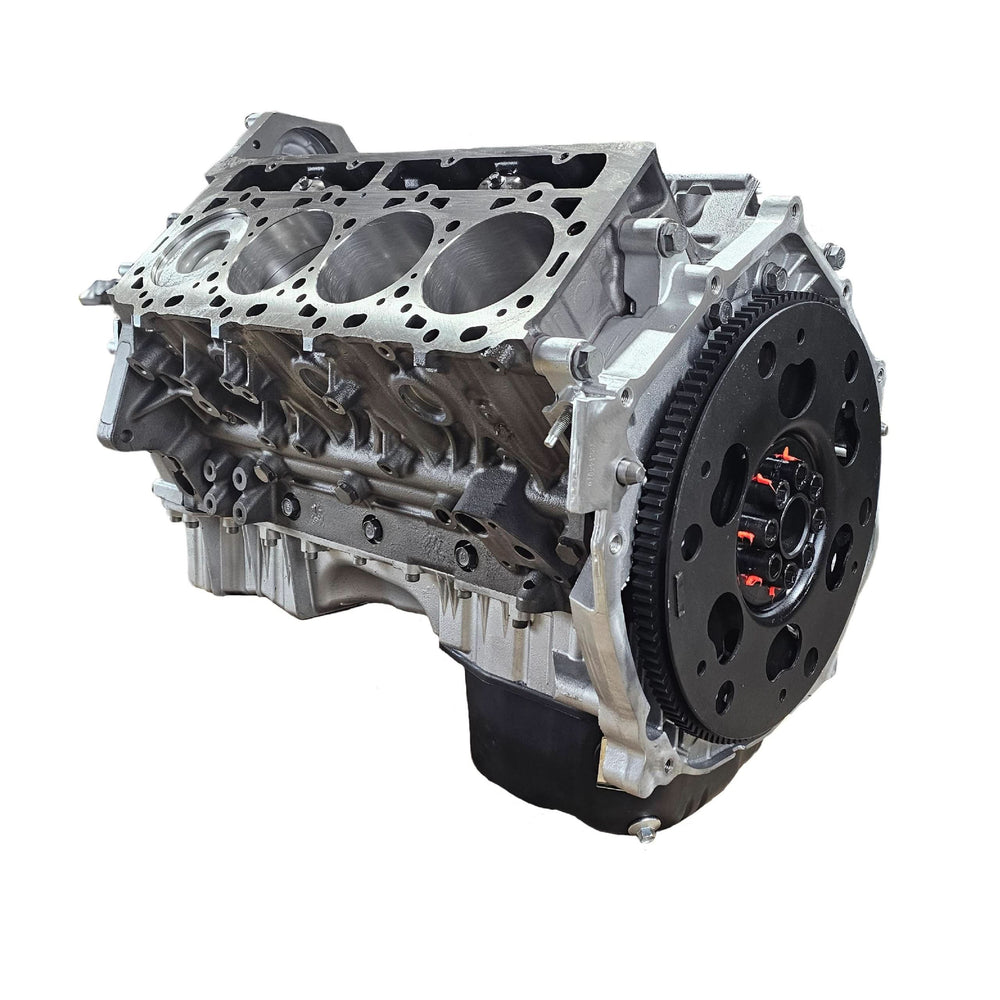

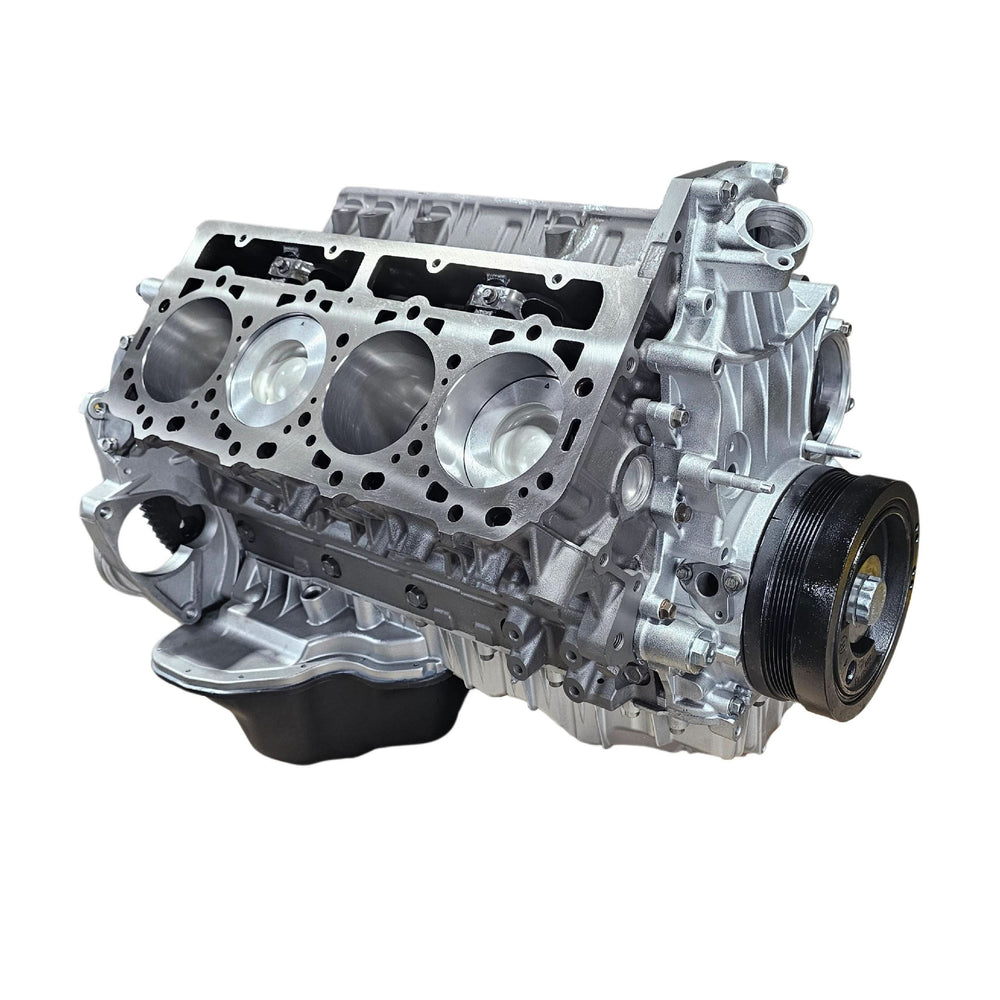

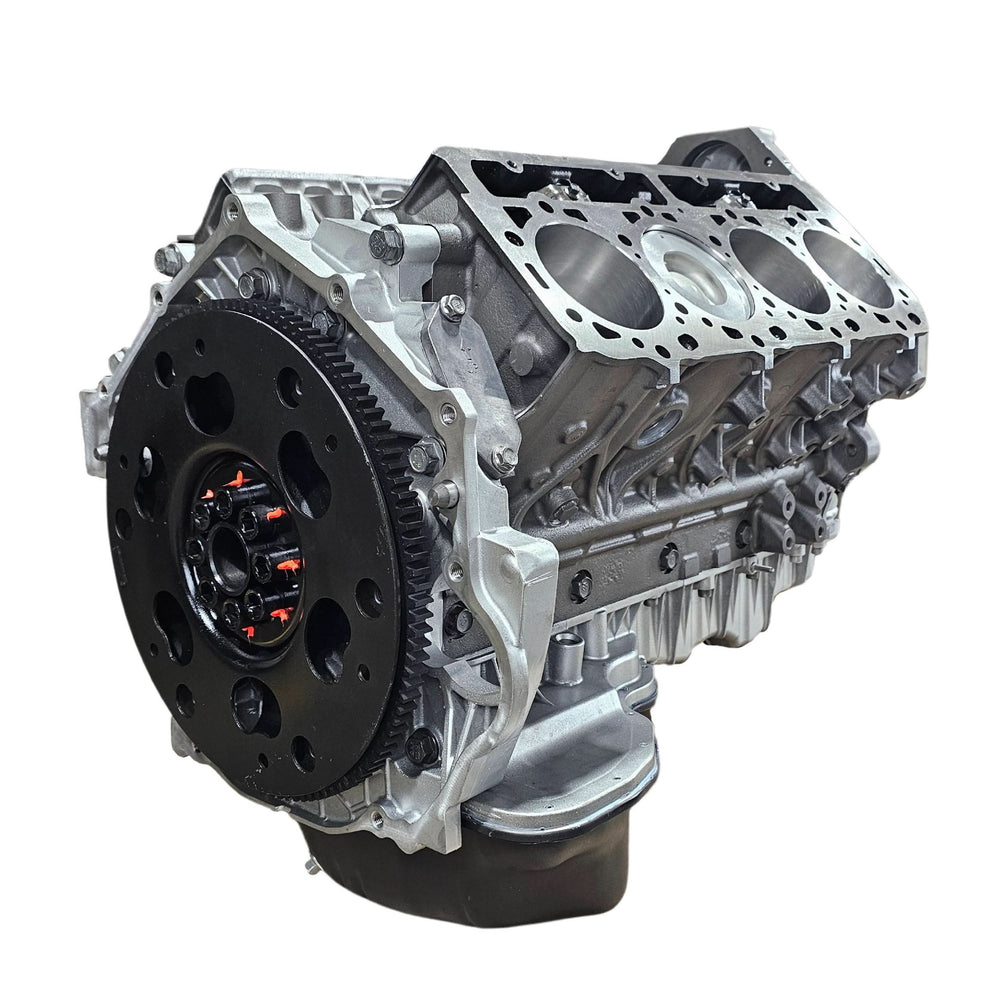

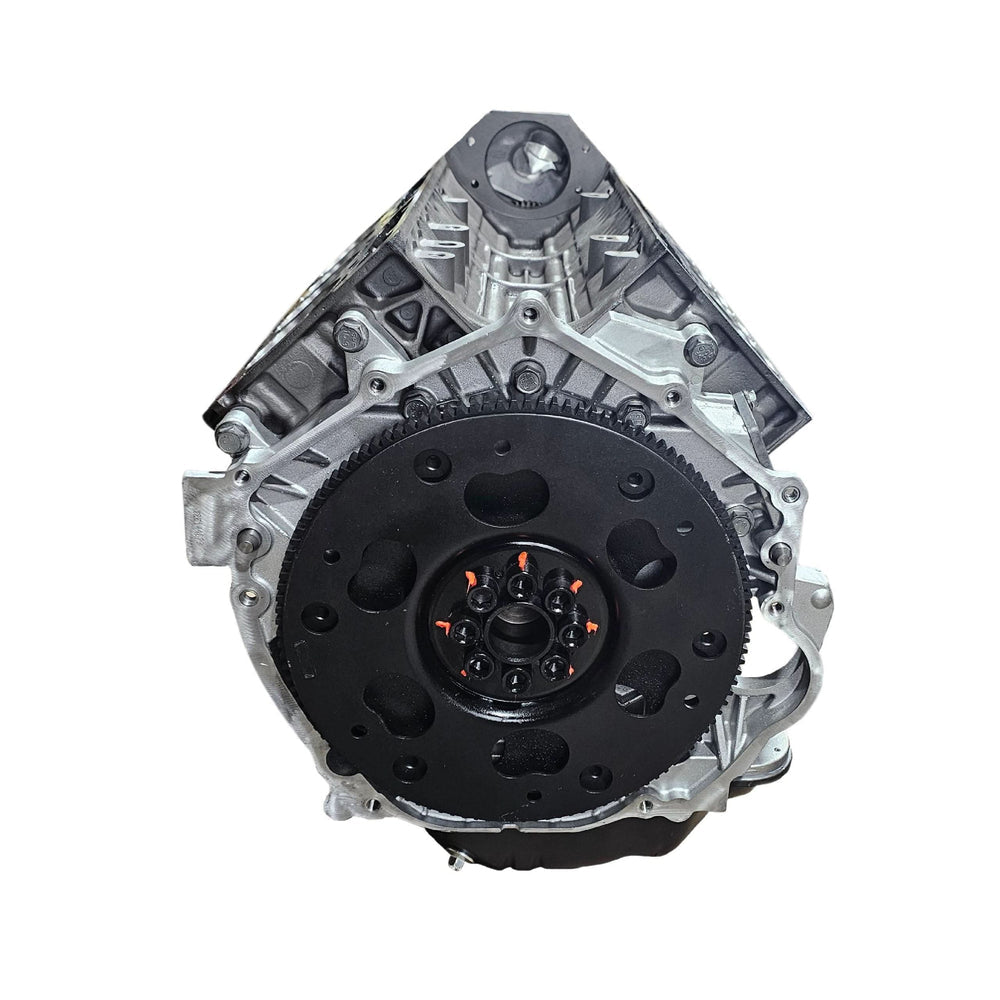

6.6L 04.5-05 Duramax Short Block Daily Driver LLY Diesel Crate Engine Choate Performance

6.6L 04.5-05 Duramax Short Block Daily Driver LLY Diesel Crate Engine Choate Performance

Awaiting stock, shipping soon
$9,000.00
$9,000.00
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

6.6L Duramax Short Block Daily Driver LLY Engine 2004.5-2006 - Duramax Diesel Engine.

This build Includes:

  • New Freeze Plugs
  • Keyed Crankshaft
  • Balanced and Weight Matched Rotational Assembly
  • 5 year/100k Mile Warranty
  • Flywheel
  • New Harmonic Balancer
  • Installed Upper Oil Pan
  • Installed Lower Oil Pan
  • Installed Rear Cover
  • Installed Front Cover
  • Installed Front Main Seal
  • Installed Rear Main Seal
  • Pressure Tested
  • Surfaced to exceed Ra finish for MLS Gaskets
  • New Oil Pump Installed
  • Installed Oil Level Sensor
  • Check both wrist pin and crank pin to rod clearances
  • New Upgraded Pistons
  • New Piston Rings
  • New Piston Pin Retainers
  • New OE Lifters
  • Lifter Guides
  • OE Crank Flange Bolts
  • Crankshaft is Polished and ground to .0005 concentricity or less
  • Camshaft - Polished and Inspected
  • New Rod Bearings
  • New Main Bearings
  • New Cam Bearings
  • Install Pickup Tube O-ring
  • Connecting Rods
  • New Damper

Machining Processes:

  • Full CNC blue print machining, (bore, deck, hone and line honed)
  • The Cylinder bores are blue print bored to a true 90 degrees over the crankshaft center line
  • Diamond honed to within .0002 inch for precise piston to cylinder bore clearance.
  • Bored and line hone the crank bore housing to precisely align the crankshaft in the engine block.
  • Torque Plate Honed
  • The piston diameter measured to the nearest .0001 inch matched to cylinder bores.
  • The Cylinder block is surfaced to a finish of RA30 or lower, which meets the factory specification in both flatness and smoothness for the block to head sealing surface.
  • This is mandatory for proper sealing of a MLS Gasket.
  • Flexplate for Automatic transmission. (If you are using this for a manual transmission we highly suggest sending in your flywheel and pressure plate so we can achieve the best balancing job possible for your engine.)
