6.6L Full Running Workhorse LML Engine Choate Performance 2011-2016 - Duramax Diesel Engine Choate Performance

6.6L Full Running Workhorse LML Engine Choate Performance 2011-2016 - Duramax Diesel Engine Choate Performance

Awaiting stock, shipping soon
$25,000.00
$25,000.00
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

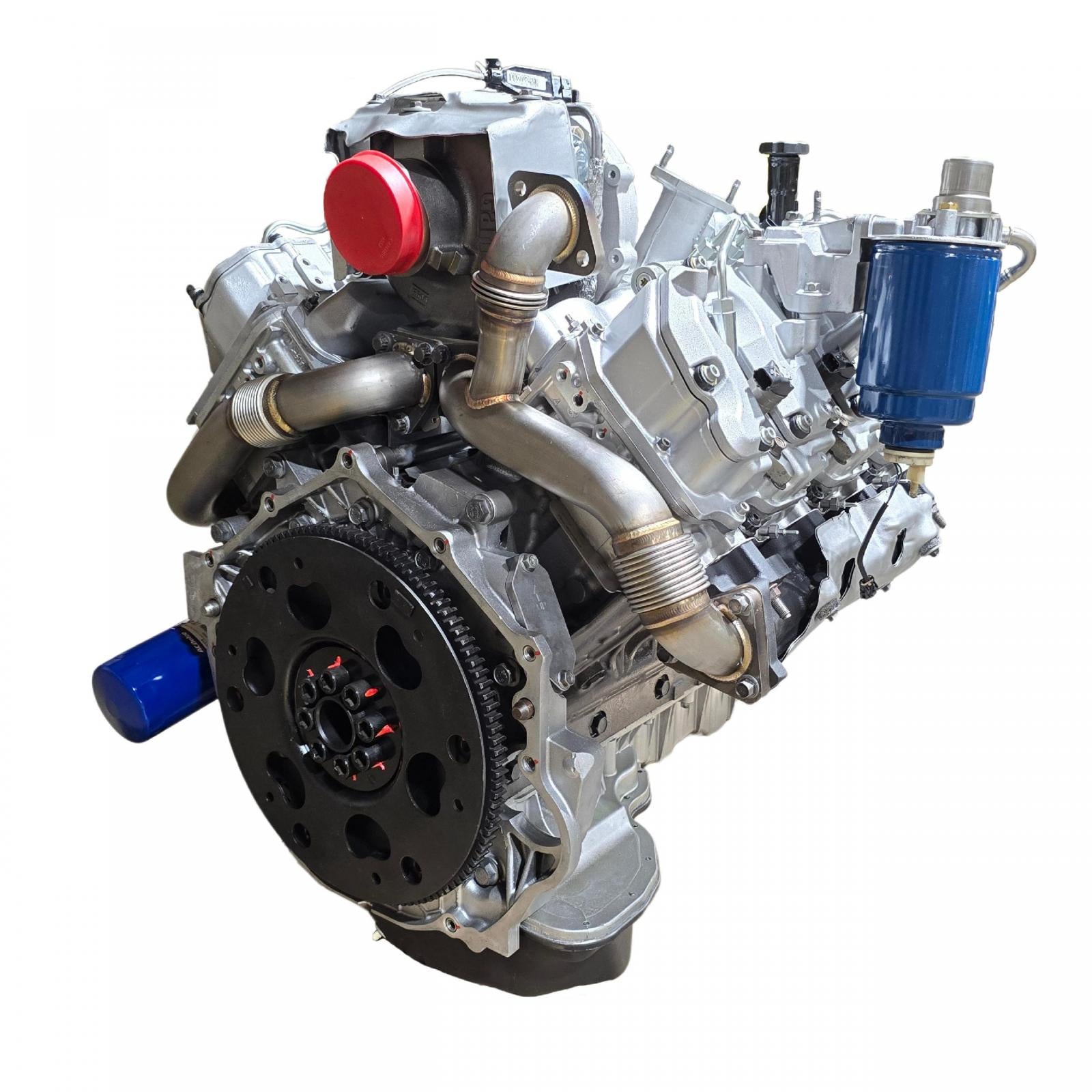

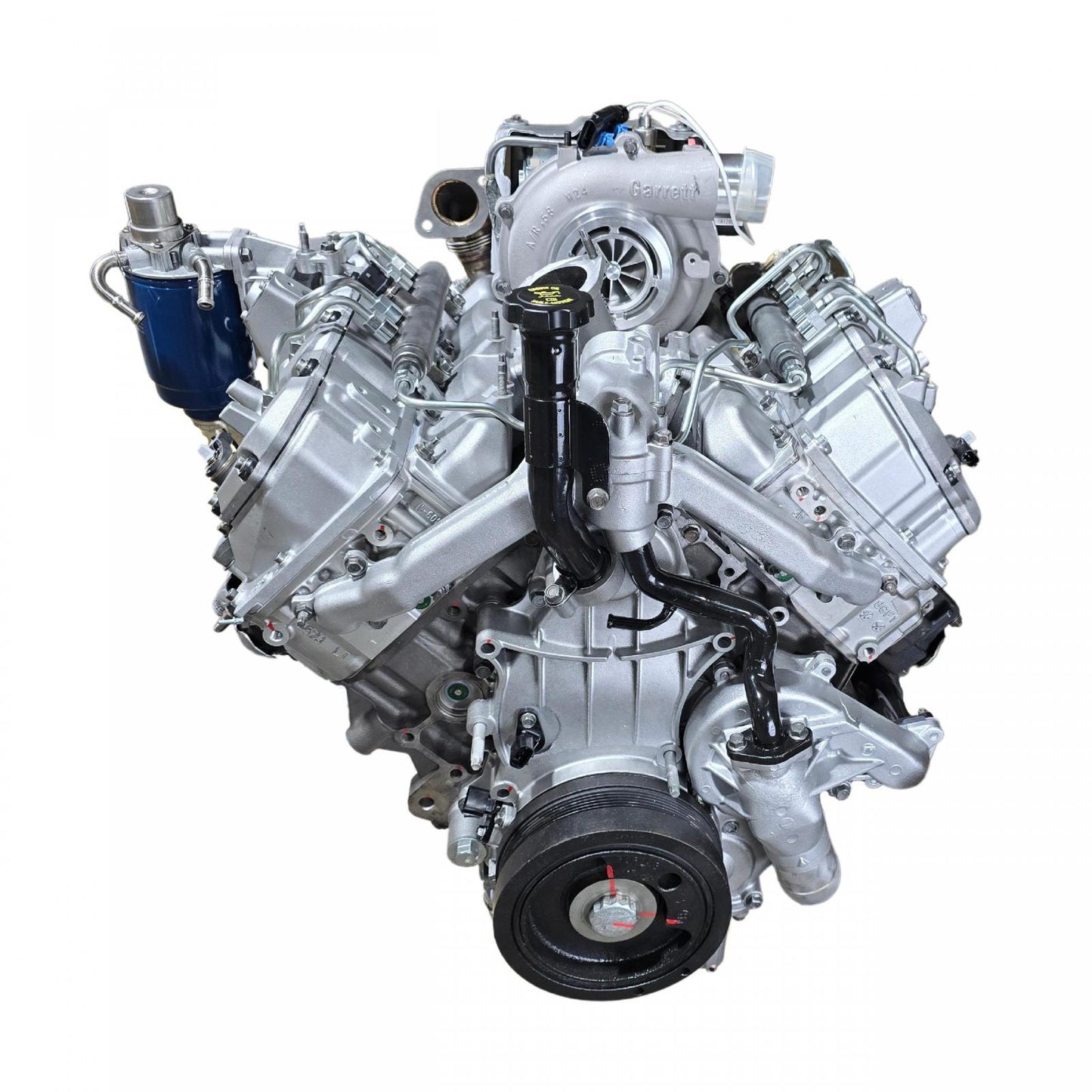

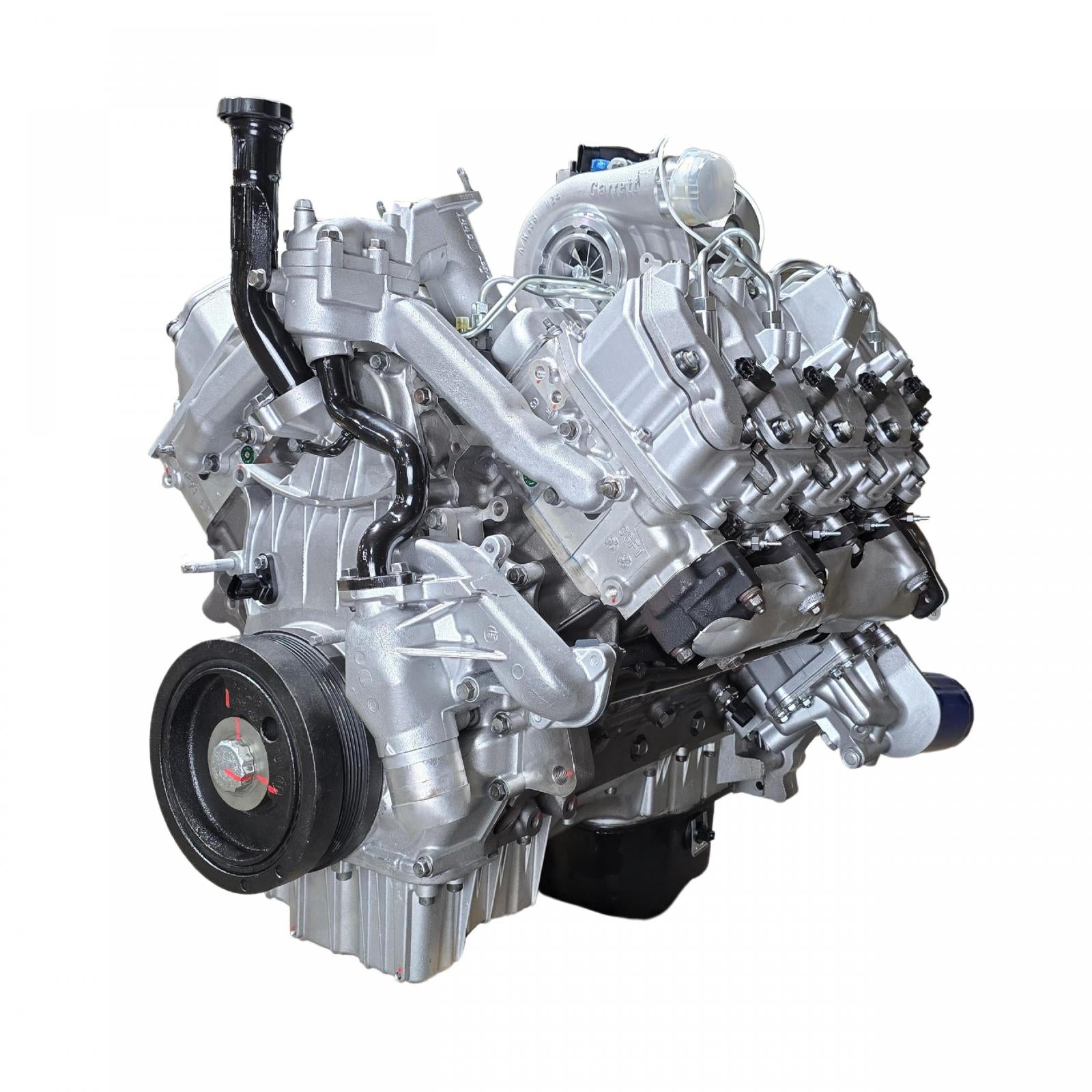

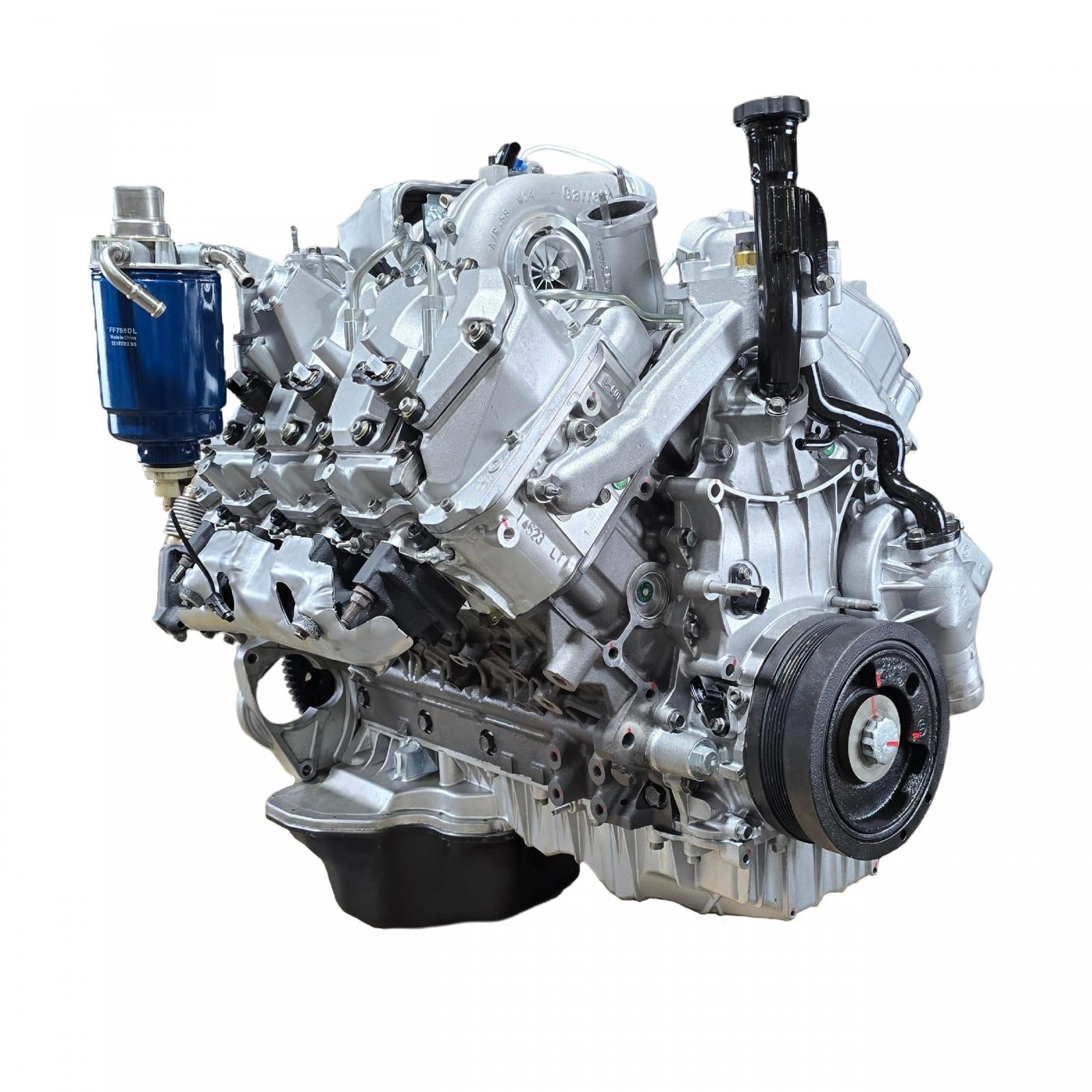

6.6 LML Complete Drop In Engine Workhorse 2011-2016 - Duramax Diesel Engine.

This build Includes:

  • Fuel Injectors
  • Fuel Rails
  • CP3 Fuel Pump
  • Fuel Rail Pressure Sensor
  • Fuel Rail Regulator
  • Fuel Supply Lines
  • Fuel Return Lines
  • Rocker Housings
  • Valve Covers
  • TurboCharger
  • UpPipes
  • Exhaust Manifold
  • Water Pump
  • Intake Manifold
  • Oil Level Sensor
  • Injector Wiring Harness
  • Coolant Temp Sensor
  • Oil Cooler
  • Oil Filter
  • Oil Filter Housing
  • New Freeze Plugs
  • Keyed Crankshaft
  • Balanced Rotational Assembly
  • 5 year/100k Mile Warranty
  • New Flywheel
  • New Harmonic Balancer
  • Upper Oil Pan
  • Lower Oil Pan
  • Rear Cover
  • Front Cover
  • Front Main Seal
  • Rear Main Seal
  • Head Studs
  • Remanufactured Heads
  • New Guides
  • New Valve Seals
  • CNC Valve Machining
  • Pressure Tested
  • Surfaced to exceed Ra finish for MLS Gaskets
  • Our Built-In-House O Ringed Heads
  • Stage 2 Camshaft
  • Chromoly Push Rods
  • Flycut, Coated, and Delipped Pistons
  • Pressure Test Heads
  • Remanufactured Valves
  • New Induction Hardened Seats
  • All New Valve Guides
  • Install New Valve Seals
  • Test Spring Tension
  • New Freeze Plugs
  • Keyed Crankshaft
  • Head Studs
  • Choate Coated, Flycut, and Delipped Pistons
  • New Piston Rings
  • New Piston Pin Retainers
  • New OE Lifters
  • Lifter Guides
  • OE Crank Flange Bolts
  • Crankshaft - Balanced and Matched Rotational Assembly
  • Crankshaft is Polished and ground to .0005 concentricity or less
  • New Rod Bearings
  • New Main Bearings
  • New Cam Bearings
  • Install Pickup Tube O-ring
  • Connecting Rods
  • Full CNC blue print machining, (bore, deck, hone and line honed)
  • The Cylinder bores are blue print bored to a true 90 degrees over the crankshaft center line
  • Diamond honed to within .0002 inch for precise piston to cylinder bore clearance
  • Bored and line hone the crank bore housing to precisely align the crankshaft in the engine block.
  • Torque Plate Honed
  • The piston diameter measured to the nearest .0001 inch matched to cylinder bores.
  • The Cylinder block is surfaced to a finish of RA30 or lower, which meets the factory specification in both flatness and smoothness for the block to head sealing surface.
  • This is mandatory for proper sealing of a MLS Gasket.
  • Keyed Crankshaft
  • Flexplate for Automatic transmission. (If you are using this for a manual transmission we highly suggest sending in your flywheel and pressure plate so we can achieve the best balancing job possible for your engine. Also, now is a great time to upgrade your clutch. Get with our team to talk about the options we have available for you!)
