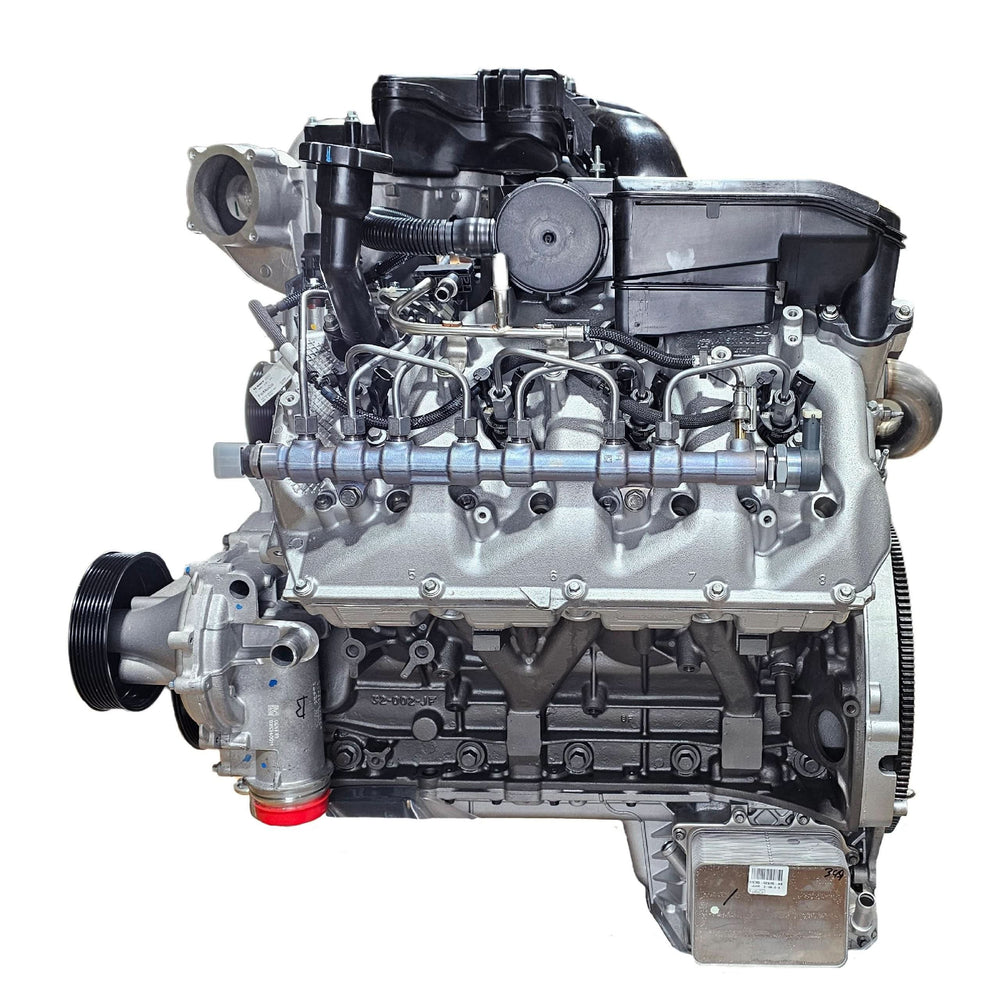

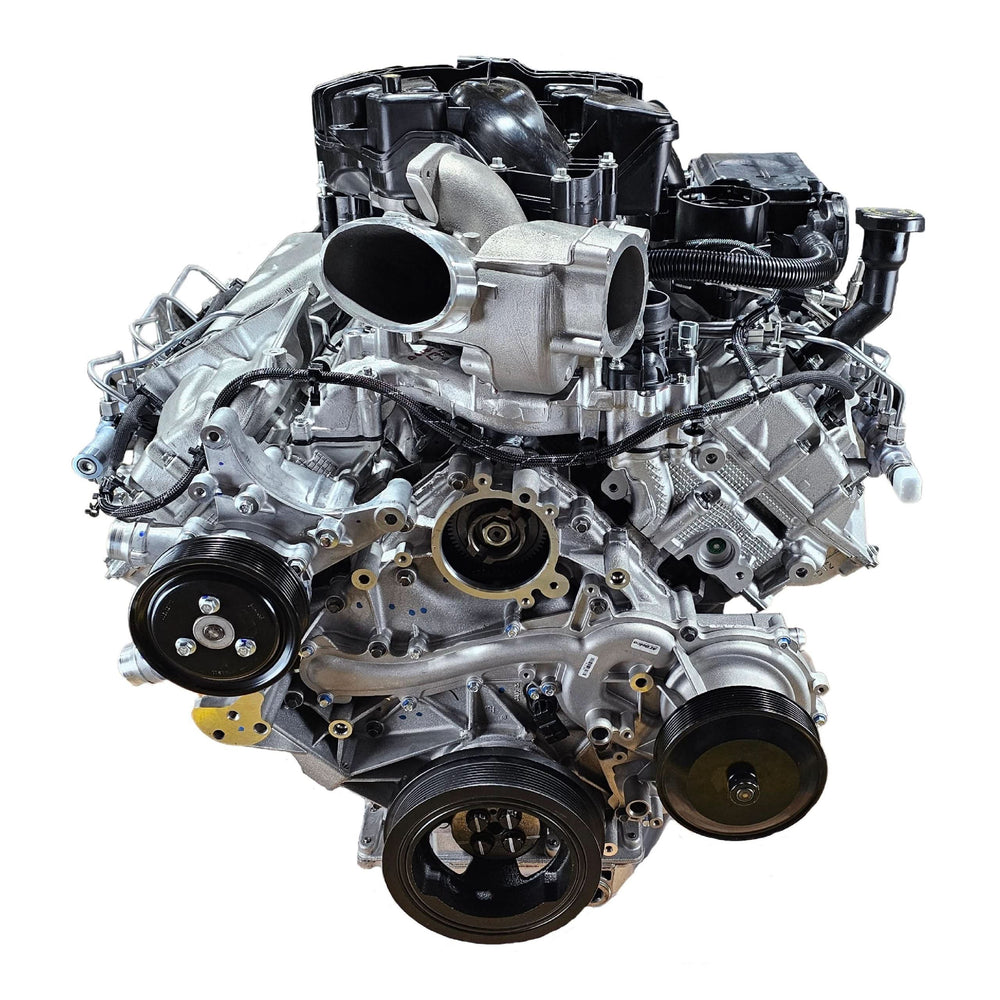

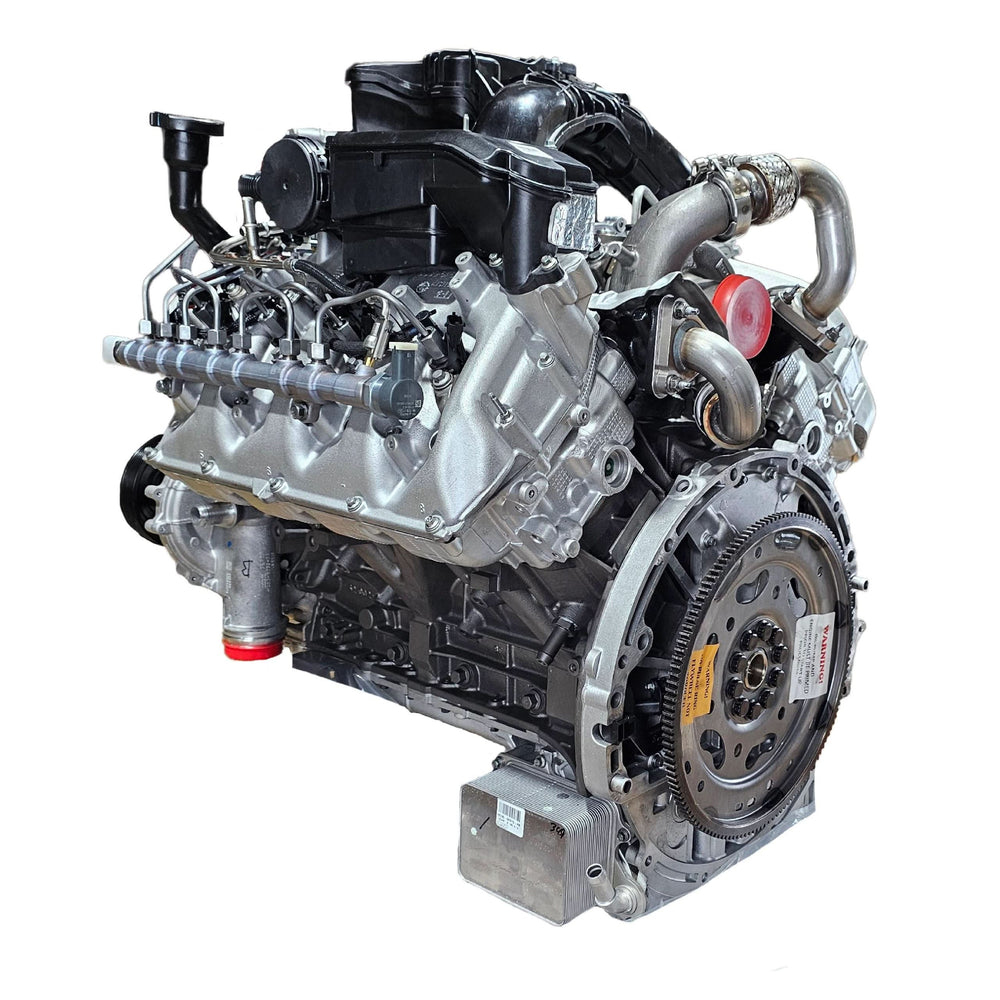

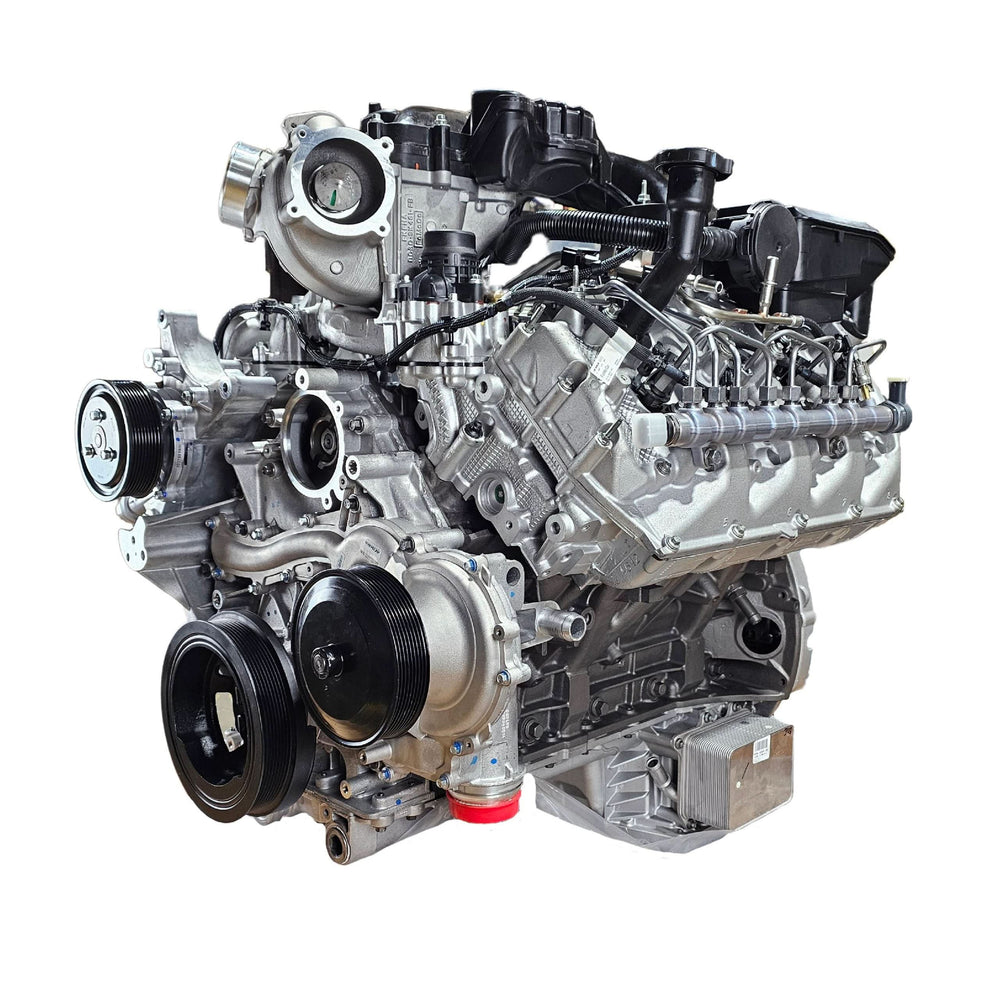

6.7L 17-19 Powerstroke Full Running Workhorse Ford Diesel Crate Engine Cab and Chassis Choate Performance

Choate 6.7L Full Running Workhorse Engine 2017-2019 Powerstroke Ford Cab and Chassis Diesel.

Choate Part Number: CEP67PFWC19

Fitment:

• Fits 6.7L Full Running Workhorse Engine 2017-2019 Powerstroke Ford Cab and Chassis Diesel Engine

Here is something you probably didn't know. Many remanufacturers reuse parts that you thought you were getting new, like pistons and lifters. Not to mention all the corners cut in the machining processes. We take the time to show you what we do, so you can understand and appreciate what a great engine build takes. We aren't the cheapest, and you can't afford for us to be. We wouldn't want to compromise the quality you deserve.

Before purchasing please verify the year model engine is compatible with your truck. 6.7 Powerstrokes Came stock from Ford with a 8-bolt flexplate and torque converter that are no longer manufactured.

All 6.7 Powerstroke balanced assemblies from Choate Engineering come with the updated 6-bolt flexplate from 2013-Present and require the customer to update the torque converter or purchase one from us directly.

• 6.7 Powerstrokes have a larger Hole Diameter for the motor mounts and bolts.
• Cylinder Block
• Bore block back to crankshaft center line
• Hone block to 12Rk finish
• Crankshaft
• Check crankshaft main and rod clearances
• Magnuflux crankshaft
• Balance rotational assembly
• Replace Main bearings
• Replace rod bearings
• Replace cam bearings
• Replace Main bolts
• Steel Connecting Rods
• Inspect and condition rods
• Camshaft
• Inspect and polish camshaft
• Crankshaft
• Polish crankshaft
• Steel Pistons
• Install Pistons
• Pistons, rings, Pin retainers weight matched prior to crank balancing (optional ceramic and DFL coating available)
• Reman Heads
• Resurface heads
• Magnuflux and pressure test heads
• Cut new valve seats
• Cut valves
• Install new valve guides
• Install new valve seals
• Test spring tension
• Install New Head Gaskets
• Install Studs
• Install New Bed Seals
• Install Rear Main Seals
• Install New Lifters
• Rear Cover Gasket
• Rear Main Seal
• Rear Cover Installed
• New OE Harmonic Balancer
• New Flywheel

Items Included:

• 2 Water pumps
• 4 Thermostats
• Fuel Rail Pressure Sensor
• Front cover and gaskets
• Turbocharger Turbo
• Pickup tube
• Map Sensor
• Coolant Temp Sensor
• Intake Air Temp Sensor
• Exhaust Back Pressure Sensor
• Engine Oil Pressure Switch
• Crank Position Sensor
• Camshaft Position Sensor
• Oil Cooler
• Fuel Filter

Choate Engineering Performance Crate Engine Features :

• 600 HP rate.
• Designed with the working man in mind.
• The perfect platform for those who do heavy hauling regularly.
• Fully balanced.

Upgrades over the Daily Driver include but are not limited to:

• O-Ringed Heads
• Billet Flex Plate
• Coated, Fly Cut and Delipped Pistons
• Stage 2 Cam
• Chromoly Pushrods
• Welded Cam Gear

Common Issues With The Ford Powerstroke 6.7L (and how we fix them)

• Main and Rod Bearing Clearance Issues- IE, Spun Bearings. Our fix includes machining for the correct clearances as well as upgraded bearings designed to handle higher levels of stress.
• Valve Failures- OEM Exhaust Valves separate causing at the least, lost compression, at the worst, piston to valve contact causing catastrophic failure.
• We do not modify the existing valves as most do, we use an all new valve with better materials that do not have this high-heat separation issue.
• Crank Gear Spinning- Standard on all our 6.7L builds is a welded crank gear. From Ford this gear is prone to spinning, throwing off timing, and bending all 32 pushrods.
• TIG welding the gear in place eliminates this issue.
• Cam Tunnel Misalignment- The issue here comes with the aftermarket fix which is to use larger clearance bearings. This in turn causes low oil pressure.
• We do not use larger clearance bearings, we use our own proprietary bearings which allow for perfect alignment.
• Our 6.7's see on average 5lbs more oil pressure at startup than others.
