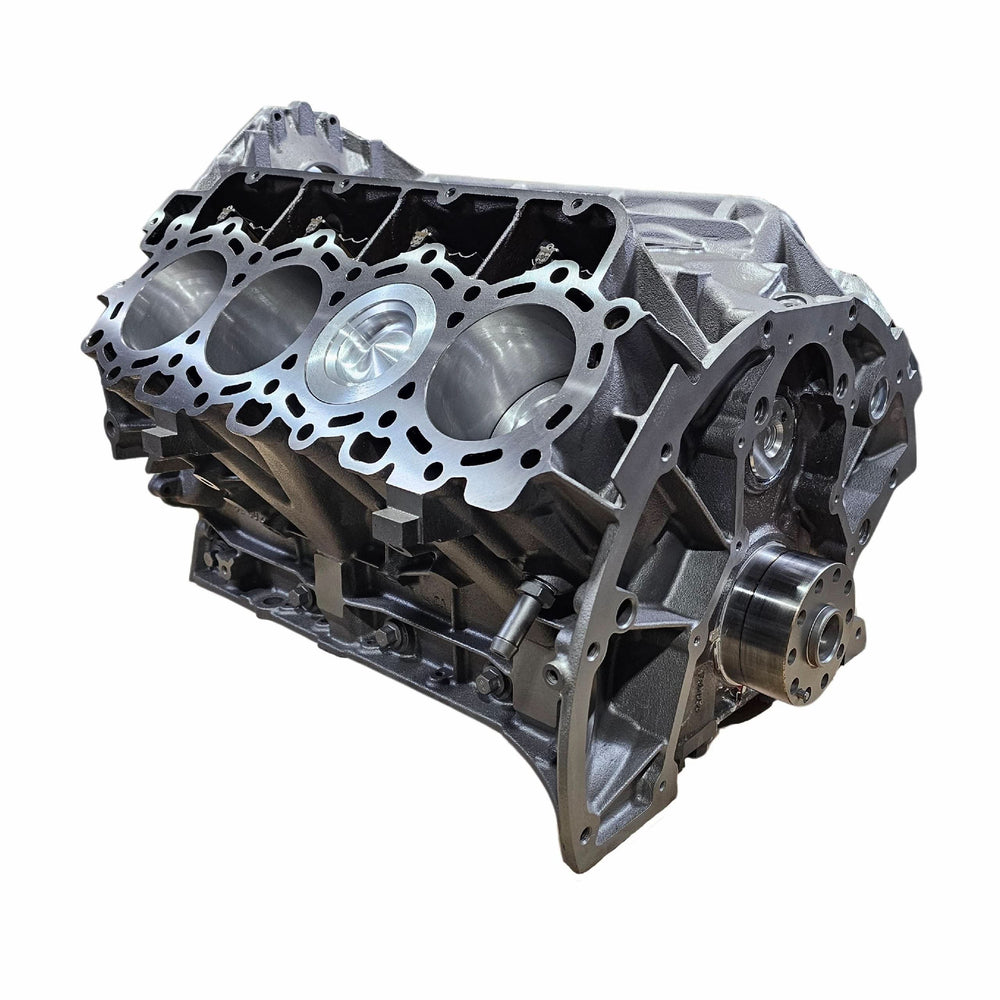

6.7L 20-24 Powerstroke Short Block Daily Driver Ford Diesel Crate Engine Choate Performance

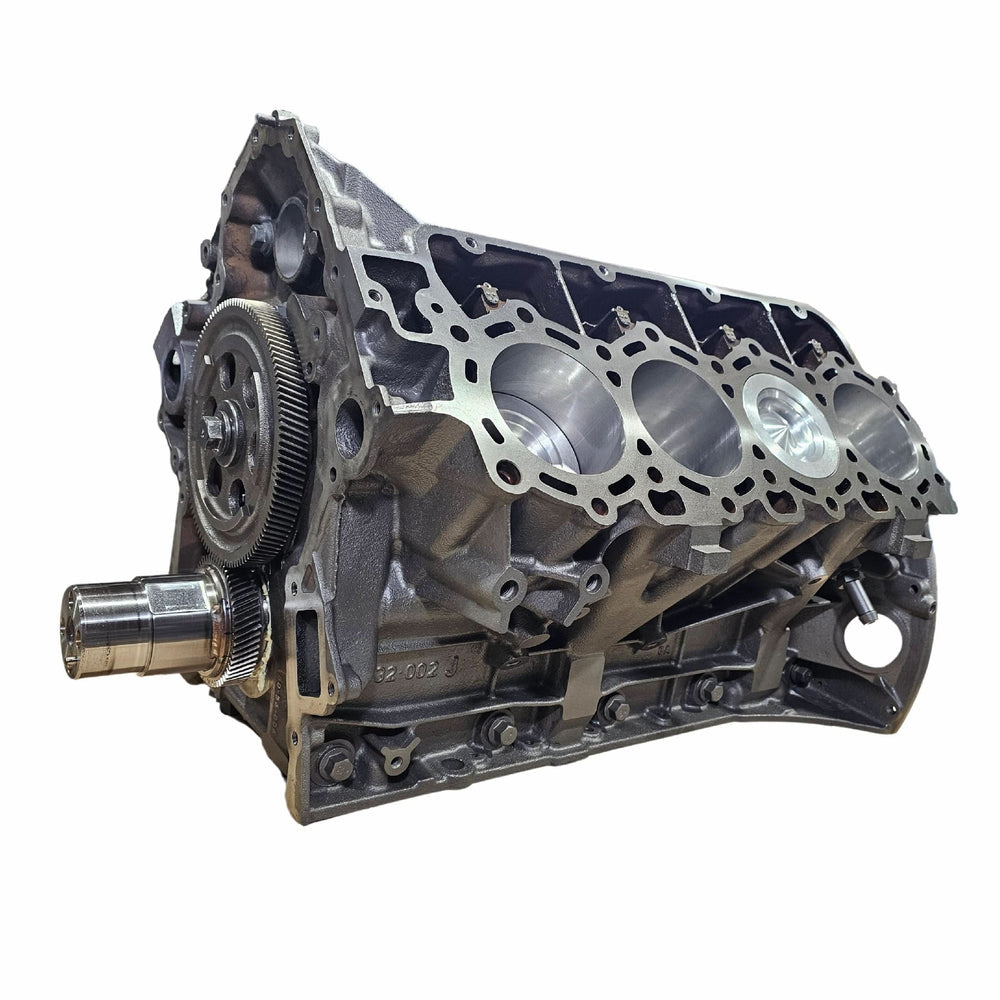

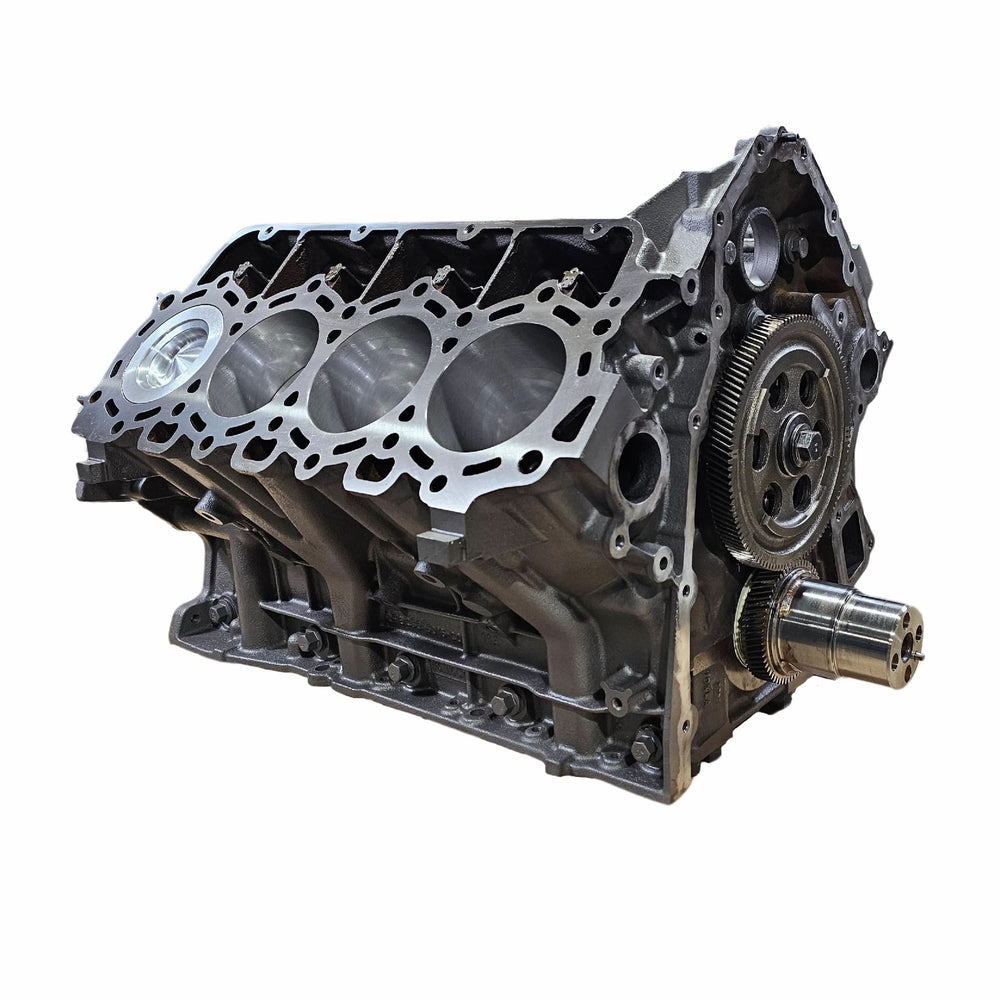

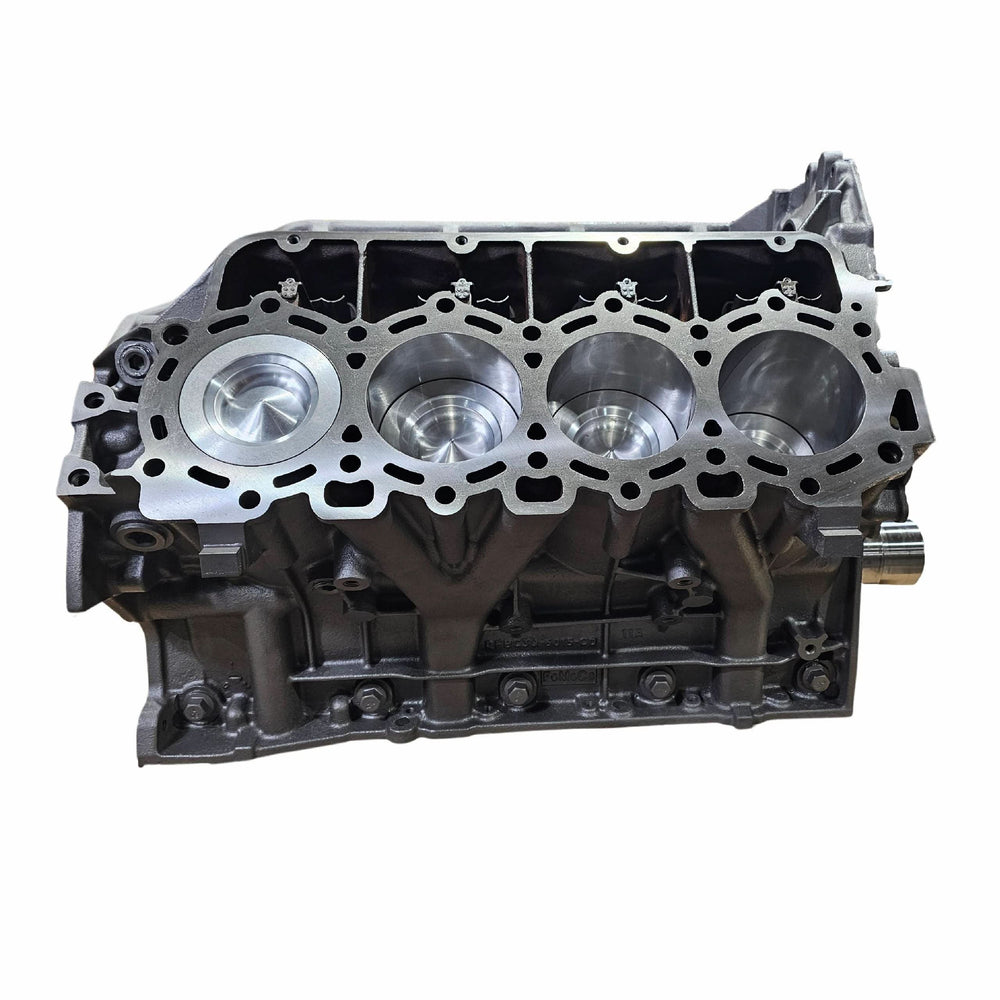

Choate 6.7L Short Block Daily Driver Engine 6.7L Long Block Daily Driver Engine 2020-2024 - Powerstroke Ford Diesel.

Choate Part Number: CEP67PSD2024

Here is something you probably didn't know. Most Remanufacturers reuse parts that you thought you were getting new. Like pistons and lifters. Not to mention all the corners cut in the machining processes. We take the time to show you what we do, so you can understand and appreciate what a great engine build takes. We aren't the cheapest, and you can't afford for us to be. We wouldn't want to compromise the quality you deserve.

2011-2012 6.7 Powerstrokes Come stock from Ford with a 8-bolt flexplate and torque converter that are no longer manufactured. All 6.7 Powerstroke balanced assemblies from Choate Engineering come with the updated 6-bolt flexplate from 2013-Present and require the customer to update the torque converter or purchase one from us directly. Ford no longer supports the 8 bolt flexplate used in 2011 and early 2012. Be sure to verify this. 2017-Present 6.7 Powerstrokes have a larger Hole Diameter for the motor mounts and bolts.

This build Includes:

• New Freeze Plugs.
• Full CNC blue print machining, (bore, deck, hone and line honed)
• The Cylinder bores are blue print bored to a true 90 degrees from the crankshaft center line, prior to being diamond honed to within .0002 inch for precise piston to cylinder bore clearances.
• The cylinders are bored 90 degrees over the crankshaft.
• The piston diameter measured to the nearest .0001 inch matched to cylinder bores.
• The Cylinder block is surfaced to a finish of RA30 or lower, which meets the factory specification in both flatness and smoothness for the block to head sealing surface.
• This is mandatory for proper sealing of a MLS Gasket.
• Connecting Rods
• New Damper
• New Flexplate
• HX High Performance Bearings

Check both wrist pin and crank pin to rod clearances

• New Pistons
• New Piston Rings
• New Pin Retainers
• New OE Lifters
• Lifter Guides
• Crankshaft - Balanced and weight matched Rotational assembly
• checked for run-out inspected for fatigue. Crankshaft is Polished and ground to .0005 concentricity or less
• Camshaft - Polished and Inspected
• New Rod Bearings
• New Main Bearings
• New Cam Bearings
• Install Rear Main Seal
• Install New Rear Cover Gasket
• Install Upper Oil Pan
• Install Lower Oil Pan
• Install Pickup Tube O-ring
• Rear Cover Installed

Choate Engineering Performance Crate Engine Features : This Choate engine is fully balanced, and is the perfect engine for spirited daily driving, consumer level towing and everyday life.

Common Issues With The Ford Powerstroke 6.7L (and how we fix them):

• Main and Rod Bearing Clearance Issues- IE, Spun Bearings. Our fix includes machining for the correct clearances as well as upgraded bearings designed to handle higher levels of stress.
• Valve Failures- OEM Exhaust Valves separate causing at the least, lost compression, at the worst, piston to valve contact causing catastrophic failure.
• We do not modify the existing valves as most do, we use an all new valve with better materials that do not have this high-heat separation issue.
• Crank Gear Spinning- Standard on all our 6.7L builds is a welded crank gear.
• From Ford this gear is prone to spinning, throwing off timing, and bending all 32 pushrods.
• TIG welding the gear in place eliminates this issue.
• Cam Tunnel Misalignment- The issue here comes with the aftermarket fix which is to use larger clearance bearings. This in turn causes low oil pressure.
• Our 6.7's see on average 5lbs more oil pressure at startup than others.
