• 6 Inch Lift Kit for 2025 Ram 1500 4WD 6 Inch Front 5 Inch Rear Suspension Lift System Standard Bore Fox Adv Rear Shocks Zone Offroad

6 Inch Lift Kit for 2025 Ram 1500 4WD 6 Inch Front 5 Inch Rear Suspension Lift System Standard Bore Fox Adv Rear Shocks Zone Offroad

6 Inch Lift Kit for 2025 Ram 1500 4WD 6 Inch Front 5 Inch Rear Suspension Lift System Standard Bore Fox Adv Rear Shocks Zone Offroad

Out of stock
$1,763.55
$1,763.55 $1,763.55

  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

Question about this product?

We're happy to help.

Sold out

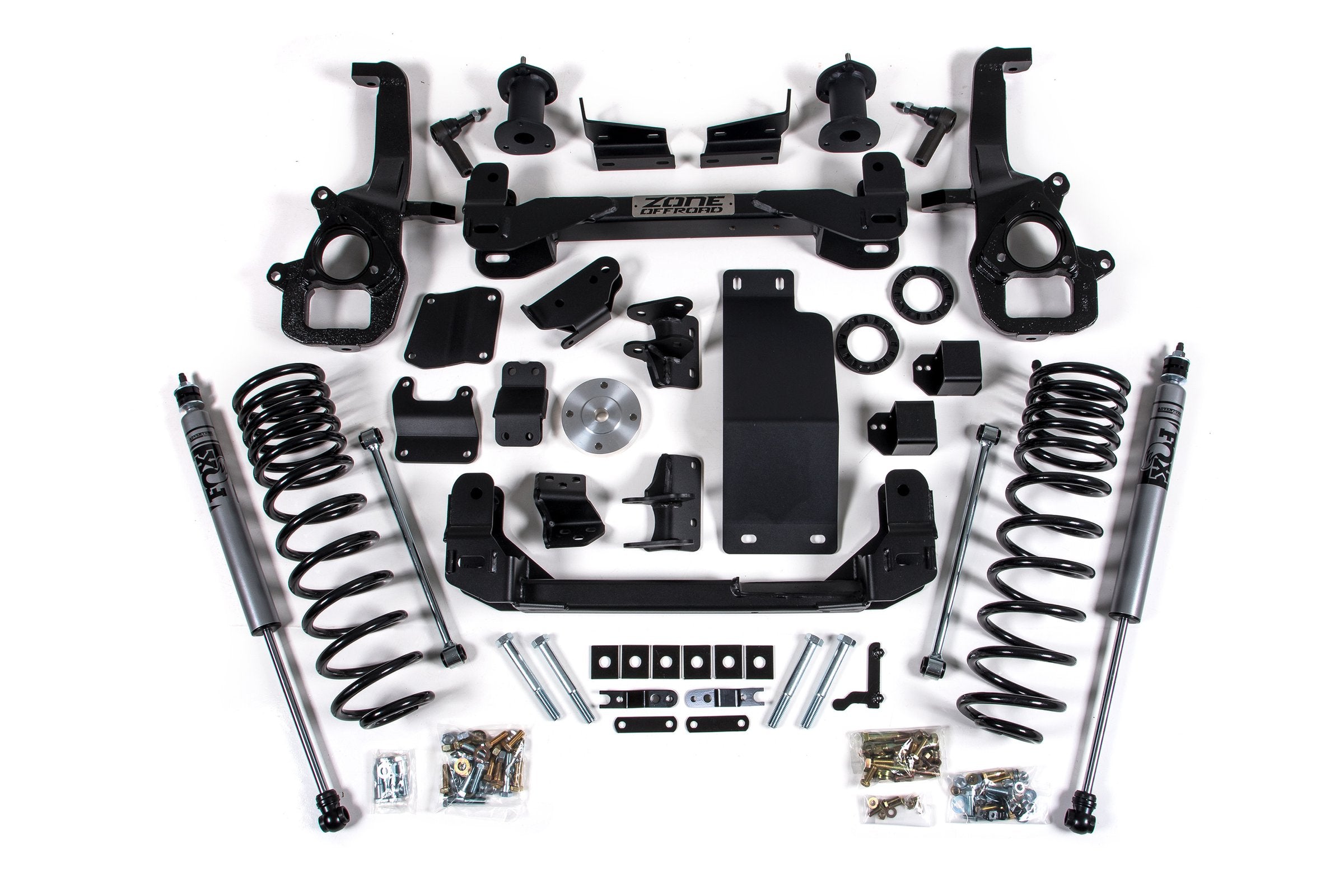

Take your 2025-Present RAM 1500 to new heights with the new 6 Inch IFS Lift System from Zone Offroad. Specially designed for the new RAM trucks to improve stance with clearance for larger tires. These kits are built right here in the USA to the highest quality standards to all for improved on-road and offroad performance.

As with all Zone Offroad lift kits, these new kits are backed by Factory Protection Plus for peace of mind wherever your adventures may take you. Factory Protection Plus includes Zone Offroad's Limited Lifetime Warranty, ESC system compatibility and a 5-year 100,000-mile drivetrain warranty.
Features:

  • 2025 Ram 1500 4WD 6 Inch Front 5 Inch Rear Suspension Lift System - Standard Bore - Fox Adv Rear Shocks
  • Corrects suspension, steering, and driveline geometry for great on-road handling and improved off-road performance.
  • Heavy-duty differential skid slate improves offroad protection.
  • High-strength, CNC machined, replacement steering knuckles improve strength while correcting steering angles.
  • Top mount strut and preload spacers set ride height and maintain ride quality.
  • Rear coil springs achieve leveled stance while maintain ride quality and load capacity.

Specs:

  • Front Lift Height: 6 Inch
  • Rear Lift Height: 5 Inch
  • Material: Steel
  • Front Lift Method: Knuckle and Strut Spacer
  • Rear Lift Method: Coil Springs
  • Lift Type: Lift Kit
  • Wheel Size: 20 x 9
  • Back Spacing: 5 Inch
  • Max Tire Size: 35 x 12.5
  • Wheel Size 2: 18 x 9
  • Back Spacing 2: 5 Inch
  • Max Tire Size 2: 35 x 12.5
  • Finish: Powdercoat
  • Cutting Required: Yes
  • Accommodates Factory Wheels: No
  • Welding Required: No

Includes:

  • 2025 Ram 1500 Knuckle Box Kit - Driver - Standard Bore
  • 2025 Ram 1500 Knuckle Box Kit - Passenger - Standard Bore
  • 2025 Ram 1500 Front Box Kit 2 of 2
  • 2019-2025 RAM 1500 4wd 4-6 Inch Front Box Kit 1 of 2
  • 2019-2025 RAM 1500 4wd 6 Inch Strut Spacer Box Kit
  • 2019-2025 RAM 1500 4wd 3-5 Inch Rear Box Kit
  • 2019-2025 RAM 1500 4wd 5 Inch Rear Box Kit
  • Fox Adv Shock 29.84 x 18.25 x 2-S50/EB1

Imortant Notes:

  • Will Not fit 2019-2021 RAM 1500 Classic models, Refer to the 2018 kit listings.
  • Will Not fit models equipped with the Thermal Axle option. Reference build code DSK-P.
  • Vehicles equipped with the OffRoad Group option require special steps similar to Ram 1500 Rebel. To find out if your truck is equipped with the Off-Road Group, call your local Ram dealer, provide your VIN and ask if they can pull your window sticker. In the Optional Equipment section there will be a line item that reads Off-Road Group if your truck is equipped.
  • RAMs with factory 22 Inch wheels require the larger bore knuckles due to larger wheel bearing assembly. Reference build code WPM or WPZ.
  • Stock 18 Inch wheels cannot be reinstalled due to steering interference. Stock 20s can be reinstalled with factory tire size.
  • This kit will Not work on Diesel models.
  • Does Not work for models with factory rear airbag suspension.
  • Wheels with maximum reccomended back space, please test fit on the vehicle before mounting an balancing tires.
