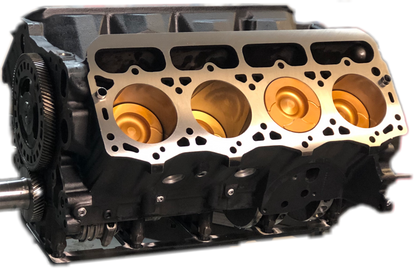

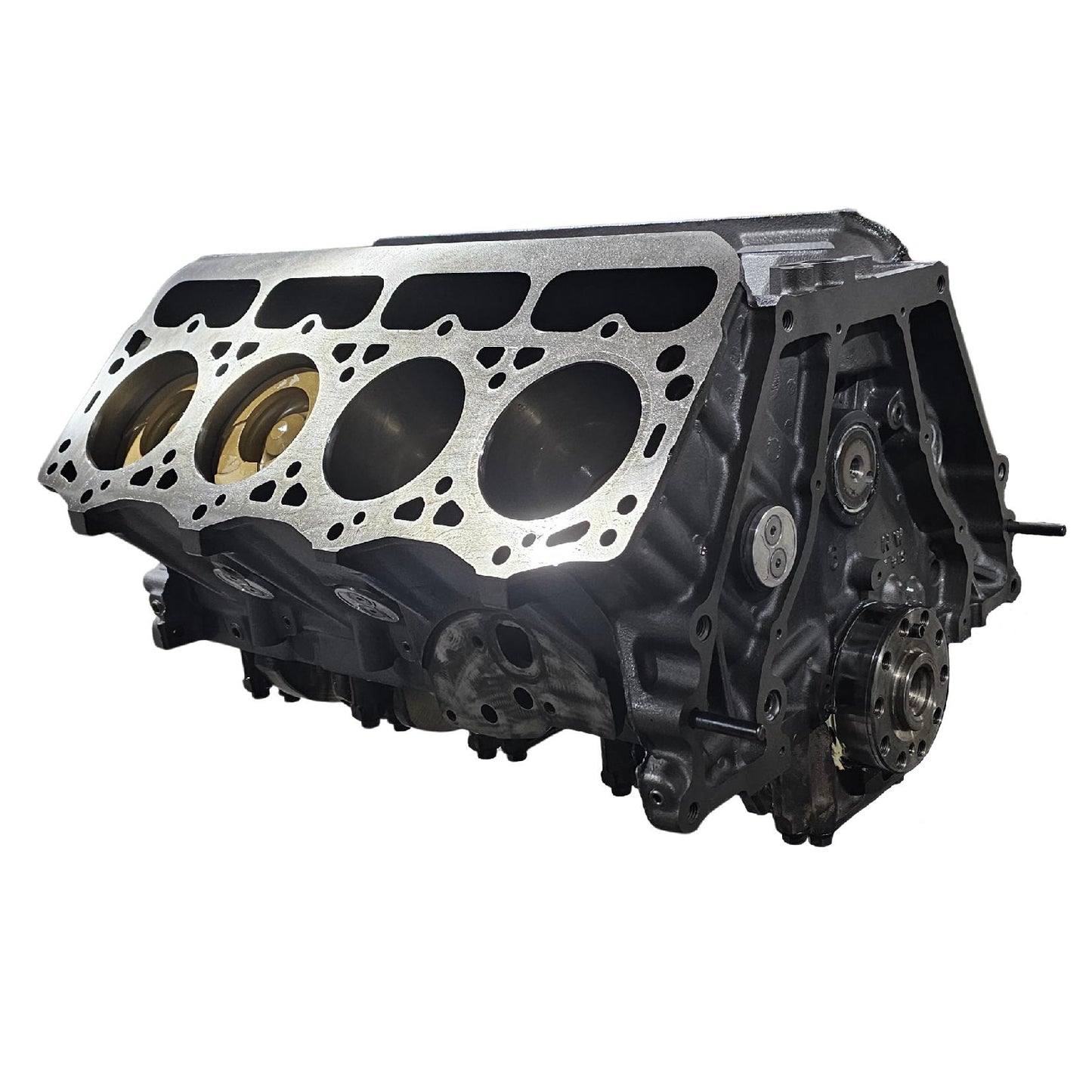

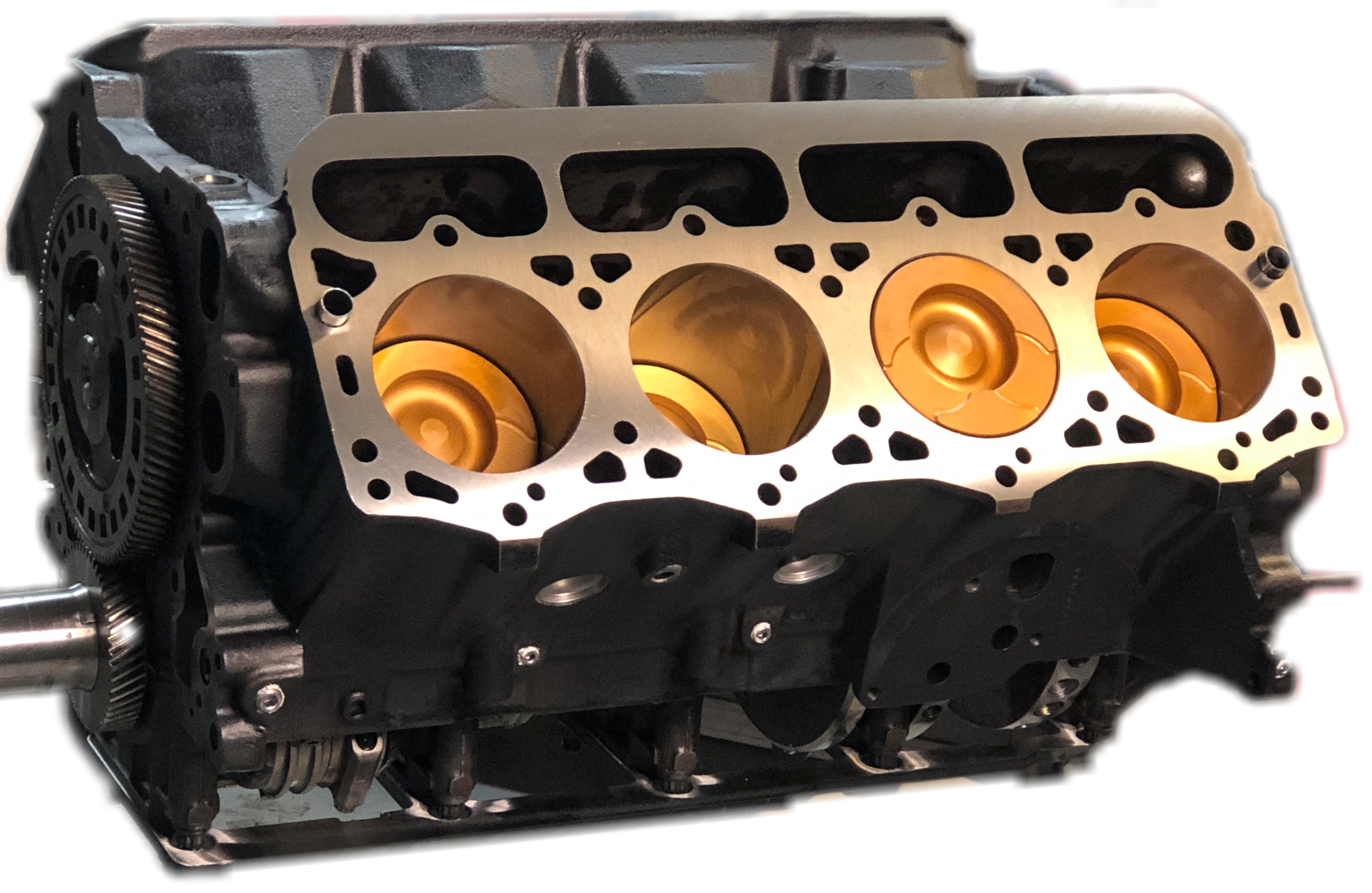

7.3L 1994.5-1997 Powerstroke Short Block Workhorse Ford Diesel Crate Engine Choate Performance

This 7.3L Ford Powerstroke Diesel Engine Short Block Build Includes:

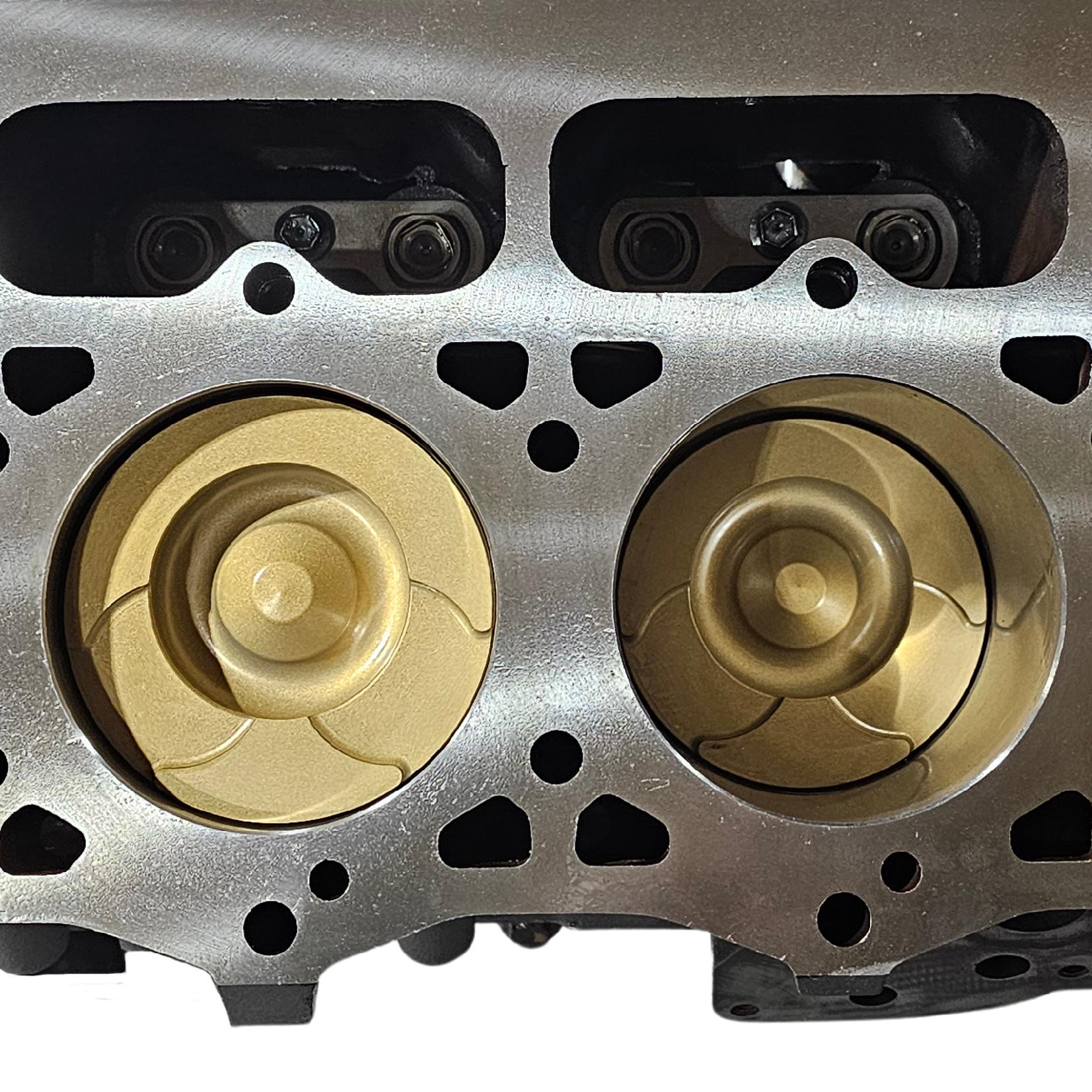

• Coated, Flycut, and Delipped pistons
• Stage 2 Camshaft
• Billet Flex plate
• Balanced and Matched Rotational Assembly
• 5 Year/100k Mile warranty
• Forged Connecting Rods
• New Harmonic Balancer
• New OE Lifters, Lifter Guides and OE Crank Flange Bolts
• New Rod Bearings
• New Main Bearings
• New Cam Bearings
• Billet Freeze Plugs
• New Oil Rail Plugs (4)

Build Features:

• Full CNC blue print machining, (bore, deck, hone and line honed).
• Blue print bored cylinder bores to a true 90 degrees from the crankshaft center line.
•  The Crankshaft is Polished and ground to .0005 concentricity or less.
• Diamond hone within .0002 inch for precise piston to cylinder bore clearances.
• Line honed the crankshaft bore housing to precisely align the crankshaft in the engine block.
• The block is bored back to the crankshaft center line.
• The piston diameter measured to the nearest .0001 inch matched to cylinder bores.
• The Cylinder block on this 7.3L Powerstroke Short Block will be surfaced to a finish of RA30 or lower. This is mandatory for proper sealing of a MLS Gasket.
• New HD Design Pistons .010-.040 over
• New Pistons, Rings, Pin Retainers weight matched prior to crank balancing.
• Upgraded Exhaust and Intake Valves
• Billet Freeze Plugs

CHOATE Engineering Performance Crate Engine Features :

The Daily Driver is built for dependability. For consistency and fuel mileage. It is backed with a much longer warranty than anything else you will find on the market.

Common Issues With The Ford Powerstroke 7.3L Block and Heads (and how we fix them):

•  The 7.3L was plagued with inferior valve and seat material from the factory. The original design used parent material for the seats. Consequently, they were known to crack from heat cycles.
• The valves of the 7.3 are commonly known to wear down well below the margins. With razor sharp edges which can fail leaving the piston to take on the remainder of the valve in the cylinder.
• We only use brand new valves that exceed OEM standards, which do not have this issue.
• By use of our extensive cleaning methods thru media blasting, furnaces, spray cabinets, hot tanks, and ultra sonic equipment, we have protected your investment.
• 2001-2003 year model 7.3L's came with Powdered Metal Rods. They were prone to failure around the 400 HP mark. These rods are only an issue at higher HP levels which is why we use forged rods for the Workhorse Model engines.

Optional Parts are not installed or covered by CHOATE. They are subject to the manufacturer's warranty.
