Rear 4 Link Suspension Kit

Description:

Launch Harder:

New CNC Fabrication Diesel Performance Bolt-On 4-Link Suspension Kit

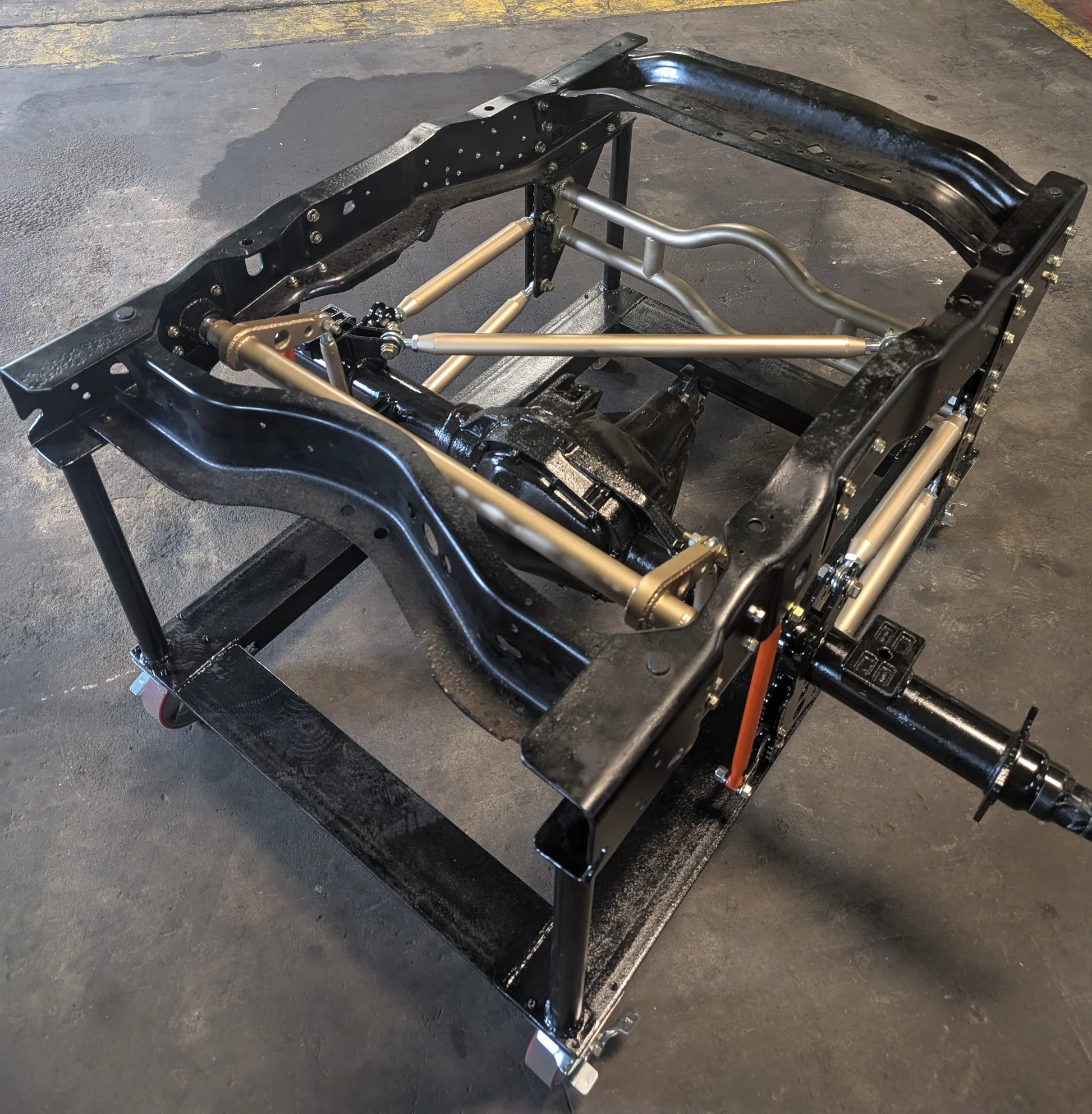

**Current assembled image displayed is not an exact representation of the kit you will receive. It is our prototype**

CNC Fabrication is now offering an almost complete bolt-on 4-link rear suspension kit. This version will not be welded or coated.

Take the guesswork out of trying to design your own 4-link suspension kit for your 99-07 Ford Powerstroke Superduty. When it comes to pushing the limits of high-horsepower diesel trucks at the drag strip, traction is everything. CNC Fabrication’s 4-link rear suspension is an instant upgrade to help your truck on the hole-shot along with a significant savings in weight. This near bolt-on 4-link kit utilizes some of the best parts and materials on the market.

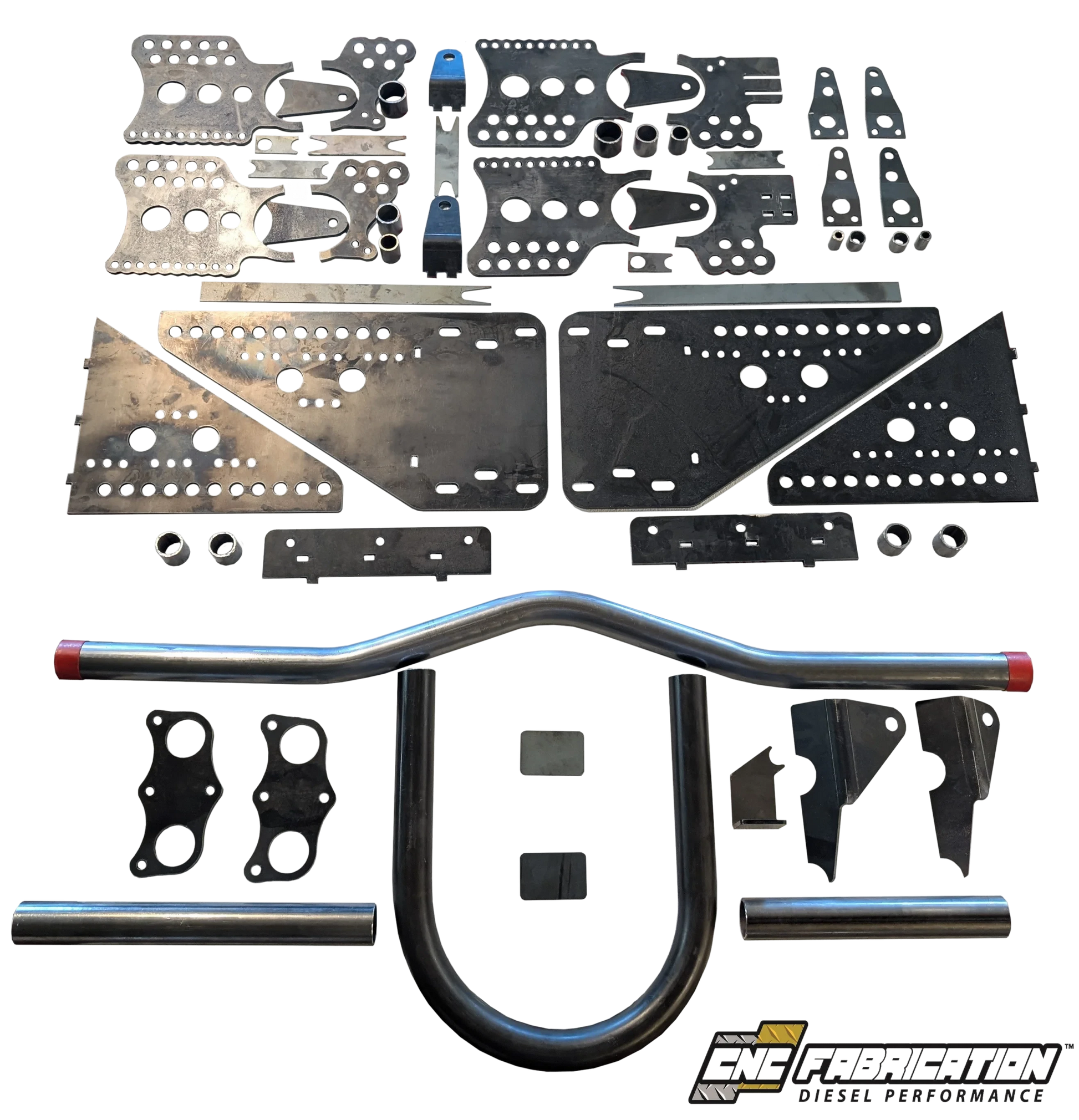

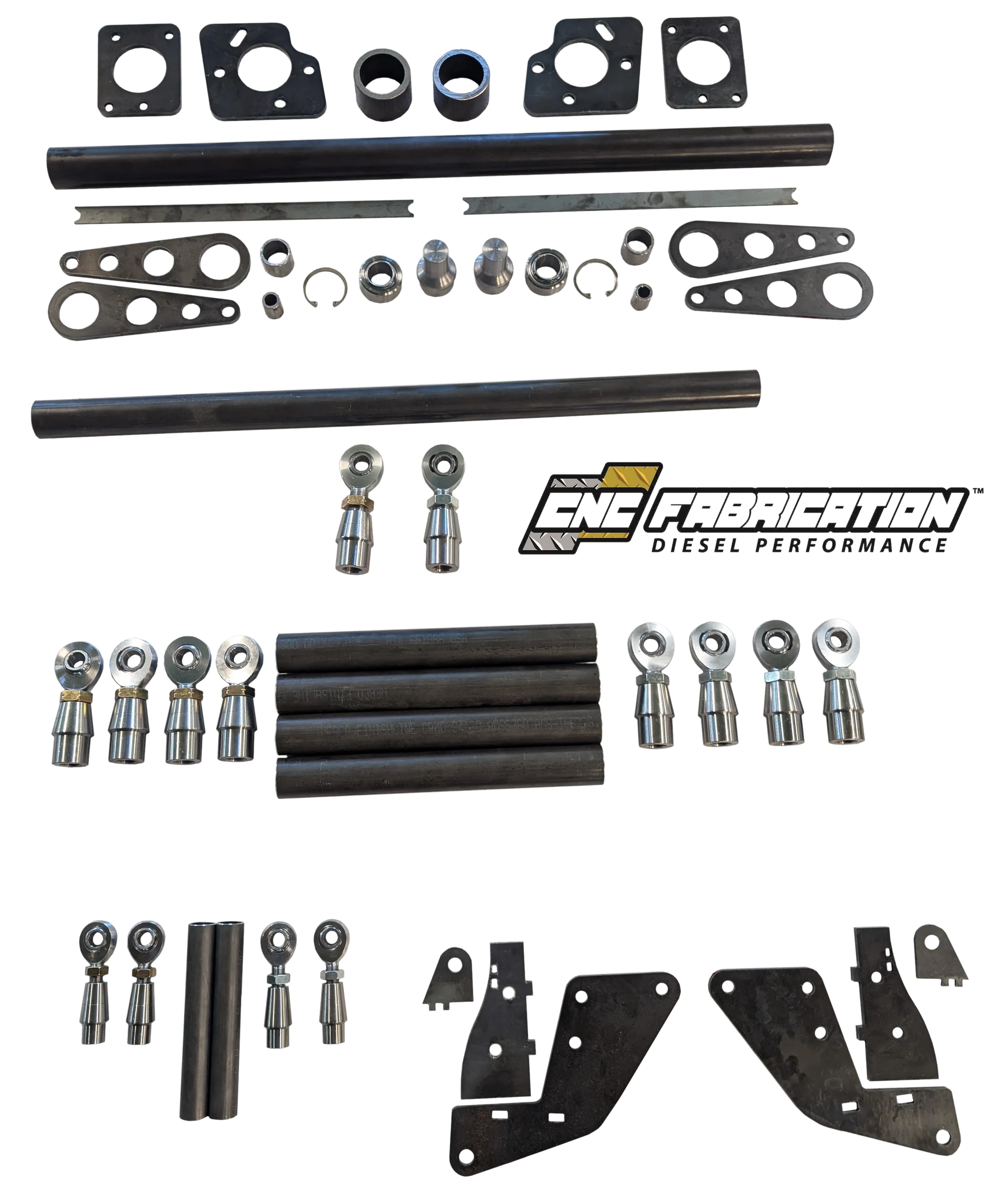

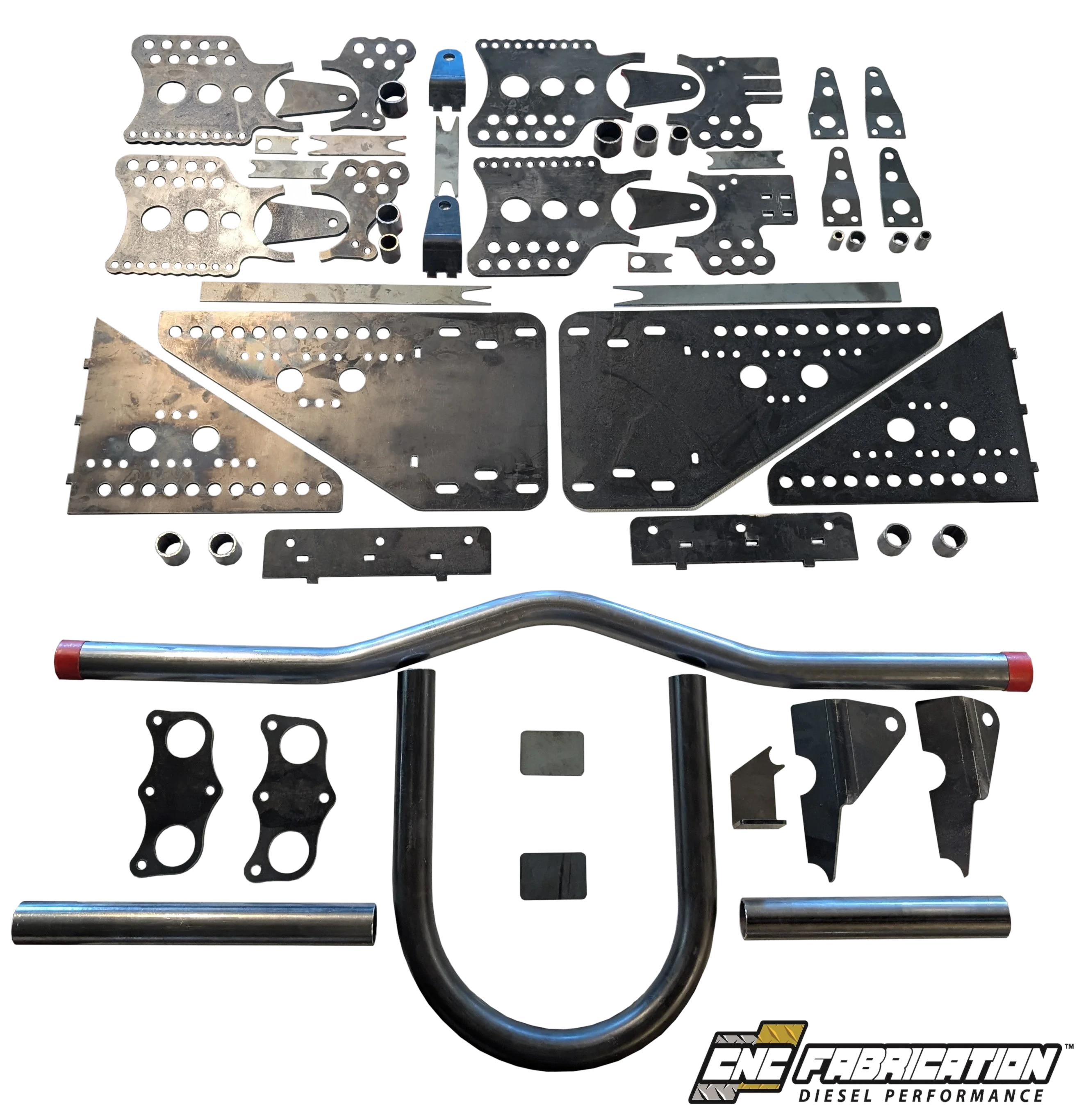

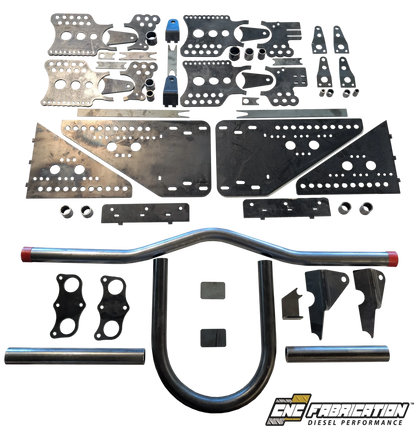

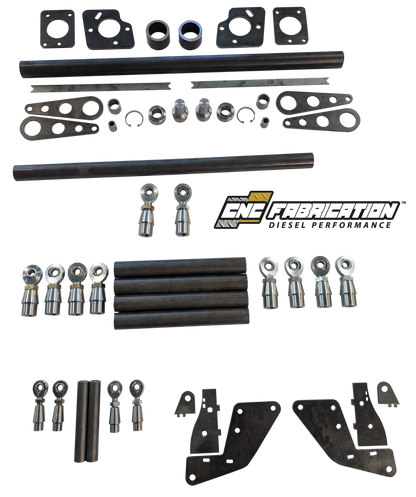

This kit replaces your factory leaf springs with a set of upper and lower control arms, a Panhard bar, shock mounts, and anti-roll bar assembly.  This suspension offers excellent control over rear axle movement and allows the suspension to be fine-tuned for maximum launch efficiency and traction. What does this mean, it means better 60-foot times, and consistent ET’s round-after-round to get you on the podium.

Axle wrap is all but eliminated via the 4-link bars and this prevents shock loads that can destroy driveshafts, ring and pinion gears, or worse.  A 4-link suspension allows for an adjustable instant center, which provides weight transfer control over where torque is applied throughout the suspension to improve traction.

Check out DieselArmy's new product feature about our kit >> DieselArmy Magazine. <<

Features:

  • 4130 Chromoly and DOM Tubing
  • 4130 Chromoly XM Series PTFE and Kevlar lined heim joint ends

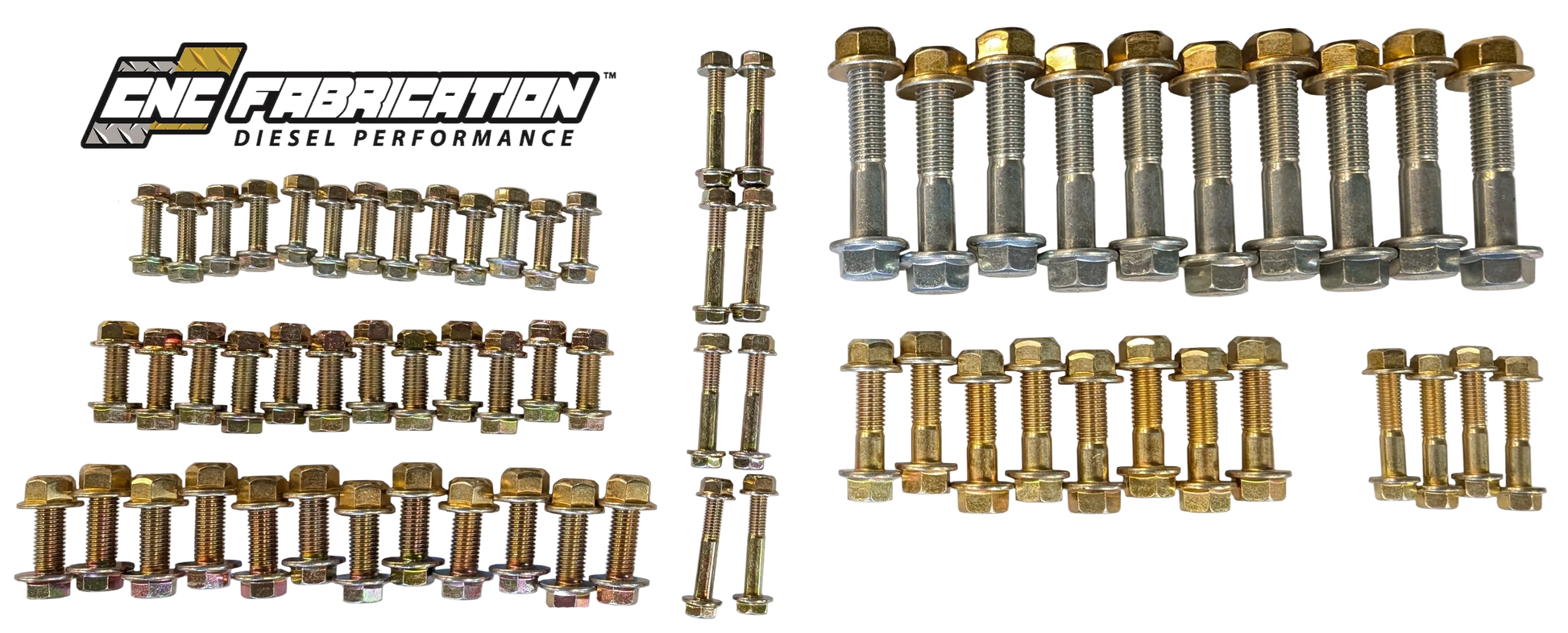

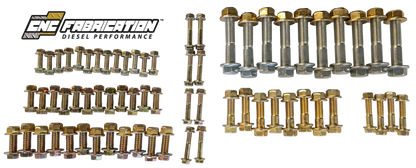

  • High Strength Flanged Fasteners
  • Precision Laser cut brackets
  • Eliminates Axle Wrap
  • Complete Installation instructions
  • Compatible with AFCO, QA1, Penske, and other 1/2" or larger eyelet Coilover Shocks

**Our site will charge shipping via UPS, but we will call you if there is a price difference for freight as this suspension kit will have to ship via freight on a pallet**
