Icon 23-25 Ford F-250/F-350 SD 4WD Diesel Stage 6 2.5in Suspension Lift System w/ Rad. Arms & Expans

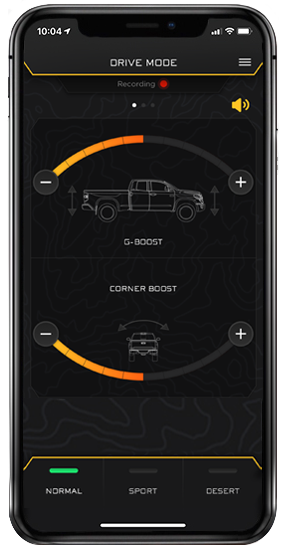

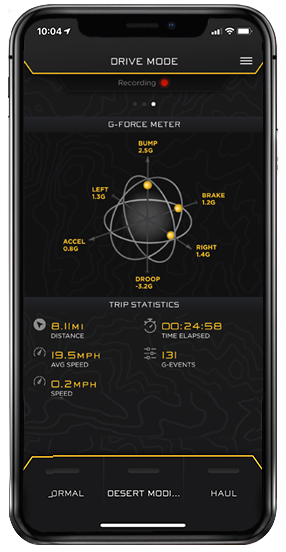

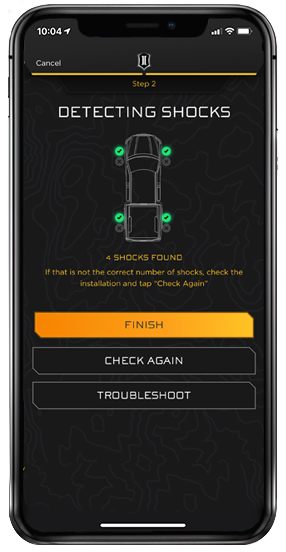

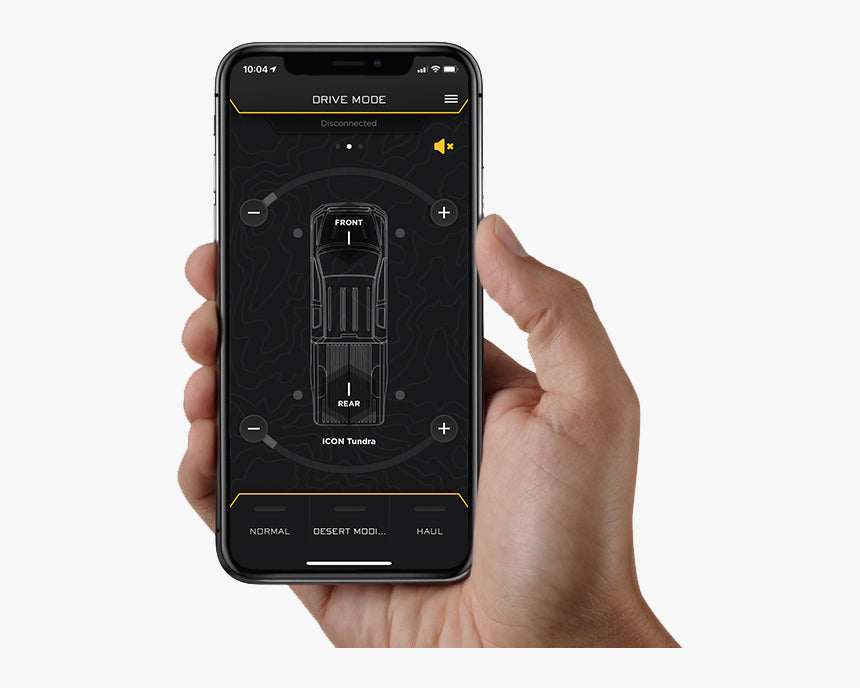

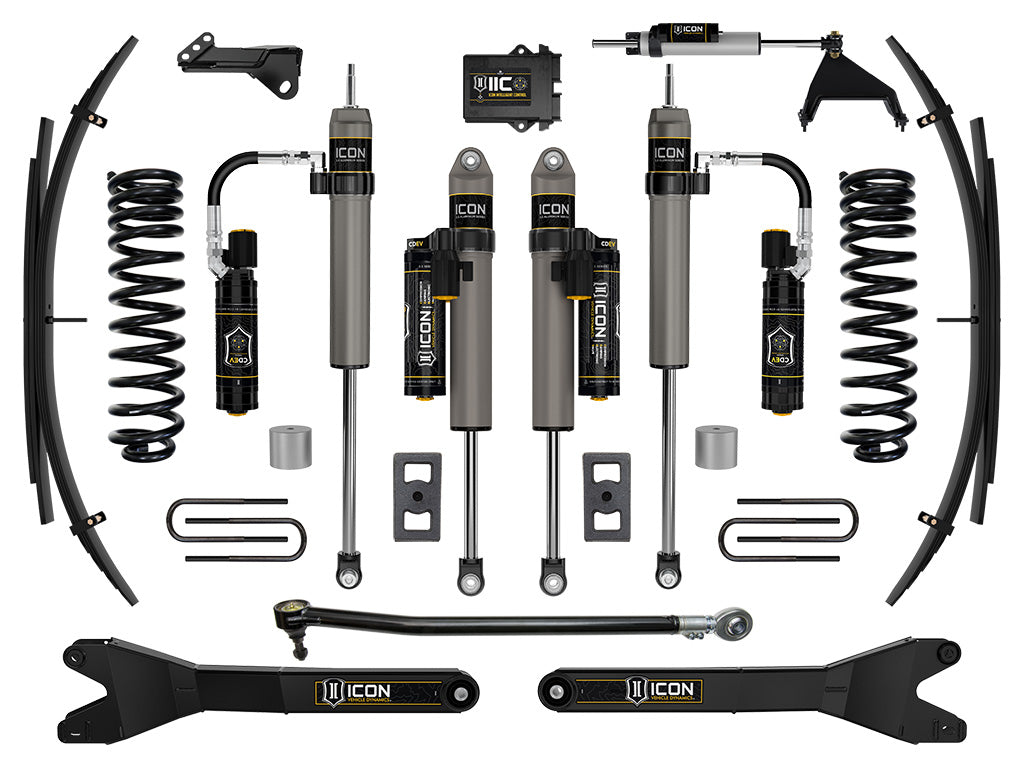

This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 6 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON's Stage 6 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, ICON 2.5" Centerline Steering Stabilizer, on-vehicle adjustable front track bar, bump steer correcting track bar bracket, fabricated radius arms, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.5 Aluminum Series CDEV remote reservoir front and CDEV piggyback reservoir rear shocks. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. This stage sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

ICON 2.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
• Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
• Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Track bar drop bracket reduces track bar angle and corrects bump steer geometry
• FK Rod End bearings provide extended longevity and minimal deflection
• Approximately 25% increased front wheel travel over stock
• Lifetime guarantee against coil spring breakage or sag
• Fits 2023-2025 F-250/F-350 4WD diesel applications
• Shocks are fully rebuildable and revalvable
