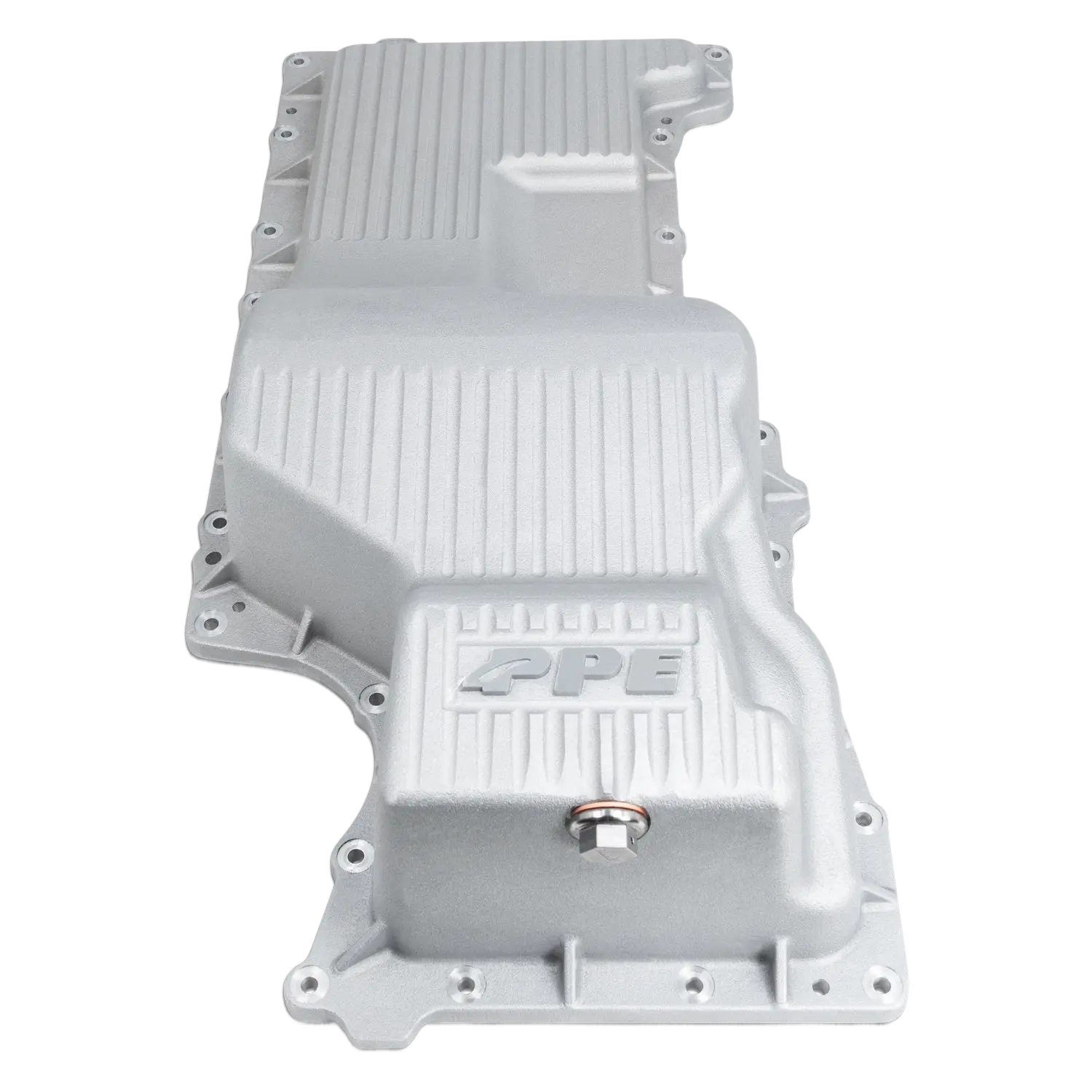

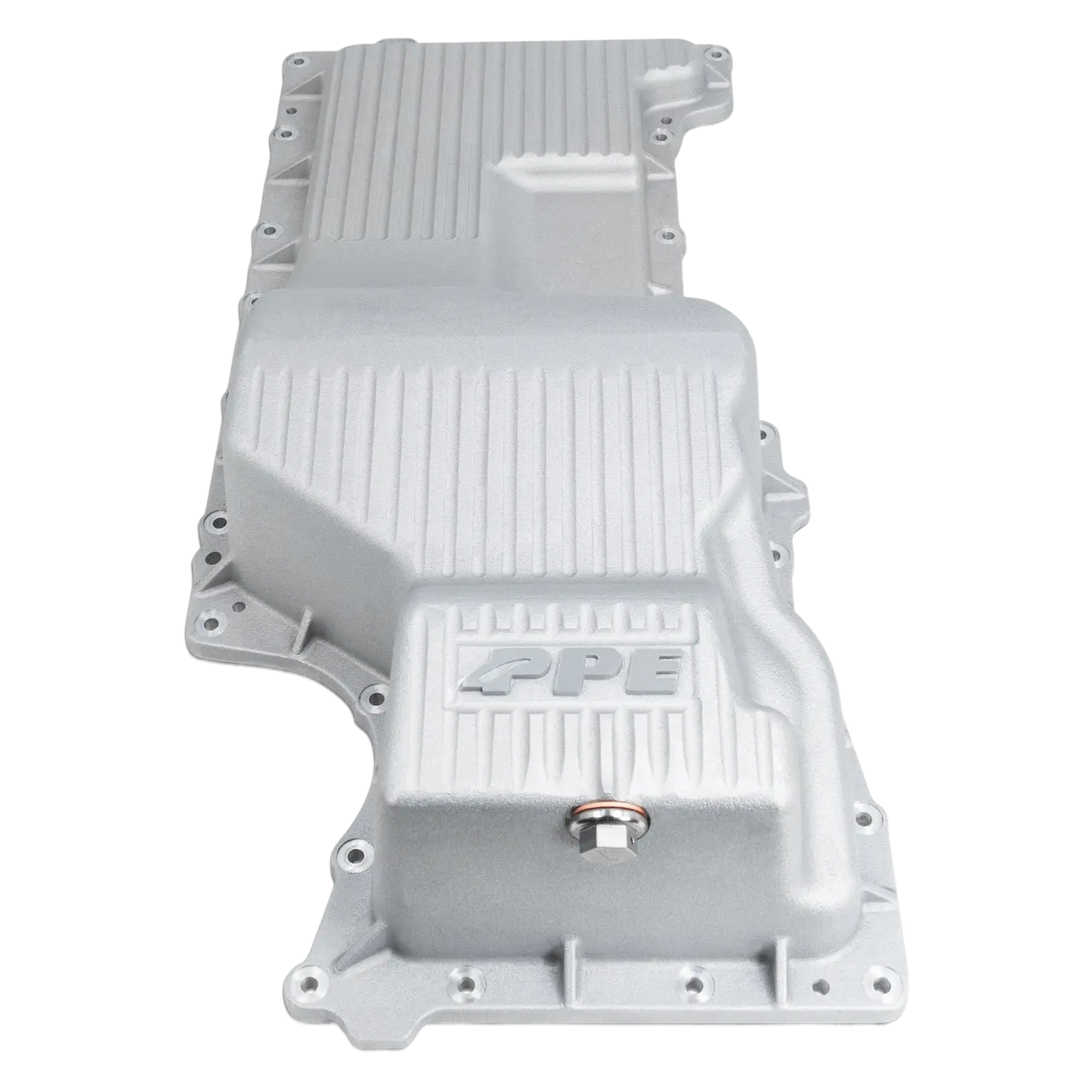

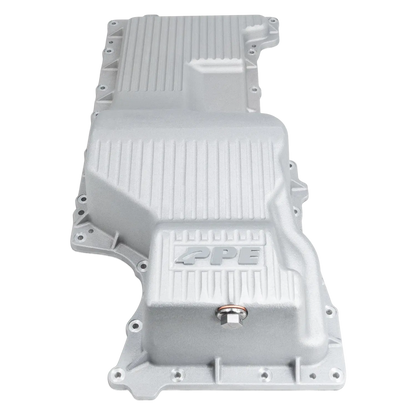

Heavy-Duty Deep Cast Aluminum Engine Oil Pan

Features & Details:

• High-strength, durable A356.0-T6 aluminum alloy
• Precision cast using permanent steel molds
• Increases oil capacity by 2 quarts
• Designed to achieve a complete oil drain
• Gussets provide extra support to flange and increase overall robustness
• Outer machined grooves increase the effective surface area and maximize thermal performance
• CNC machined inner flange grooves promote a complete seal
• High-power Neodymium magnet equipped hardened billet stainless steel drain plug with copper gasket and safety wire provision
• Tapped and plugged 1/8-inch NPT port for optional fluid temperature sensor
• Limited lifetime warranty

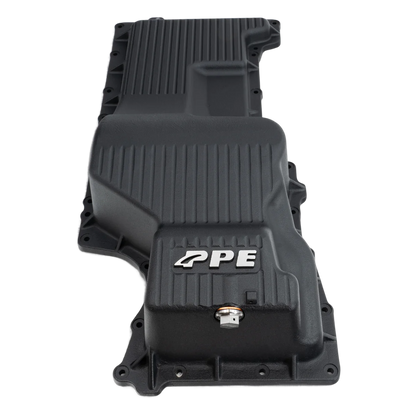

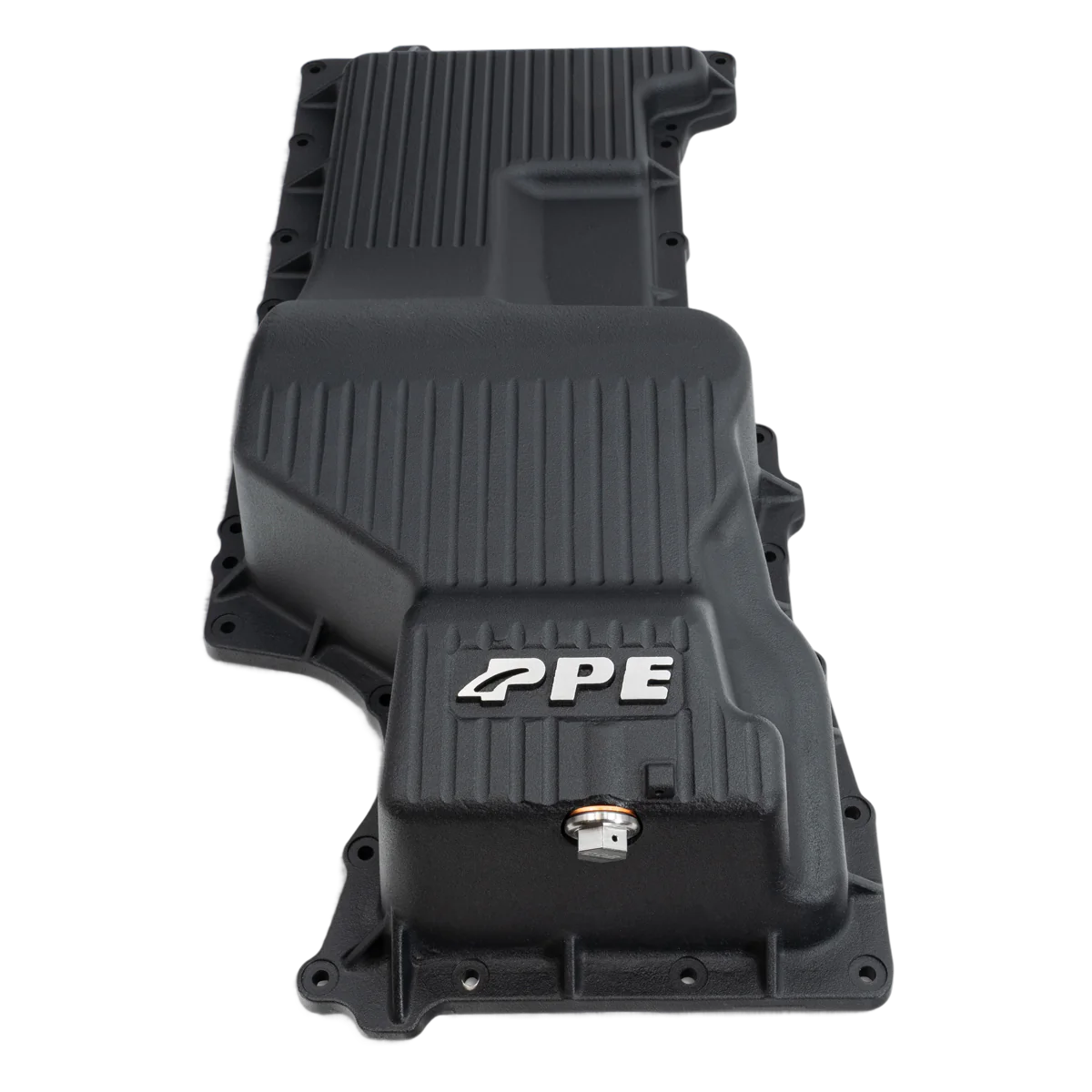

• Available in Raw and Black finishes

Description:

This new deep pan is cast from high-quality A356.0-T6 heat-treated aluminum alloy using permanent steel molds and holds an additional two quarts of oil. More fluid increases thermal stamina which helps promote longer service life. We’ve added machined grooves to the outer surface of the pan to increase the effective surface area and maximize thermal performance.

The factory drain plug port is located above the bottom of the pan and about half a quart of dirty oil remains which immediately contaminates your fresh oil with sludge and ferrous metal. PPE solves that filthy problem with a flat, angled bottom, and a drain plug port engineered below the bottom surface of the pan to ensure a complete drain.

A 1/8-inch NPT port is tapped and plugged into the side if you want to run an optional temperature sensor. We've also included a high-power Neodymium magnet equipped, billet, hardened stainless steel drain plug, This powerful plug pulls ferrous particles out of your oil before they damage your internals.

GM 3.0L Duramax Engine Oil Pan - Replaces GM #55506665

In our testing on the LM2, we observed an increase in oil capacity from 7 quarts with the OE GM oil pan (GM #55506665) and filter to 9 1/2 quarts with the PPE Heavy-Duty Deep Oil Pan and PPE Premium Oil Filter 114000650.

Recommendation Disclaimer
If using a copper washer SKU 114052002 on the drain plug, replace it with a new washer during each service.
If using a compound washer SKU 114052004, inspect the washer during each service and replace as needed.
