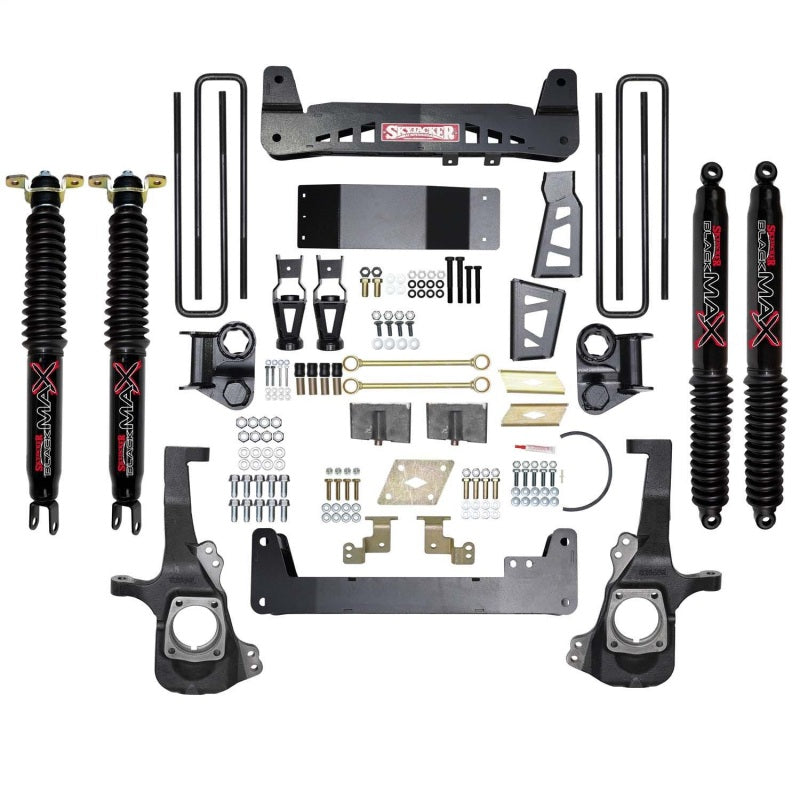

Skyjacker 20 GM 2500HD 6In KIT W/BLKMAX

Skyjacker has designed a dependable suspension that reinforces and strengthens your heavy-duty beauty's capabilities. Raise the suspension clearance of your 2500 HD or 3500HD to increase ride height to run 35-inch tires. Skyjacker's design will unleashed exceptional performance with uncompromised strength. Exacting engineered CNC machined ductile iron replacement steering knuckles preserve the OEM track width and maintain proper steering geometry through the travel cycle. Knuckles preserve CV extension and prevent CV axle overextension within the OEM tolerances. Aligns to OEM specifications and works properly with Electric Stability Control (ESC) system. The pair of sturdy front and rear drop crossmembers provides a solid mounting point for the OEM lower control arms. A differential skid plate tie the two crossmembers together to add vital diff protection. Two separate differential relocation brackets reposition and correct front CV axles and driveshaft angles. Skyjacker's raised torsion bar brackets align and lock into each OEM lower control arm by aligning hex portion of bracket with hex torsion bar mount. This bracket design raises the front torsion bar mount up to parallel the OEM torsion bar crossmember mount. Raised torsion bar brackets delivers a clean look with exceptional high ground clearance. This system integrates smoothly and functions perfectly with OEM suspension. Includes everything necessary for a complete front and rear lift. This all-inclusive kit also has front bump stop brackets, front and rear brake line relocation brackets, differential vent tube extension, front sway bar links and sway bar lowering brackets, cast ductile iron rear blocks with longer Grade 8 U-bolts and lock nuts. Front and rear damper capacity enhanced with Black MAX Shocks. Black MAX Shocks have specific valving and stroke for this application. Black MAX's Advanced Foam-Cell technology increases performance and style to deliver a smooth, comfortable ride.

20>GM 2500HD 6in.KIT W/BLKMAX

• Works Properly with Electronic Stability Control [ESC] System
• Front And Rear Crossmembers And Skid Plate - Rigid Sub-frame
• CNC Machined Ductile Iron Knuckles Preserve Oem Track Width
• No Cutting/No Grinding of OEM Differential Housing Required
• Precision Engineered To Maintain Proper Suspension Geometry
• Unleashed Exceptional Performance. Uncompromised Strength
• Black MAX Shock Has Vehicle Specific Multi-Stage Valving
• Black MAX Twin-Tube Foam-Cell Hydraulic Shock With Boot
• Black MAX Engineered With Advanced Foam-cell Technology
• Knuckles Keep Same Steering Geometry And Turning Radius
• Two Separate Diff Brackets Reposition/Correct CV Angles
• Raised Torsion Bar Brackets Align And Lock Into OEM LCA
