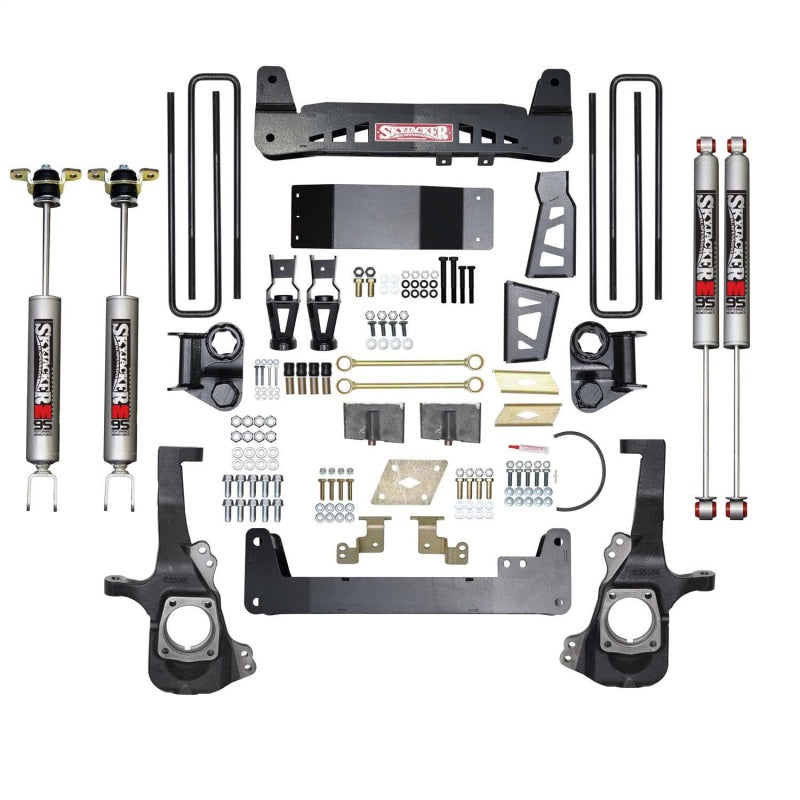

Skyjacker 20 GM 2500HD 6In KIT W/M95

Skyjacker has designed a dependable suspension that reinforces and strengthens your heavy-duty beauty's capabilities. Skyjacker's configuration will unleashed exceptional performance with uncompromised strength. Increase ride height to run up to 35-inch tires. Exacting engineered CNC machined ductile iron replacement steering knuckles preserve the OEM track width and maintain proper steering geometry through the travel cycle. Knuckles preserve CV extension and prevent CV axle overextension within the OEM tolerances. Aligns to OEM specifications and works properly with Electric Stability Control (ESC) system.The pair of sturdy front and rear drop crossmembers provides a solid mounting point for the OEM lower control arms. A differential skid plate tie the two crossmembers together to add vital diff protection. Two separate differential relocation brackets reposition and correct front CV axles and driveshaft angles. Skyjacker's raised torsion bar brackets align and lock into each OEM lower control arm by aligning hex portion of bracket with hex torsion bar mount. This bracket design raises the front torsion bar mount up to parallel the OEM torsion bar crossmember mount. Raised torsion bar brackets delivers a clean look with exceptional high ground clearance. This system integrates smoothly and functions perfectly with OEM suspension. This all-inclusive kit also has front bump stop brackets, front and rear brake line relocation brackets, differential vent tube extension, front sway bar links and sway bar lowering brackets, cast ductile iron rear blocks with longer Grade 8 U-bolts and lock nuts. Front and rear damper capacity enhanced with M95 Monotube Shocks. M95 Shocks have specific valving and stroke for this application. The high-pressure nitrogen gas and IFP technology combine to deliver a rapid response. A rapid response to terrain provides consistent performance with superior handling.

20>GM 2500HD 6in. KIT W/M95

• Works Properly with Electronic Stability Control [ESC] System
• M95 Monotube Gas Charged/Internal Floating Piston Technology
• Front And Rear Crossmembers And Skid Plate - Rigid Sub-frame
• CNC Machined Ductile Iron Knuckles Preserve Oem Track Width
• No Cutting/No Grinding of OEM Differential Housing Required
• Precision Engineered To Maintain Proper Suspension Geometry
• M95 Monotube Has Specific Valving/Stroke For This Package
• M95 Monotube IFP Technology Provides Rapid Reaction Time
• Unleashed Exceptional Performance/Uncompromised Strength
• Knuckles Keep Same Steering Geometry And Turning Radius
• Two Separate Diff Brackets Reposition/Correct CV Angles
• Raised Torsion Bar Brackets Align And Lock Into OEM LCA
