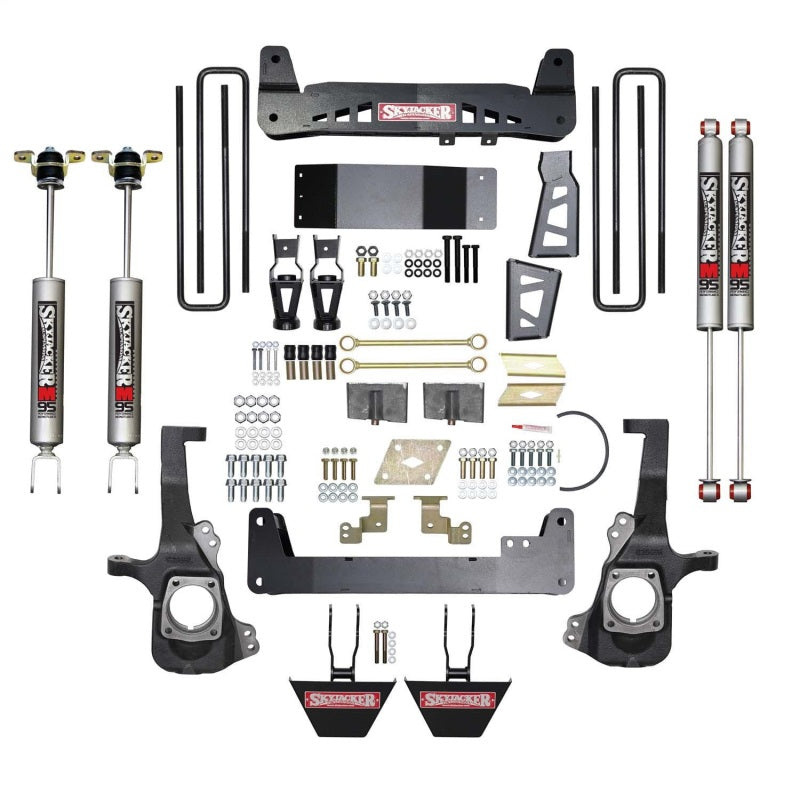

Skyjacker 20 GM 2500HD 6In KIT W/M95

Skyjacker has designed a dependable suspension that reinforces and strengthens your heavy-duty beauty's capabilities. Raising the suspension clearance of your 2500 HD or 3500HD increases ride height to run up to 35-inch tires. Skyjacker's design will unleashed exceptional performance with uncompromised strength. Exacting engineered CNC machined ductile iron replacement steering knuckles preserve the OEM track width and maintain proper steering geometry through the travel cycle. Knuckles preserve CV extension and prevent CV axle overextension within the OEM tolerances. Aligns to OEM specifications and works properly with Electric Stability Control (ESC) system. The pair of sturdy front and rear drop crossmembers provides a solid mounting point for the OEM lower control arms. A differential skid plate tie the two crossmembers together to create a rigid sub-frame and added protection for vital steering and driveline components. Two separate differential relocation brackets reposition and correct front CV axles and driveshaft angles. Skyjacker's torsion bar drop brackets reposition OEM torsion bar crossmember down to parallel the OEM lower control arm mounts. Torsion bar drop brackets are precision engineered to maintain proper suspension geometry. This system integrates smoothly and functions perfectly with OEM suspension. Includes everything necessary for a complete front and rear lift. This all-inclusive kit also has front bump stop brackets, front and rear brake line relocation brackets, differential vent tube extension, front sway bar links and sway bar lowering brackets, cast ductile iron rear blocks with longer Grade 8 U-bolts and lock nuts. Front and rear damper capacity enhanced with M95 Monotube Shocks. M95 Shocks have specific valving and stroke for this application. The high-pressure nitrogen gas and IFP technology combine to deliver a rapid response. A rapid response to terrain provides consistent performance with superior handling.

20>GM 2500HD 6in. KIT W/M95

• Works Properly with Electronic Stability Control [ESC] System
• M95 Monotube Gas Charged/Internal Floating Piston Technology
• Front And Rear Crossmembers And Skid Plate - Rigid Sub-frame
• CNC Machined Ductile Iron Knuckles Preserve Oem Track Width
• No Cutting/No Grinding of OEM Differential Housing Required
• Precision Engineered To Maintain Proper Suspension Geometry
• Drop Torsion Bar Brackets Maintain OEM Suspension Geometry
• M95 Monotube Has Specific Valving/Stroke For This Package
• M95 Monotube IFP Technology Provides Rapid Reaction Time
• Unleashed Exceptional Performance/Uncompromised Strength
• Knuckles Keep Same Steering Geometry And Turning Radius
• Two Separate Diff Brackets Reposition/Correct CV Angles
